51000 (24-G) - Gravely Lawn Tractor HYDRAULIC SYSTEM Parts Diagram

Lawn Tractor

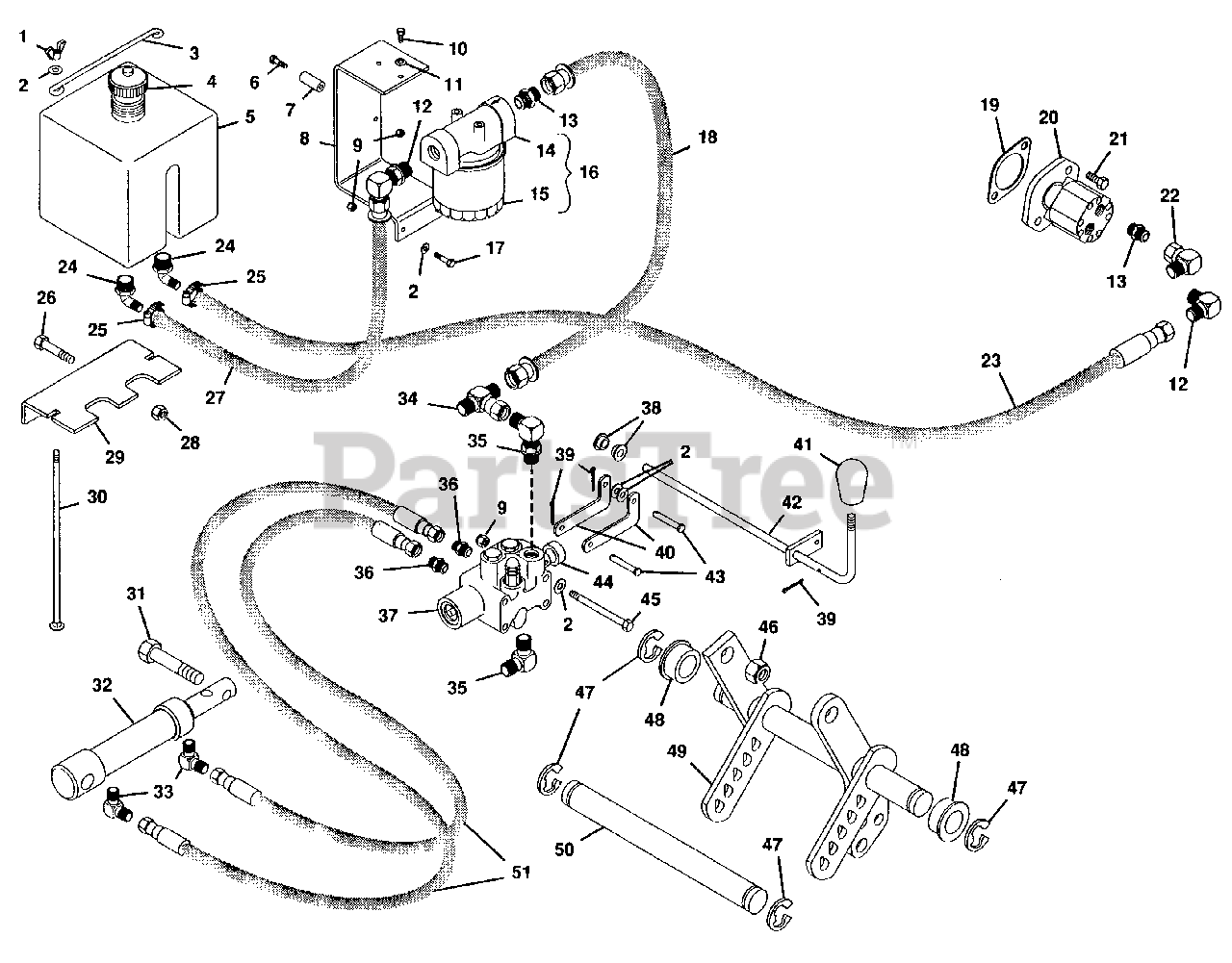

HYDRAULIC SYSTEM Parts Diagram

  • Title

1

Gravely 010413

NUT-LK WING .250-20 YWZC
(Superseded to 06537500)

$5.49

$

In Stock, Qty 20+

0

2

Gravely 120392

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 045870

ROD,OIL TANK HOLD-DOWN
(Superseded to 08656700)

$

$

Not available

4

Gravely 044877

CAP,TANK
(Superseded to 08826200)

$22.99

$

Usually ships in 4-12 days

0

5

Gravely 045270

KIT, HYDRAULIC TANK
(Superseded to 58701500)

$

$

Not available

6

Gravely 180042

BLT-HEX .25-20X1.75 GR5 YWZC
(Superseded to 05964700)

$2.49

$

In Stock, Qty 12

0

7

Gravely 050985

BUSH.,TANK SUPPORT
(Superseded to 08735900)

$

$

Not available

8

Gravely 050964

BRKT,OIL FILTER MTG.
(Superseded to 08788300)

$

$

Not available

9

Gravely 419454

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

10

Gravely 180018

BLT-HEX .25-20X.63
(Superseded to 05932000)

$2.49

$

Usually ships in 4-12 days

0

11

Gravely 120380

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 9

0

12

Gravely 050961

ADPTR-HYD EL 3/4 "O" TO 3/4
(Superseded to 07018200)

$7.49

$

Usually ships in 4-12 days

0

13

Gravely 023206

FTG-ADPTR (0503-8-6)
(Superseded to 07021400)

$28.99

$

Usually ships in 4-12 days

0

14

Gravely 050967

BASE,FILTER
(Superseded to 08788600)

$

$

Not available

15

Gravely 050968

ELEMENT
(Superseded to 08841800)

$

$

Not available

16

Gravely 050966

FILTER,SPIN-ON LUBE
(Superseded to 08788500)

$

$

Not available

17

Gravely 180020

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

18

Gravely 050970

HOSE,HYD VALVE TO FILTER
(Superseded to 08788800)

$

$

Not available

19

Gravely 018422

GSKT,COVER PLATE
(Superseded to 08702700)

$16.99

$

In Stock, only 1 left!

0

20

Gravely 050960

PUMP,HYDRAULIC 24-G
(Superseded to 08788100)

$

$

Not available

21

Gravely 180120

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 14

0

22

Gravely 018818

ADPT 3903-6-6
(Superseded to 08901000)

Note: (P-H #3903-6-6)

$21.99

$

Usually ships in 4-12 days

0

23

Gravely 046118

HOSE,TANK TO PUMP
(Superseded to 08776300)

$

$

Not available

24

Gravely 046116

FTG-ELBOW .50X.50
(Superseded to 07019800)

$

$

Not available

25

Gravely 021247

CLAMP,.88 DIA. HOSE
(Superseded to 06923500)

$2.49

$

In Stock, Qty 20+

0

26

Gravely 180077

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

27

Gravely 050969

HOSE,OIL FILTER TO TANK
(Superseded to 08788700)

$

$

Not available

28

Gravely 419455

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

29

Gravely 050963

SPRT,HYD OIL TANK
(Superseded to 08788200)

$

$

Not available

30

Gravely 126932

BLT-RDHDSQNK .25-20X8.00
(Superseded to 06218800)

$

$

Not available

31

Gravely 180181

BLT-HEX .50-13X2.00 GR5 YWZC
(Superseded to 05901929)

$3.49

$

In Stock, only 1 left!

0

32

Gravely 031284

CYL,HYD.
(Superseded to 08727500)

$

$

Not available

33

Gravely 018826

ADPT 2503-4-4
(Superseded to 08800700)

Note: (P-H #2503-4-4)

$25.99

$

Usually ships in 4-12 days

0

34

Gravely 046117

FTG ADPTR (393T -6-6)
(Superseded to 07019900)

Note: (Used Only On Model(s): 6600-6-6).

$

$

Not available

35

Gravely 018828

FTG, 90 9/16 MOR X 9/16 MJIC
(Superseded to 00313270)

Note: (P-H #2503-6-6)

$9.99

$

Usually ships in 4-12 days

0

36

Gravely 021286

ADPT 0503-4-4
(Superseded to 08801500)

Note: (P-H #0503-4-4)

$6.49

$

Usually ships in 4-12 days

0

37

Gravely 018825

VLV,HYDRAULIC
(Superseded to 08901100)

$

$

Not available

38

Gravely 047193

BSHG-FLG .520X.635X.375X.750 N
(Superseded to 05517800)

$

$

Not available

39

Gravely 121222

PIN-CTR .09X.75 EXTPRSQCT YWZ
(Superseded to 06706900)

$0.99

$

In Stock, only 2 left!

0

40

Gravely 041237

LIFT LINK
(Superseded to 09065000)

$8.49

$

Usually ships in 4-12 days

0

41

Gravely 032659

KNOB,PTO
(Superseded to 07522900)

$22.99

$

Usually ships in 4-12 days

0

42

Gravely 047191

WLDMT,HYD VALVE ROD
(Superseded to 08780100)

$

$

Not available

43

Gravely 040970

PIN-CLEV .189X1.0
(Superseded to 06810100)

$2.99

$

Usually ships in 4-12 days

0

44

Gravely 048587

SPACER .700X1.00X.31
(Superseded to 08984500)

$

$

Not available

45

Gravely 180050

BLT-HEX .25-20X2.75 GR5 YWZC
(Superseded to 05969900)

$

$

Not available

46

Gravely 414074

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

47

Gravely 011112

RG-RTNG-EXT .835X.056
(Superseded to 05716000)

$3.99

$

Usually ships in 4-12 days

0

48

Gravely 018355

BSHG-FLG1.020X1.385X.75X1.75NY
(Superseded to 05520100)

$11.99

$

In Stock, Qty 20+

0

49

Gravely 045859

WLDMT,LIFT LVR SHAFT
(Superseded to 08771600)

$

$

Not available

50

Gravely 045860

SHFT,HYD CYL
(Superseded to 08771700)

$

$

Not available

51

Gravely 018845

HOSE,HYD 14.5 LG
(Superseded to 08709000)

$35.99

$

Usually ships in 4-12 days

0

NS

Gravely 047691

SEALANT,PLASTIC THREAD

$

$

Not available
