51060 - Toro 25" Big Red Lawn Tractor (SN: 000001 - 099999) (1970) Engine No. V60-70053d (impulse Start) And No. V60-70054d (cont.) Parts Diagram

25" Big Red Lawn Tractor

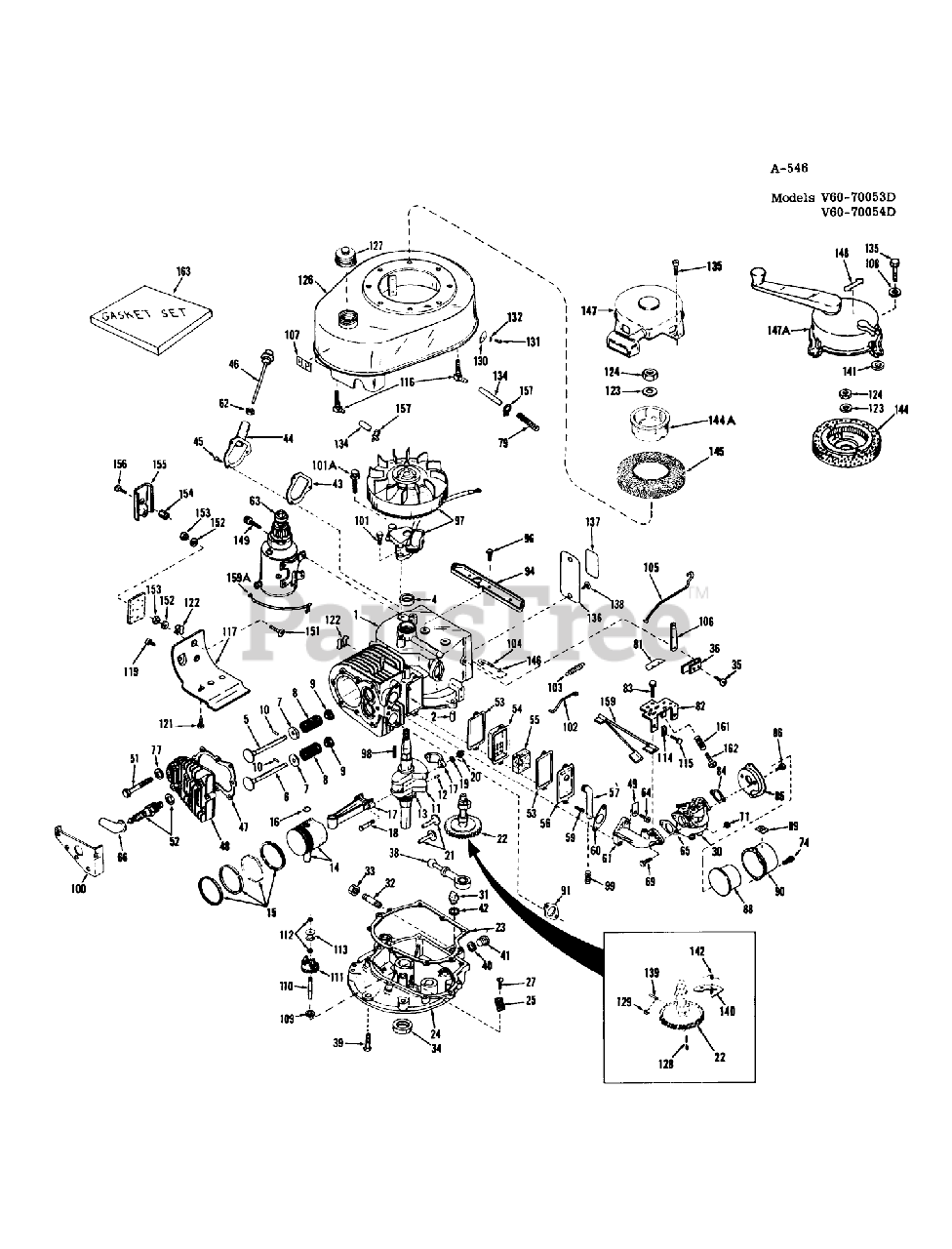

Engine No. V60-70053d (impulse Start) And No. V60-70054d (cont.) Parts Diagram

  • Title

1

Toro 31536A

Cylinder Assy.(Incl. Nos. 2 4)

$

$

Currently unavailable

2

Toro 27652

Pin-Dowel

$

$

Currently unavailable

4

Toro 27876B

Seal, Oil

Note: Indicates items included in Gasket Set part No. 31372A.

$

$

Currently unavailable

5

Toro 27877

33154A,55A,60A W/FO

$3.23

$

Usually ships in 3-6 days

0

5

Toro 27879

Valve, Intake (1/32" oversize) (Incl. No. 9)

$

$

Currently unavailable

6

Toro 27878

Valve, Exhaust (Standard)

$

$

Currently unavailable

6

Toro 27880

Valve, Exhaust (1/32"over-size) (Incl. No. 9)
(Superseded to 704573)

$

$

Not available

7

Toro 27882

Cap-Spring, Valve

$

$

Currently unavailable

8

Toro 27881

Spring-Valve

$

$

Currently unavailable

9

Toro 27883

Cap, Lower valve spring
(Superseded to 742313)

$

$

Not available

9

Toro 30964

Cap, Lower Valve Spring (1/32" oversize)

$

$

Currently unavailable

10

Toro 20810

Pin, Valve spring retaining

$

$

Currently unavailable

11

Toro 30900

Crankshaft Assy. (Incl. Nos. 12 13)

$

$

Currently unavailable

12

Toro 29783

Pin, Groove

$

$

Currently unavailable

13

Toro 27884

Gear-Crankshaft

$

$

Currently unavailable

14

Toro 30662

Piston Pin Assy., Std., (Incl. 2 of No. 16)

$

$

Currently unavailable

14

Toro 30663

Piston Pin Assy., .010 oversize (Incl. 2 of No. 16)

$

$

Currently unavailable

14

Toro 30664

Piston Pin Assy., .020 oversize (Incl. 2 of No. 16)

$

$

Currently unavailable

15

Toro 28935

Ring Set (Standard)

$

$

Currently unavailable

15

Toro 28936

Ring Set (.010 Oversize)

$

$

Currently unavailable

15

Toro 28937

Ring Set (.020 Oversize)

$

$

Currently unavailable

16

Toro 27888

See Supercession: 702895
(Superseded to 702895)

$

$

Not available

17

Toro 30949

Rod Assy., Connecting (Incl. Nos. 18, 19 20)(Model V60-70073G only)

$

$

Currently unavailable

18

Toro 30682

Bolt, Connecting Rod

$

$

Currently unavailable

19

Toro 26073

Washer

$

$

Currently unavailable

20

Toro 28264

Nut

$

$

Currently unavailable

21

Toro 27893

Lifter Valve

$

$

Currently unavailable

22

Toro 32114

Screw

$

$

Currently unavailable

23

Toro 30684

Gasket-Cover, Cylinder

Note: Indicates items included in Gasket Set part No. 31372A.

$

$

Currently unavailable

24

Toro 31552B

Flange Assy., Mounting (Incl. Nos. 25, 27, 30, 34, 37 110)

$

$

Currently unavailable

25

Toro 31355

Screen-Oil Filter

$

$

Currently unavailable

27

Toro 29117

Screw

$

$

Currently unavailable

30

Toro 631101

Carburetor

$

$

Currently unavailable

31

Toro 27625

Plug-Fill, Oil
(Superseded to 741498)

$

$

Not available

32

Toro 289-11

U-Bolt

$

$

Currently unavailable

33

Toro 30969

Cap-Pipe

$

$

Currently unavailable

34

Toro 27897

Seal-Oil

Note: Indicates items included in Gasket Set part No. 31372A.

$

$

Currently unavailable

35

Toro 650548

Screw

$

$

Currently unavailable

36

Toro 31335

Clamp-Lever, Governor

$

$

Currently unavailable

38

Toro 31356

Pump, Oil

$

$

Currently unavailable

39

Toro 650488

Screw (1/4-20 x 1-1/4)

$

$

Currently unavailable

40

Toro 28833

Gasket-Oil Drain

Note: Indicates items included in Gasket Set part No. 31372A.

$

$

Currently unavailable

41

Toro 30572

Plug, Drain

$

$

Currently unavailable

42

Toro 29673

Gasket

$

$

Currently unavailable

43

Toro 28747

Gasket, Filler tube

$

$

Currently unavailable

44

Toro 29759

Tube, Oil Filler

$

$

Currently unavailable

45

Toro 28749

Screw

$

$

Currently unavailable

46

Toro 29760

Dipstick, Oil (Incl. No. 62)

$

$

Currently unavailable

47

Toro 28938B

Gasket-Head, Cylinder

Note: Indicates items included in Gasket Set part No. 31372A.

$

$

Currently unavailable

48

Toro 30938A

CYLINDER HEAD

$

$

Currently unavailable

49

Toro 31560

Clip, Fuel Line

$

$

Currently unavailable

51

Toro 28261

Screw

$

$

Currently unavailable

52

Toro 21943

SPARK PLUG

$

$

Currently unavailable

53

Toro 27896

Gasket-Breather

Note: Indicates items included in Gasket Set part No. 31372A.

$

$

Currently unavailable

54

Toro 28423

Body-Breather
(Superseded to 704585)

$37.99

$

Usually ships in 3-6 days

0

55

Toro 28424

Element-Breather

$

$

Currently unavailable

56

Toro 28425

Cover-Valve

$

$

Currently unavailable

57

Toro 27627

Tube-Breather

$

$

Currently unavailable

59

Toro 650128

Screw

$

$

Currently unavailable

60

Toro 27915

Gasket-Intake

Note: Indicates items included in Gasket Set part No. 31372A.

$

$

Currently unavailable

61

Toro 31358

Pipe, Intake

$

$

Not available

62

Toro 29673

Gasket

Note: Indicates items included in Gasket Set part No. 31372A.

$

$

Currently unavailable

63

Toro 29965

Motor, Starter

$

$

Currently unavailable

64

Toro 650378

Screw (T-30, 5/16-18x1-3/32)

$

$

Currently unavailable

65

Toro 26756

Gasket

Note: Indicates items included in Gasket Set part No. 31372A.

$

$

Currently unavailable

66

Toro 27276

51005 GIL.ROTARY TI

$3.23

$

Usually ships in 3-6 days

0

69

Toro 6201

See Supercession: 111-1250
(Superseded to 111-1250)

$

$

Not available

71

Toro 29752

Nut and Lock Washer (1/4-28)

$

$

Currently unavailable

74

Toro 650152

Screw

$

$

Currently unavailable

77

Toro 26073

Washer

$

$

Currently unavailable

79

Toro 28819

Spring, Coil

$

$

Currently unavailable

81

Toro 31495

Decal
(Superseded to 703163)

$362.99

$

Usually ships in 3-6 days

0

81

Toro 31514

Decal, Speed control

$

$

Currently unavailable

82

Toro 31736

Control Assy., Speed

$

$

Currently unavailable

83

Toro 30200

Screw (10-24 x 9/16)

$

$

Currently unavailable

84

Toro 27272

Gasket

Note: Indicates items included in Gasket Set part No. 31372A.

$

$

Currently unavailable

85

Toro 31691

Bracket

$

$

Currently unavailable

86

Toro 28820

Screw (10-32 x 1/2)

$

$

Currently unavailable

88

Toro 31700

AIRCLEANER
(Superseded to 704629)

$

$

Not available

89

Toro 31871

DECAL, AIRCLEANER

$

$

Currently unavailable

90

Toro 31692

Body

$

$

Currently unavailable

91

Toro 27930

Gasket Exhaust

Note: Indicates items included in Gasket Set part No. 31372A.

$

$

Currently unavailable

94

Toro 28738

Bracket, Blower Housing (Incl. Nos. 131)

$

$

Currently unavailable

96

Toro 650561

Screw (1/4-20x19/32)

$

$

Currently unavailable

97

Toro 610689

Magneto

$

$

Currently unavailable

97

Toro 610681

Magneto, Tecumseh Alternator (Use with Model V60-70054D only)

$

$

Not available

98

Toro 30884

Key, Flywheel

$

$

Currently unavailable

99

Toro 31778

Spring, Coil

$

$

Currently unavailable

100

Toro 30939

Cover, Cylinder head

$

$

Currently unavailable

101

Toro 650489

Screw

$

$

Currently unavailable

101A

Toro 650516

Screw, Hex Hd. Cap, Sems

$

$

Currently unavailable

102

Toro 31362

Link, Governor spring

$

$

Currently unavailable

103

Toro 31361

Spring Governor

$

$

Currently unavailable

104

Toro 30669

Rod, Governor (Incl. Nos. 146)

$

$

Currently unavailable

105

Toro 31823

Link Governor
(Superseded to 742364)

$

$

Not available

106

Toro 31357

Lever-Governor

$

$

Currently unavailable

107

Toro 32173

Decal, H. P.

$

$

Currently unavailable

108

Toro 650168

Washer

$

$

Currently unavailable

109

Toro 31707

Spacer

$

$

Currently unavailable

110

Toro 30668

Shaft, Governor

$

$

Currently unavailable

111

Toro 30591

Governor Gear ASM

$

$

Currently unavailable

112

Toro 29193

Ring-Retaining

$

$

Currently unavailable

113

Toro 30588A

Spool-Governor

$

$

Currently unavailable

114

Toro 27793

Conduit

$

$

Currently unavailable

115

Toro 28942

Screw (10-32 x 3/8)

$

$

Currently unavailable

116

Toro 28584

Fitting, Fuel Strainer

$

$

Currently unavailable

117

Toro 27928

Extension, Blower Housing

$

$

Currently unavailable

119

Toro 650128

Screw

$

$

Currently unavailable

121

Toro 30688

Screw

$

$

Currently unavailable

122

Toro 27275

51004 GIL ROTARY TI

$3.23

$

Usually ships in 3-6 days

0

123

Toro 650490

Washer

$

$

Currently unavailable

124

Toro 8116

DISCONTINUED

$

$

Not available

126

Toro 32160

Tank Assy., Fuel

$

$

Not available

127

Toro 410224

Cap, Fuel Filler

$

$

Currently unavailable

128

Toro 32122

Bevel Gear
(Superseded to 702065)

$

$

Not available

129

Toro 32121

90 Spring Pin

$

$

Currently unavailable

130

Toro 28511

Plate, Securing

$

$

Currently unavailable

131

Toro 29596

Screw

$

$

Currently unavailable

132

Toro 8274

Lockwasher

$

$

Currently unavailable

134

Toro 30705

Line-Fuel

$

$

Currently unavailable

135

Toro 30513

Screw

$

$

Currently unavailable

135

Toro 29716

Screw

$

$

Currently unavailable

136

Toro 31345

IDENTIFICATION PLATE

$

$

Currently unavailable

137

Toro 31865

480B GIL SNWTHWR O/

$3.23

$

Usually ships in 3-6 days

0

138

Toro 28670

Stud

$

$

Not available

139

Toro 32120

Plunger, Compression Rel.

$

$

Currently unavailable

140

Toro 32124

Screw
(Superseded to 740422)

$

$

Not available

141

Toro 27656

Washer, Flat (Use with Model V60-70053D only)

$

$

Currently unavailable

142

Toro 32123

Spring, Yoke

$

$

Currently unavailable

144

Toro 29709

Hub Screen

$

$

Currently unavailable

144A

Toro 32125

Cup-Starter

$

$

Currently unavailable

145

Toro 590417

Screen, Air

$

$

Currently unavailable

146

Toro 28277

Washer-Flat

$

$

Currently unavailable

147

Toro 590420

Starter, Rewind

$

$

Currently unavailable

147A

Toro 30051

Starter, Impulse (Use with Model V60-70053D only)

$

$

Currently unavailable

148

Toro 30033

Decal, Starter (Use with Model V60-70053D only)

$

$

Currently unavailable

149

Toro 30063

Screw

$

$

Currently unavailable

151

Toro 28726

56008 ADN.KIT 28727

$3.23

$

Usually ships in 3-6 days

0

152

Toro 28727

Lockwasher (Model V70-125149)

$

$

Currently unavailable

153

Toro 28728

33144C/45C/49A/53A

$3.23

$

Usually ships in 3-6 days

0

154

Toro 30065

Nut, Long (Model V70-125149)

$

$

Currently unavailable

155

Toro 30064

Cover, Panel

$

$

Currently unavailable

156

Toro 30066

Screw

$

$

Currently unavailable

157

Toro 26460

Clamp-Line, Fuel

$

$

Currently unavailable

159

Toro 31489

Wire, Ground (Use with Model V60-70053D only)
(Superseded to 742353)

$

$

Not available

159A

Toro 30831

Wire, Ground

$

$

Currently unavailable

161

Toro 31342

Spring-Compression

$

$

Currently unavailable

162

Toro 650549

Screw

$

$

Currently unavailable

163

Toro 31372A

Gasket Set

$

$

Currently unavailable
