51070 - Toro 34" Big Red Lawn Tractor (SN: 100001 - 199999) (1971) DIFFERENTIAL ASSEMBLY PARTS LIST Parts Diagram

34" Big Red Lawn Tractor

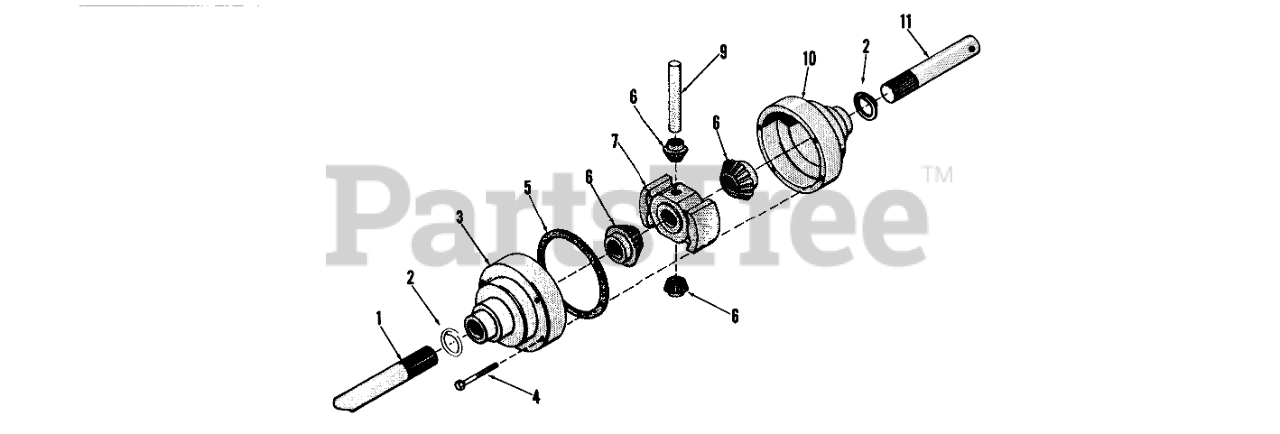

DIFFERENTIAL ASSEMBLY PARTS LIST Parts Diagram

  • Title
1

Toro 2119-170

Axle-Long

$

$

Currently unavailable

2

Toro 2119-167

Snap Ring

$

$

Currently unavailable

3

Toro 2119-166

Housing

$

$

Currently unavailable

4

Toro 3210-12

Hex Head Bolt

$

$

Currently unavailable

5

Toro 2119-173

Gasket

$

$

Currently unavailable

6

Toro 2119-175

Bevel Gear & Pinion Kit

Note: Bevel Gear and Pinions sold as a kit only. Includes 2 Snap Rings, Ref. 2

$

$

Currently unavailable

7

Toro 2119-172

Differential Cross

$

$

Currently unavailable

9

Toro 2119-171

Pinion Shaft

$

$

Currently unavailable

10

Toro 2119-165

Housing-Tapped

$

$

Currently unavailable

11

Toro 2119-169

Axle-Short

$

$

Currently unavailable
