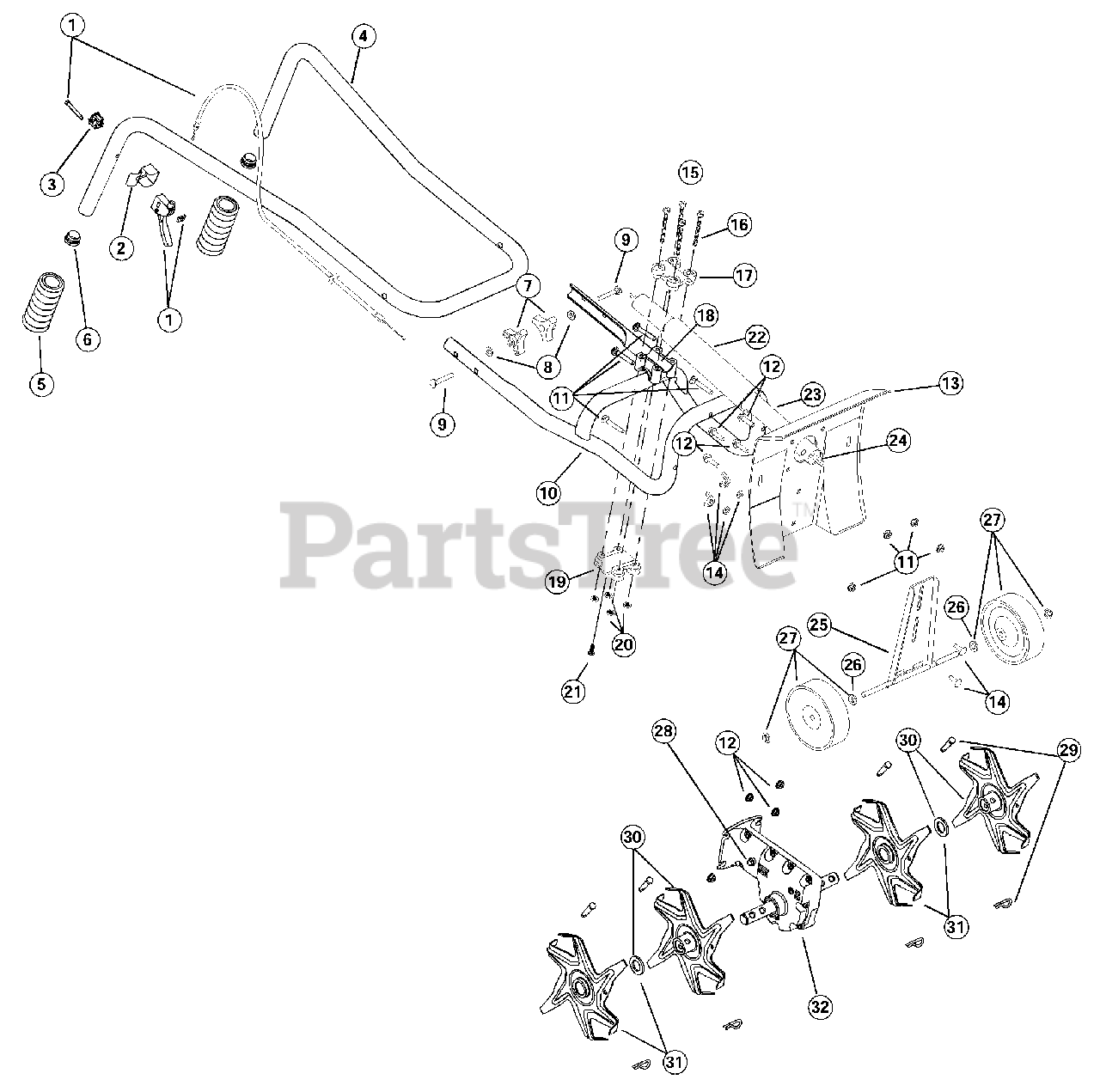

510r (21BK515G034) - Ryobi Tiller Boom And Cultivator Parts Parts Diagram

Tiller

Boom And Cultivator Parts Parts Diagram

  • Title

1

MTD 791-00024

Throttle Trigger and Cable Assembly

Note: (includes 2 & 3)

$

$

Not available

2

MTD 791-182672

Switch Bracket

$

$

Not available

3

MTD 791-182673

Ignition Switch

$10.99

$

Usually ships in 3-6 days

0

4

MTD 791-00025

Upper Handlebar Assembly

Note: (includes 5 & 6)

$

$

Not available

5

MTD 791-182675

Grip

$

$

Not available

6

MTD 791-182676

Tube Closure

$

$

Not available

7

MTD 791-182677

Handlebar Knob

$13.99

$

Usually ships in 3-6 days

0

8

MTD 791-182678

Washer
(Superseded to 4150)

$2.99

$

Usually ships in 3-6 days

0

9

MTD 791-182899

Bolt

$7.49

$

Usually ships in 3-6 days

0

10

MTD 791-00026

Lower Handlebar Assembly

$

$

Not available

11

MTD 791-182681

Handlebar Mounting Hardware

$

$

Not available

12

MTD 791-182682

Gearbox Mounting Hardware

$

$

Not available

13

MTD 791-182683

Guard

$

$

Not available

14

MTD 791-182684

Wheel Bracket Mounting Hardware

$

$

Not available

15

MTD 791-683295

Handle Bracket Assembly

Note: (includes 16-21)

$42.99

$

Usually ships in 3-6 days

0

16

MTD 791-181811

Screw

$4.49

$

Usually ships in 3-6 days

0

17

MTD 791-181812

Upper Handle Clamp

$8.49

$

Usually ships in 3-6 days

0

18

MTD 791-181813

Middle Handle Clamp

$11.99

$

Usually ships in 3-6 days

0

19

MTD 791-181814

Lower Handle Clamp

$8.49

$

Usually ships in 3-6 days

0

20

MTD 791-181815

Nut

$3.99

$

Usually ships in 3-6 days

0

21

MTD 791-145569

Anti-Rotation Screw

$9.49

$

In Stock, Qty 11

0

22

MTD 791-181575

Grip

$19.99

$

Usually ships in 3-6 days

0

23

MTD 753-04161

Drive Shaft Housing Assembly

$

$

Not available

24

MTD 791-181577

Flexible Drive Shaft

$

$

Not available

25

MTD 791-182687

Wheel Bracket Assembly
(Superseded to 753-05020)

$

$

Not available

26

MTD 791-182216

Wheel Spacer

$

$

Not available

27

MTD 791-180944

Wheel Assembly

Note: (includes 26)

$

$

Not available

28

MTD 791-180288

Sleeve Retainer Bolt
(Superseded to 710-0599)

$3.99

$

In Stock, Qty 20+

0

29

MTD 791-147473

Tine Fastener Assembly

$

$

Not available

30

MTD 791-182729

Tine Assembly (Left Outer or Right Inner)

$

$

Not available

31

MTD 791-182730

Tine Assembly (Left Inner or Right Outer)

$

$

Not available

32

MTD 791-147474

Gear Box Assembly
(Superseded to 753-04489)

$

$

Not available
