511 (511135) - Cub Cadet Rear-Engine Riding Mower (1985) Electrical System Parts Diagram

Rear-Engine Riding Mower

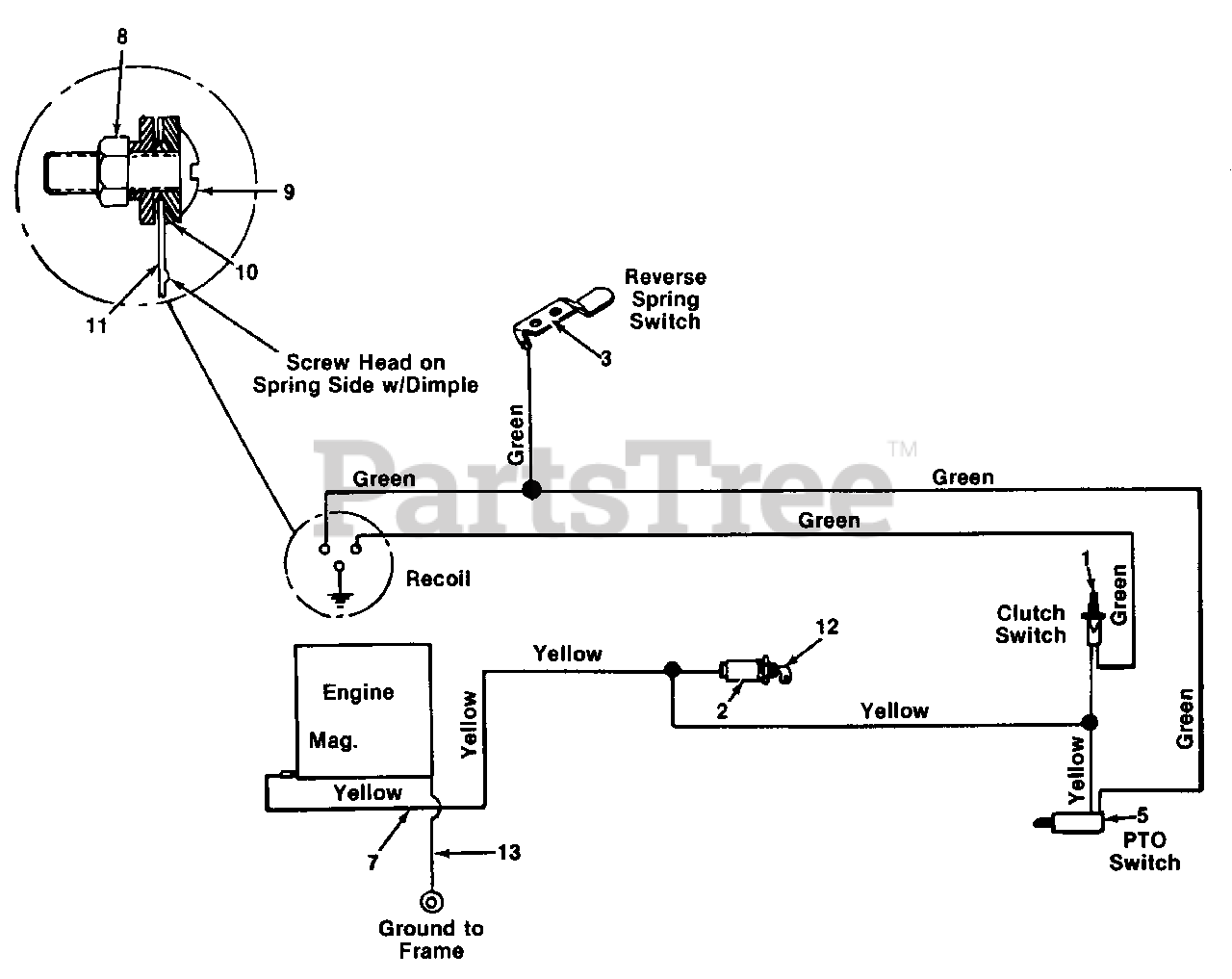

Electrical System Parts Diagram

  • Title

1

Cub Cadet 725-0269

SWITCH-SAFETY
(Superseded to 925-0269)

$

$

Not available

2

Cub Cadet 725-0464

SWITCH-KEY TYPE
(Superseded to 925-1425)

$38.99

$

In Stock, only 3 left!

0

3

Cub Cadet 732-0420

SPRING-SWITCH

$

$

Not available

Cub Cadet 725-0859

WIRE HARNESS

$

$

Currently unavailable

5

Cub Cadet 725-0819

SWITCH-SAFETY
(Superseded to 925-0819A)

$30.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 731-0652

CONDUIT-CONVOLUTED

$

$

Currently unavailable

8

Cub Cadet 712-0121

NUT-HEX

$4.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0425

SCREW-TRUSS MACH #10-24 X .62

$5.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 736-0338

WASHER-FIBER

$

$

Not available

11

Cub Cadet 732-0257

SPRING-SWITCH

$

$

Not available

12

Cub Cadet 725-0201

KEY-IGN (SET OF TWO)
(Superseded to 925-0201)

$9.99

$

In Stock, only 1 left!

0

13

Cub Cadet 725-0882

WIRE

$

$

Not available
