51100 (30-H) - Gravely Pro-Master Zero-Turn Mower, 35hp Yanmar (SN: 000101 & Above) ENGINE, FUEL AND EXHAUST Parts Diagram

Pro-Master Zero-Turn Mower, 35hp Yanmar

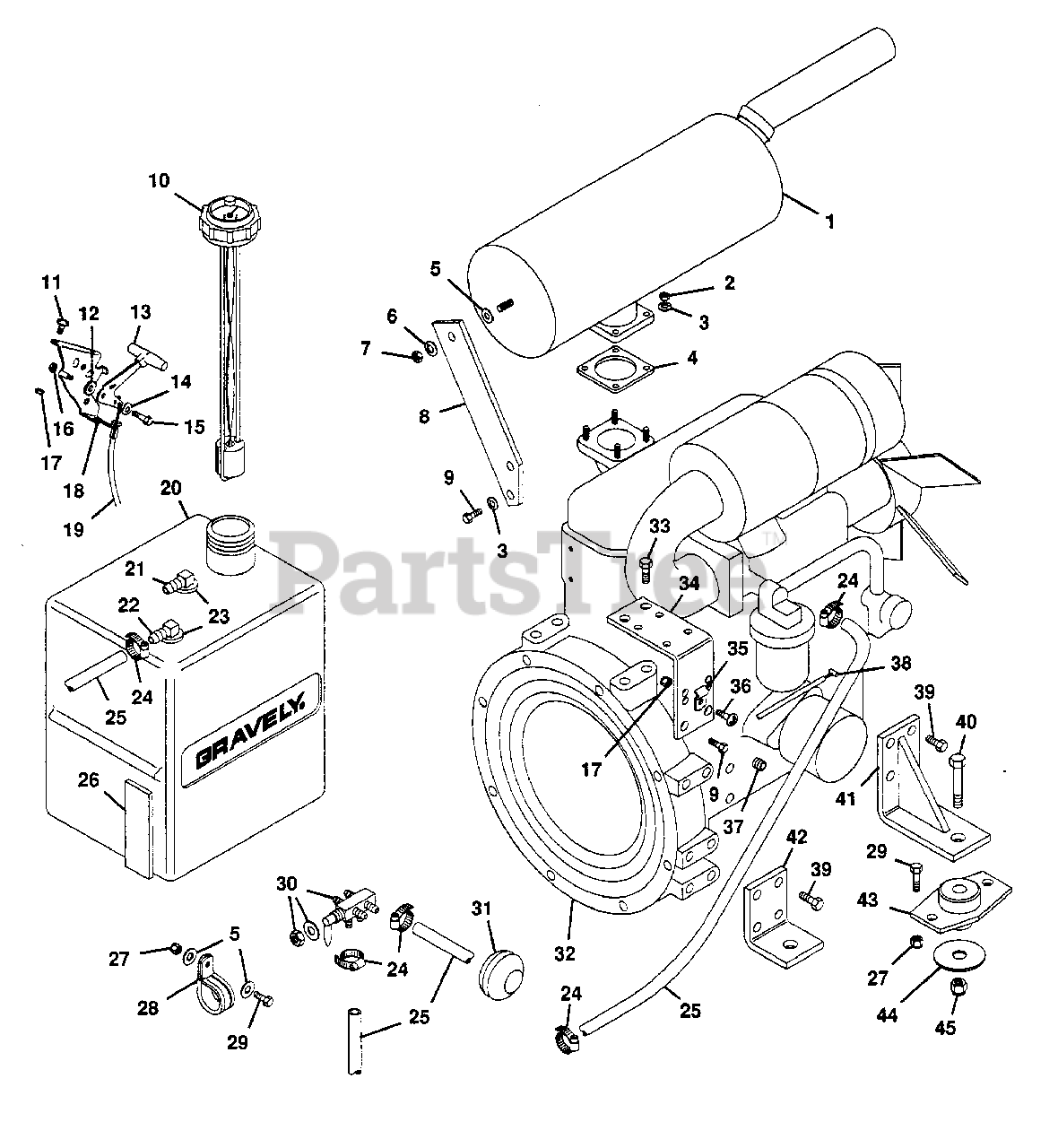

ENGINE, FUEL AND EXHAUST Parts Diagram

  • Title

1

Gravely 045021

MFLR,YANMAR
(Superseded to 08961200)

$

$

Not available

2

Gravely 046363

NUT-HEX M8-1.25 YWZC
(Superseded to 06538600)

$2.49

$

Usually ships in 4-12 days

0

3

Gravely 120214

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 047853

GASKET, SILENCER
(Superseded to 20875800)

$

$

Not available

5

Gravely 120394

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 120382

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 120377

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 045026

BR,MUFFLER
(Superseded to 08961500)

$

$

Not available

9

Gravely 046360

BLT-HEX M8 X 1.25X16 YWZC
(Superseded to 05956300)

$

$

Not available

10

Gravely 047615

GAUGE,FUEL
(Superseded to 08983200)

$

$

Not available

11

Gravely 159920

SCR-MCH 10-24X.50 PHD
(Superseded to 06113000)

$2.49

$

Usually ships in 4-12 days

0

12

Gravely 011772

WSHR-FRICTION .750X.256X.100
(Superseded to 06431500)

$14.99

$

Usually ships in 4-12 days

0

13

Gravely 011773

KNOB & LEVER ASS'Y
(Superseded to 06917100)

$

$

Not available

14

Gravely 011774

SPRING WASHER
(Superseded to 03493400)

$

$

Not available

15

Gravely 181566

BLT-HEX .25-28X.75 GR5 YWZC
(Superseded to 05952300)

$2.49

$

Usually ships in 4-12 days

0

16

Gravely 416430

NUT-LK-CTR .250-28 YWZC
(Superseded to 06533400)

$2.49

$

In Stock, Qty 10

0

17

Gravely 190254

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 011770

BRACKET - TROTTLE CABLE
(Superseded to 03493300)

$

$

Not available

19

Gravely 045051

CONTROL-THROTTLE LH 90 DEG MNT
(Superseded to 06927700)

$

$

Not available

20

Gravely 047674

TANK,FUEL
(Superseded to 20865100)

$

$

Not available

21

Gravely 047614

FTG,TANK
(Superseded to 08983100)

$35.99

$

Usually ships in 4-12 days

0

22

Gravely 049316

FITTING,TANK 91669-00
(Superseded to 20935900)

$

$

Not available

23

Gravely 047613

BSHG-FLG .375 X 1.062 X .625 R
(Superseded to 07511400)

$3.99

$

In Stock, Qty 20+

0

24

Gravely 032045

HOSE CLAMP
(Superseded to 06924300)

$7.99

$

Usually ships in 4-12 days

0

25

Gravely 021134

HOSE, .25 LOW-PERM BULK GAS
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 031884

PAD, GAS TANK
(Superseded to 03301900)

$

$

Not available

27

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

28

Gravely 050395

CLAMP, COUSHIONED STEEL REV
(Superseded to 06917900)

$15.99

$

Usually ships in 4-12 days

0

29

Gravely 180122

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

30

Gravely 045278

VALVE,FUEL CONTROL
(Superseded to 20817300)

$

$

Not available

31

Gravely 046396

GRMT 1.50X1.75X2.12
(Superseded to 07532300)

$

$

Not available

32

Gravely 044564

SEE SERVICE LETTER L-1011

$

$

Not available

33

Gravely 023215

BLT-HEX M10 X 1.5X16 YWZC
(Superseded to 05941600)

$

$

Not available

34

Gravely 044487

BRKT,CONTROL
(Superseded to 08950700)

$

$

Not available

35

Gravely 045242

CLIP
(Superseded to 06928000)

$4.99

$

Usually ships in 4-12 days

0

36

Gravely 159929

SCR-MCH 10-24X.62 P/HD
(Superseded to 06111100)

$1.49

$

In Stock, Qty 10

0

37

Gravely 047774

PLUG PT 1/4
(Superseded to 08983900)

$

$

Not available

38

Gravely 010834

WSHR-FL-STL.250X.500X.049 WYZC
(Superseded to 06423600)

$

$

Not available

39

Gravely 046359

BLT-HEX M10 X 1.5X20 GR5 YWZC
(Superseded to 05967600)

$3.49

$

Usually ships in 4-12 days

0

40

Gravely 180188

BLT-HEX .50-13X2.75 GR5 YWZC
(Superseded to 05901720)

$5.49

$

Usually ships in 4-12 days

0

41

Gravely 044917

WLDMT,ENGINE MOUNT
(Superseded to 08958700)

$

$

Not available

42

Gravely 044918

MOUNT,ENGINE
(Superseded to 08958800)

$

$

Not available

43

Gravely 044473

MOUNT,ENGINE
(Superseded to 07529700)

$

$

Not available

44

Gravely 044476

WSHR-SNUB-STL .53X2.38X.125
(Superseded to 06428100)

$

$

Not available

45

Gravely 435507

NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

Gravely 047550

WRENCH,FUEL FILTER
(Superseded to 09025900)

$

$

Not available
