51100 (30-H) - Gravely Pro-Master Zero-Turn Mower, 35hp Yanmar (SN: 000101 & Above) MAIN FRAME Parts Diagram

Pro-Master Zero-Turn Mower, 35hp Yanmar

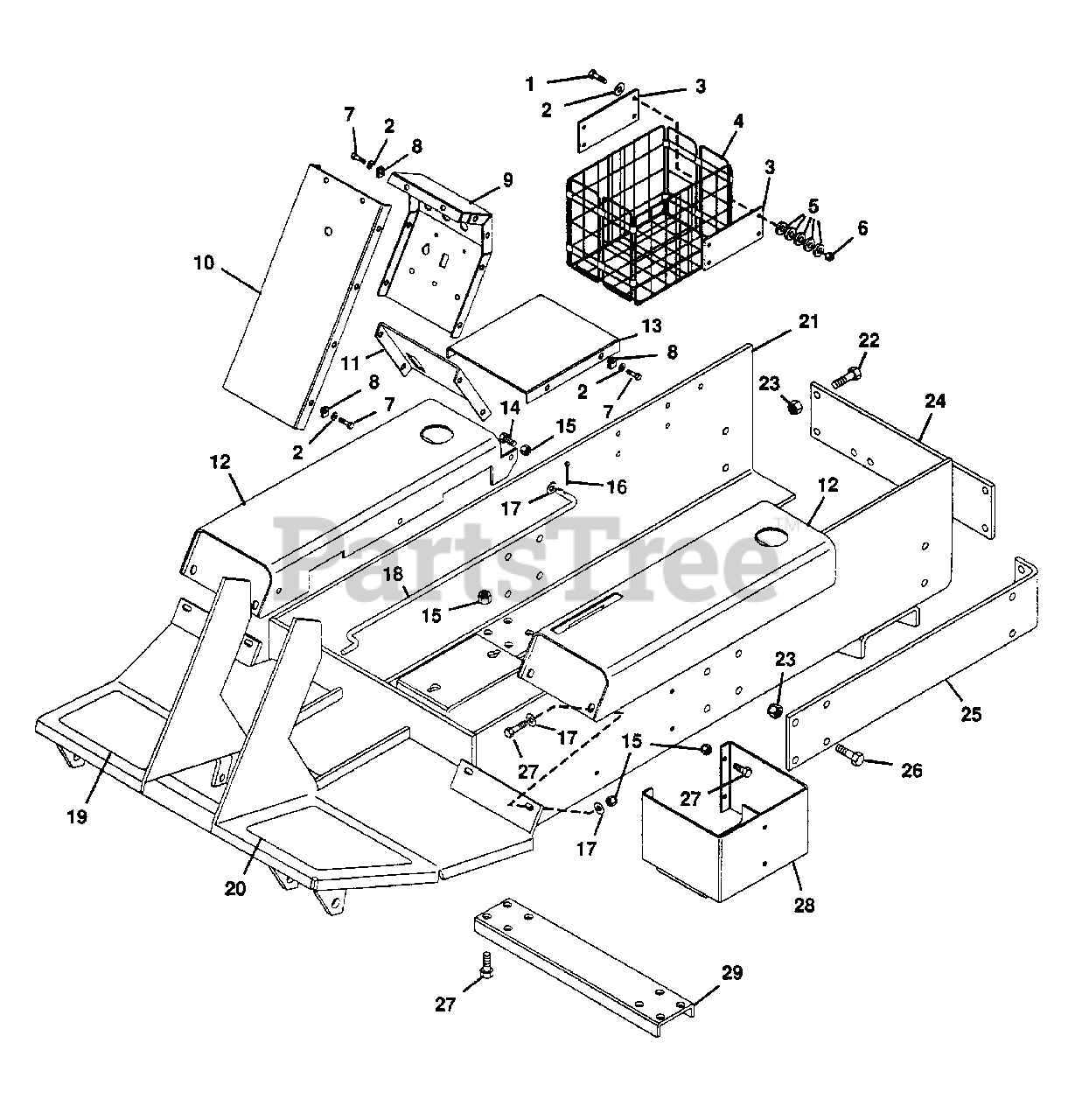

MAIN FRAME Parts Diagram

  • Title

1

Gravely 180034

BLT-HEX .25-20X1.50 GR5 YWZC
(Superseded to 05901739)

$1.99

$

In Stock, Qty 8

0

2

Gravely 120392

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 046236

STRP,BASKET
(Superseded to 08976600)

$

$

Not available

4

Gravely 046247

BASKET
(Superseded to 08976700)

$

$

Not available

5

Gravely 011772

WSHR-FRICTION .750X.256X.100
(Superseded to 06431500)

$14.99

$

Usually ships in 4-12 days

0

6

Gravely 419454

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

7

Gravely 160541

SCR-MCH .25-20 PAN HD
(Superseded to 06113500)

$2.99

$

Usually ships in 4-12 days

0

8

Gravely 032369

NUT-RTNR .25-20X.56
(Superseded to 07009000)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 046443

PNL,SILK SCREEN INSTR
(Superseded to 21280700)

$

$

Not available

10

Gravely 047188

PNL,FRONT SILK SCREEN
(Superseded to 08980800)

$

$

Not available

11

Gravely 047353

PNL,BRAKE LK SILKSCREEN
(Superseded to 21283100)

$

$

Not available

12

Gravely 048812

FENDER,R.H.SILK SCREEN
(Superseded to 21287600)

$

$

Not available

12

Gravely 048811

WLDMT,FENDER L.H.
(Superseded to 09004800)

$26.99

$

Usually ships in 4-12 days

0

13

Gravely 046445

PNL,ACCESS SILK SCREEN
(Superseded to 21280800)

$

$

Not available

14

Gravely 180120

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 14

0

15

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

16

Gravely 121222

PIN-CTR .09X.75 EXTPRSQCT YWZ
(Superseded to 06706900)

$0.99

$

In Stock, only 2 left!

0

17

Gravely 120394

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 045214

ROD,STAY
(Superseded to 09029500)

$

$

Not available

19

Gravely 046369

CVR,R.H. FOOT
(Superseded to 08964600)

$14.99

$

Usually ships in 4-12 days

0

20

Gravely 046368

CVR,L.H. FOOT
(Superseded to 08964000)

$14.99

$

Usually ships in 4-12 days

0

21

Gravely 044510

WLDMT,FRAME
(Superseded to 08951400)

$

$

Not available

22

Gravely 180177

BLT-HEX .50-13X1.50 GR5 YWZC
(Superseded to 05901631)

$4.99

$

In Stock, Qty 12

0

23

Gravely 435507

NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

24

Gravely 046216

PLT,BUMPER
(Superseded to 08975700)

$

$

Not available

25

Gravely 045733

BUMPER
(Superseded to 08971500)

$

$

Not available

26

Gravely 180175

BLT-HEX .50-13X1.25 GR5 YWZC
(Superseded to 05901637)

$3.49

$

In Stock, Qty 6

0

27

Gravely 180121

BLT-HEX .38-16X.875 GR5 YWZC
(Superseded to 05932600)

$2.99

$

Usually ships in 4-12 days

0

28

Gravely 049253

WLDMT,FUEL TANK BRKT
(Superseded to 21291300)

$

$

Not available

29

Gravely 045382

BRACE,FRAME
(Superseded to 21274800)

$

$

Not available

Gravely 046446

DECAL,MODEL 30-H
(Superseded to 05213400)

$

$

Not available

Gravely 046990

DECAL SET, PM 350/400
(Superseded to 09035800)

$56.99

$

Usually ships in 4-12 days

0

Gravely 047322

DECAL,CORNER
(Superseded to 05214000)

$

$

Not available

Gravely 047478

DECAL SET, PM 350/400
(Superseded to 09035800)

$56.99

$

Usually ships in 4-12 days

0
