51100 (30-H) - Gravely Pro-Master Zero-Turn Mower, 35hp Yanmar (SN: 000101 & Above) WHEELS Parts Diagram

Pro-Master Zero-Turn Mower, 35hp Yanmar

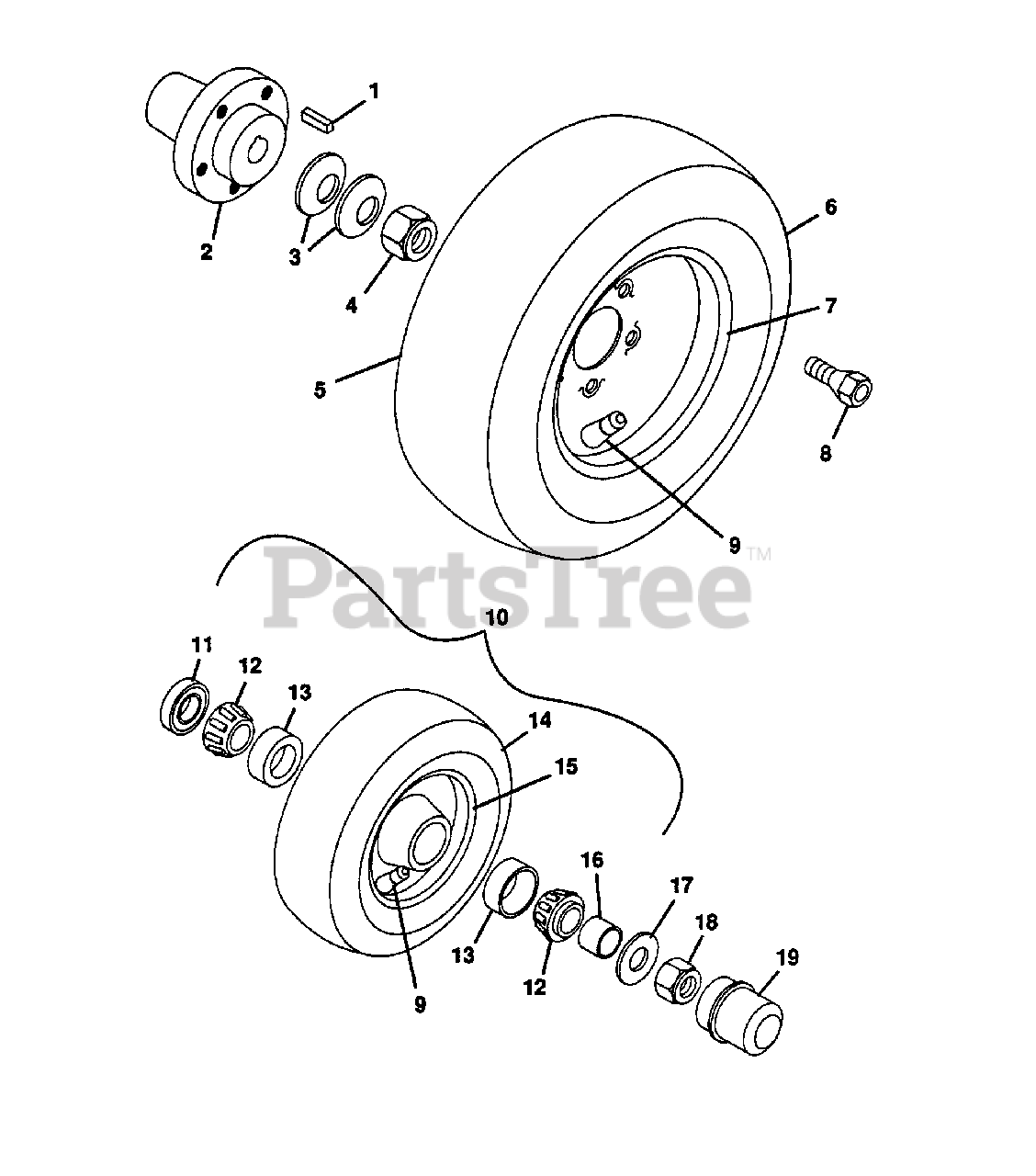

WHEELS Parts Diagram

  • Title

1

Gravely 044386

KEY-SQ .312X2.25
(Superseded to 06607200)

$6.49

$

Usually ships in 4-12 days

0

2

Gravely 044364

HUB,WHEEL
(Superseded to 08968200)

$

$

Not available

3

Gravely 051726

SG-BLVL .097X.145X2.00
(Superseded to 08346300)

$

$

Not available

4

Gravely 013619

NUT, 1-14 THIN PATTERN NYLOCK
(Superseded to 00181818)

$10.99

$

Usually ships in 4-12 days

0

5

Gravely 052995

ASSY, TIRE & WHEEL, 23X10.5-12
(Superseded to 07150100)

$

$

Not available

6

Gravely 048921

TIRE, 23X10.50-12
(Superseded to 20928100)

$

$

Not available

7

Gravely 048922

WLDMT,RIM
(Superseded to 20928200)

$156.99

$

Usually ships in 4-12 days

0

8

Gravely 012744

BOLT, LUG .44-20X1.00 YWZC
(Superseded to 07051400)

$10.99

$

In Stock, only 4 left!

0

9

Gravely 011191

VALVE STEM ASS'Y
(Superseded to 07520000)

$2.99

$

In Stock, only 1 left!

0

10

Gravely 031425

TIRE, ASSEMBLY
(Superseded to 21212500)

$290.99

$

Usually ships in 4-12 days

0

11

Gravely 018447

SEAL 1.206X1.785X.486
(Superseded to 05613200)

$17.99

$

In Stock, Qty 7

0

12

Gravely 018446

BRG-CONE .750X.61
(Superseded to 05404500)

$29.99

$

In Stock, Qty 20+

0

13

Gravely 018445

BRG-CUP 1.781X.475
(Superseded to 05404400)

$11.99

$

In Stock, Qty 17

0

14

Gravely 048924

T/WHL ASSY 16X6.5-8
(Superseded to 07119600)

$221.99

$

Usually ships in 4-12 days

0

15

Gravely 048925

T/WHL ASSY 16X6.5-8
(Superseded to 07119600)

$221.99

$

Usually ships in 4-12 days

0

16

Gravely 018448

SPACER .752X1.000X.500
(Superseded to 03495900)

$16.99

$

In Stock, only 4 left!

0

17

Gravely 131016

WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$2.99

$

In Stock, Qty 20+

0

18

Gravely 414075

NUT-LK-CTR .62-11 YWZC
(Superseded to 06535300)

$2.99

$

In Stock, only 1 left!

0

19

Gravely 018449

DUST CAP
(Superseded to 03496000)

$15.99

$

In Stock, Qty 8

0
