51110 - Toro 10" Chainsaw, Electric (SN: 000000001 - 000999999) (1980) TORO COMPACT ELECTRIC CHAIN SAW 10" & 14" Parts Diagram

10" Chainsaw, Electric

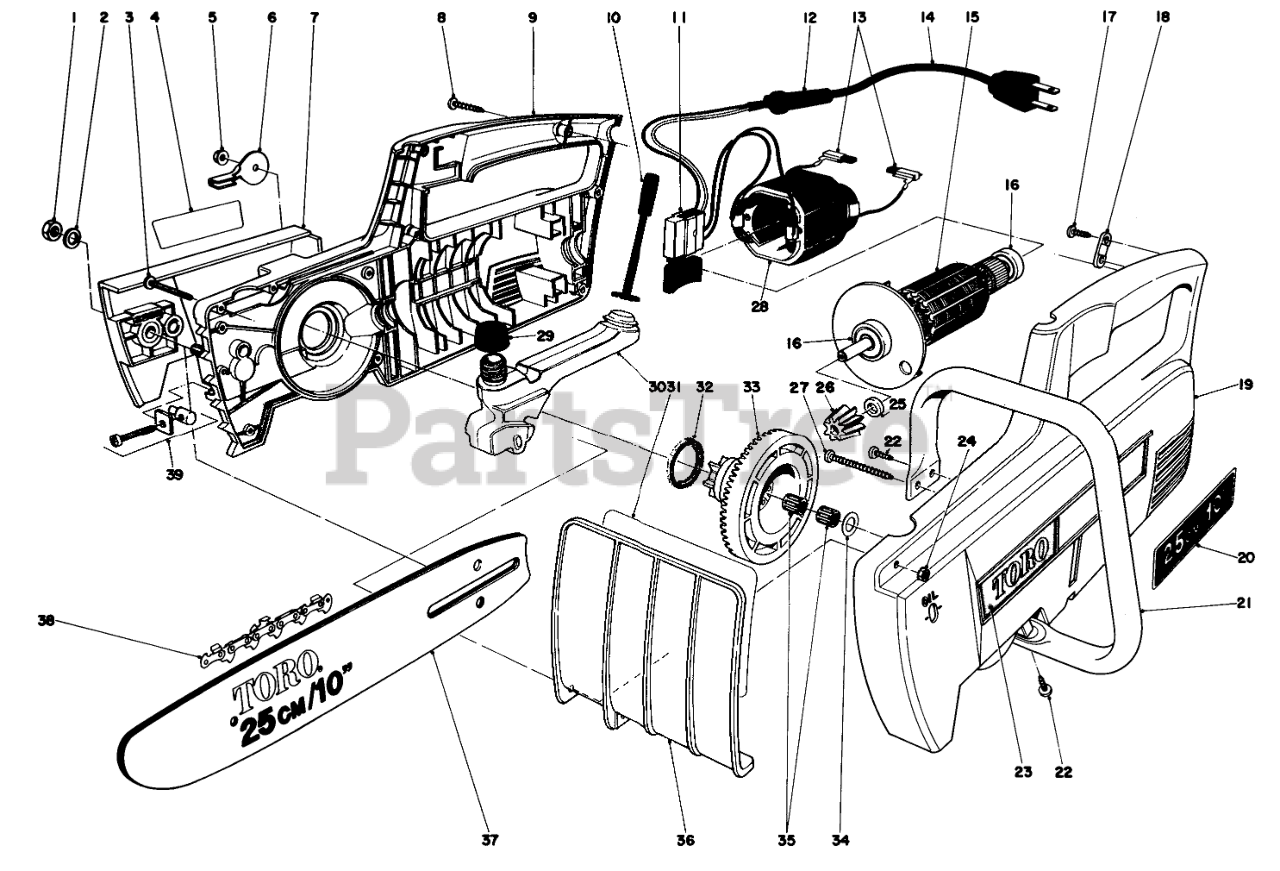

TORO COMPACT ELECTRIC CHAIN SAW 10" & 14" Parts Diagram

  • Title

1

Toro 34-5970

NUT

$

$

Not available

2

Toro 34-5980

SPRING WASHER

$

$

Not available

3

Toro 34-5950

Screw

$

$

Not available

4

Toro 34-0970

Decal-Toro R.H.

$

$

Not available

5

Toro 34-6040

TOOTHED FLANGE NUT

$

$

Not available

6

Toro 34-6150

Shaft Support Bracket

$

$

Not available

7

Toro 34-4240

Sprocket Cover

$

$

Currently unavailable

8

Toro 34-6000

Screw

$

$

Not available

9

Toro 34-4230

Housing R.H.

$

$

Currently unavailable

10

Toro 34-4190

Oil Button

$

$

Not available

11

Toro 34-4210

Switch

$

$

Currently unavailable

12

Toro 34-4200

Driver
(Superseded to 34-9100)

$18.99

$

In Stock, only 3 left!

0

13

Toro 34-6350

Brush Assembly

$

$

Not available

14

Toro 34-3920

Power Supply Cord

$

$

Not available

15

Toro 344330

Armature (Including Ball Bearing)

$

$

Currently unavailable

16

Ball Bearing

$

$

Not available

17

Toro 34-5990

Screw

$

$

Not available

18

Toro 344390

Cord Clamp

$

$

Currently unavailable

19

Toro 344220

Housing L.H.

$

$

Currently unavailable

20

Toro 34-2500

Decal-Chain Saw (Model 51110)

$

$

Not available

Toro 34-2510

Decal-Chain Saw (Model 51 150)

Note: Not illustrated

$

$

Not available

21

Toro 344320

Front Handle

$

$

Currently unavailable

22

Toro 32104-118

SCREW-PPH

$1.99

$

Usually ships in 3-6 days

0

23

Toro 34-0960

Decal-Toro L.H.

$

$

Not available

24

Toro 34-6400

Hex Nut

$

$

Not available

25

Toro 34-6100

Collar

$

$

Not available

26

Toro 34-6110

Pinion

$

$

Not available

27

Toro 34-6020

Screw

$

$

Not available

28

Toro 344070

Field Assembly

$

$

Currently unavailable

29

Toro 344370

Oil Cap

$

$

Currently unavailable

30

Toro 34-6170

Oil Tank

$

$

Not available

31

Toro 34-2560

Decal-Caution

$

$

Not available

32

Toro 34-6360

Felt Seal

$

$

Not available

33

Toro 34-6120

Sorocket Assembly

$

$

Not available

34

Toro 34-6130

THRUST WASHER

$

$

Not available

35

Toro 34-6140

Needle Bearing

$

$

Not available

36

Toro 34-6090

HAND GUARD

$24.99

$

Usually ships in 3-6 days

0

37

Toro 34-2480

10" CHAIN SAW BAR - C

$157.99

$

Usually ships in 3-6 days

0

Toro 34-2490

14 IN BAR

Note: Not illustrated

$

$

Not available

38

Toro 33-8300

10" Saw Chain

$

$

Currently unavailable

Toro 33-8310

Saw Chain

Note: Not illustrated

$

$

Currently unavailable

39

Toro 34-6080

Adjusting Block Assembly

$

$

Not available
