511101 - Ariens Bail And Drive Improvement Kit Bail / Cable / Traction Improvement Kits Parts Diagram

Bail And Drive Improvement Kit

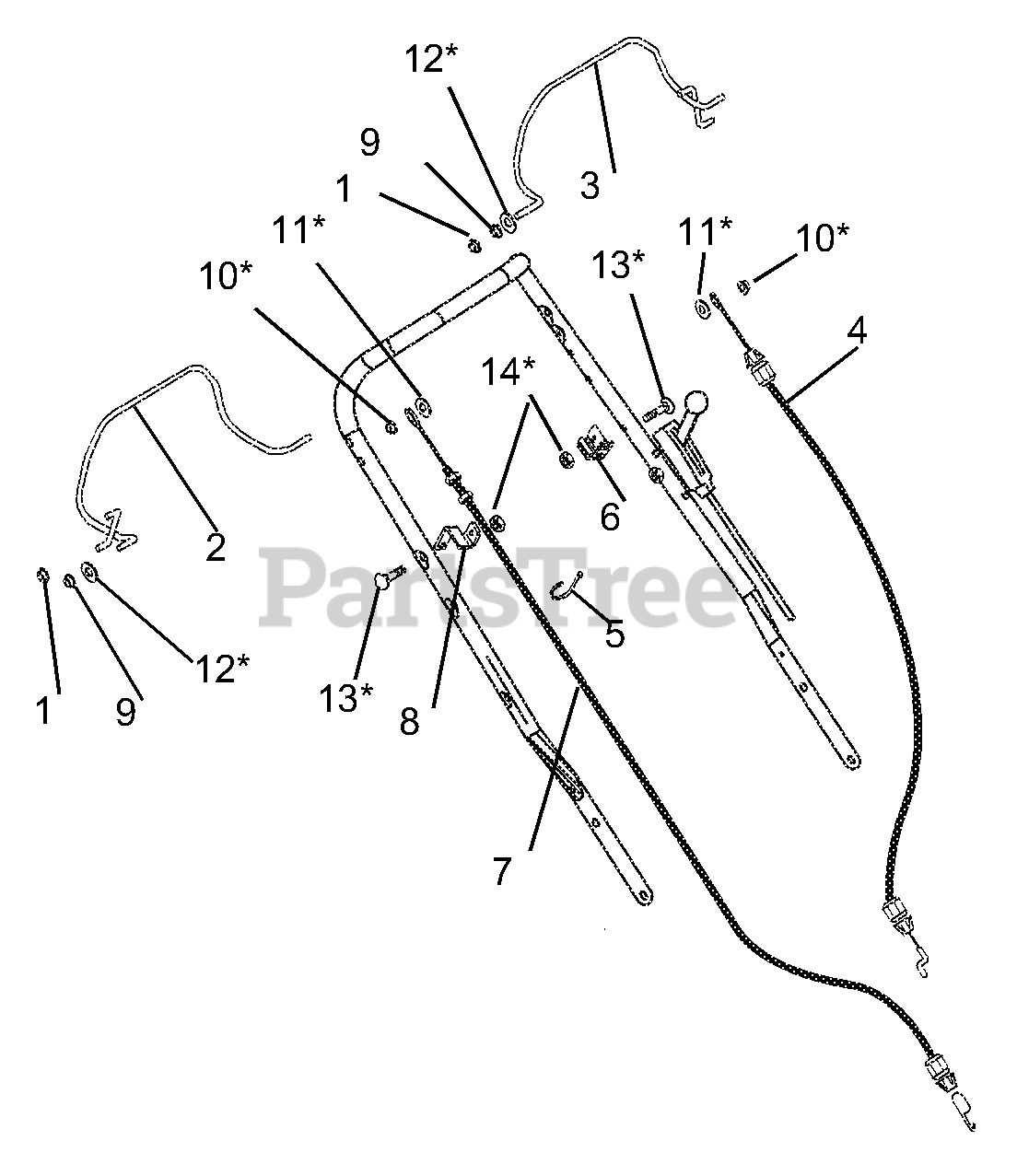

Bail / Cable / Traction Improvement Kits Parts Diagram

  • Title

1

Ariens 07008200

NUT-PUSH .312 DIA. PAL

$2.49

$

In Stock, Qty 20+

0

2

Ariens 01245200

BAIL, TRACTION (WLDMENT)
(Superseded to 01245251)

$75.99

$

In Stock, only 2 left!

0

3

Ariens 01245100

BAIL, ENGINE WELDMENT
(Superseded to 01245151)

$56.99

$

Usually ships in 4-12 days

0

4

Ariens 06900015

CABLE, ENGINE (BRIGGS/GXV)

$23.99

$

Usually ships in 4-12 days

0

4

Ariens 06900014

CABLE, WBLM ENGINE

$23.99

$

In Stock, only 4 left!

0

4

Ariens 06900016

CABLE, HONDA GCV ENGINE

$37.99

$

Usually ships in 4-12 days

0

5

Ariens 07517300

CABLE TIE LG 5-1/2

$

$

Not available

6

Ariens 01245600

ANCHOR, WBLM ENGINE CABLE
(Superseded to 01245651)

$12.99

$

In Stock, only 1 left!

0

7

Ariens 06900013

CABLE, WBLM TRACTION

$58.99

$

In Stock, Qty 6

0

8

Ariens 01245400

ANCHOR, CABLE
(Superseded to 01245451)

$28.99

$

Usually ships in 4-12 days

0

9

Ariens 05514500

BSHG-FLG .325X.444X.440X.560

$3.99

$

In Stock, Qty 20+

0

10

1/4" Push Nut

$

$

Not available

11

9/32" Washer

$

$

Not available

12

1/4" Washer

$

$

Not available

13

1/2" x 1/4" Bolt

$

$

Not available

14

1/2" Locknut

$

$

Not available
