511151 - Gravely Forward Drive Improvement Kit Drive Controls Parts Diagram

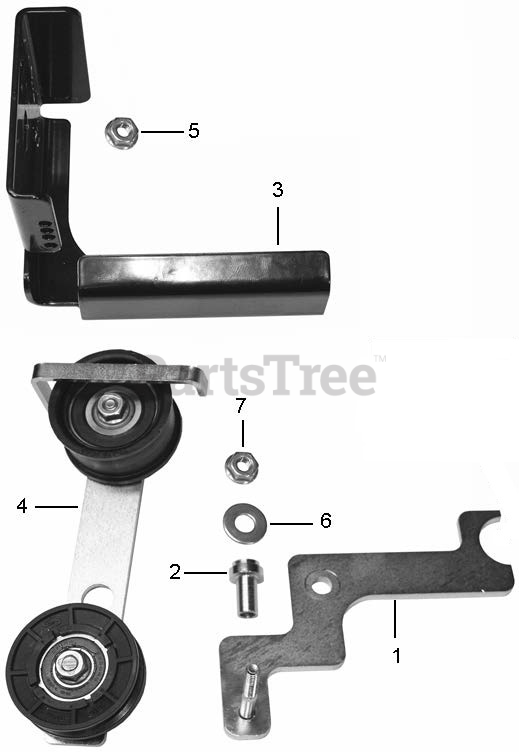

Forward Drive Improvement Kit

Drive Controls Parts Diagram

  • Title

1

Gravely 04273200

WLDMNT, IDLER PIVOT MOUNT

$

$

Not available

2

Gravely 04273300

PIVOT, WAW DOUBLE ACTING IDLER

$

$

Not available

3

Gravely 04273551

GUIDE, VERTICAL BELT

$42.99

$

Usually ships in 4-12 days

0

4

Gravely N/A

Note: IDLER ASSEMBLY, DOUBLE-ACTING

$

$

Currently unavailable

4

Gravely 04273600

ARM, DOUBLE ACTING IDLER

$38.99

$

Usually ships in 4-12 days

0

4

Gravely 00444400

IDLER, 3L FRONT SIDE .38X1.875

$22.99

$

Usually ships in 4-12 days

0

4

Gravely 05947400

@BLT-HEX .25-20X1.25 GR5 YWZC
(Superseded to 05901738)

$1.99

$

In Stock, Qty 5

0

4

Gravely 01258900

SPACER, V-IDLER PULLEY

$3.99

$

In Stock, only 2 left!

0

4

Gravely 06435800

@WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$0.99

$

In Stock, Qty 10

0

4

Gravely 07300435

PULLEY, ILDER .25X1.875X.97

$20.99

$

Usually ships in 4-12 days

0

4

Gravely 01251600

TUBE-SPACER, .280X.375X.375

$

$

Not available

4

Gravely 07300012

PULLEY, CABLE

$4.99

$

In Stock, only 4 left!

0

4

Gravely 05964700

@BLT-HEX .25-20X1.75 GR5 YWZC
(Superseded to 05901935)

$2.49

$

In Stock, only 3 left!

0

4

Gravely 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 13

0

5

Gravely 06543800

NUT, .38-16 LOW CROWN LK ACORN
(Superseded to 06534900)

$1.49

$

In Stock, Qty 18

0

6

Gravely 06435800

@WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$0.99

$

In Stock, Qty 10

0

7

Gravely 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 13

0
