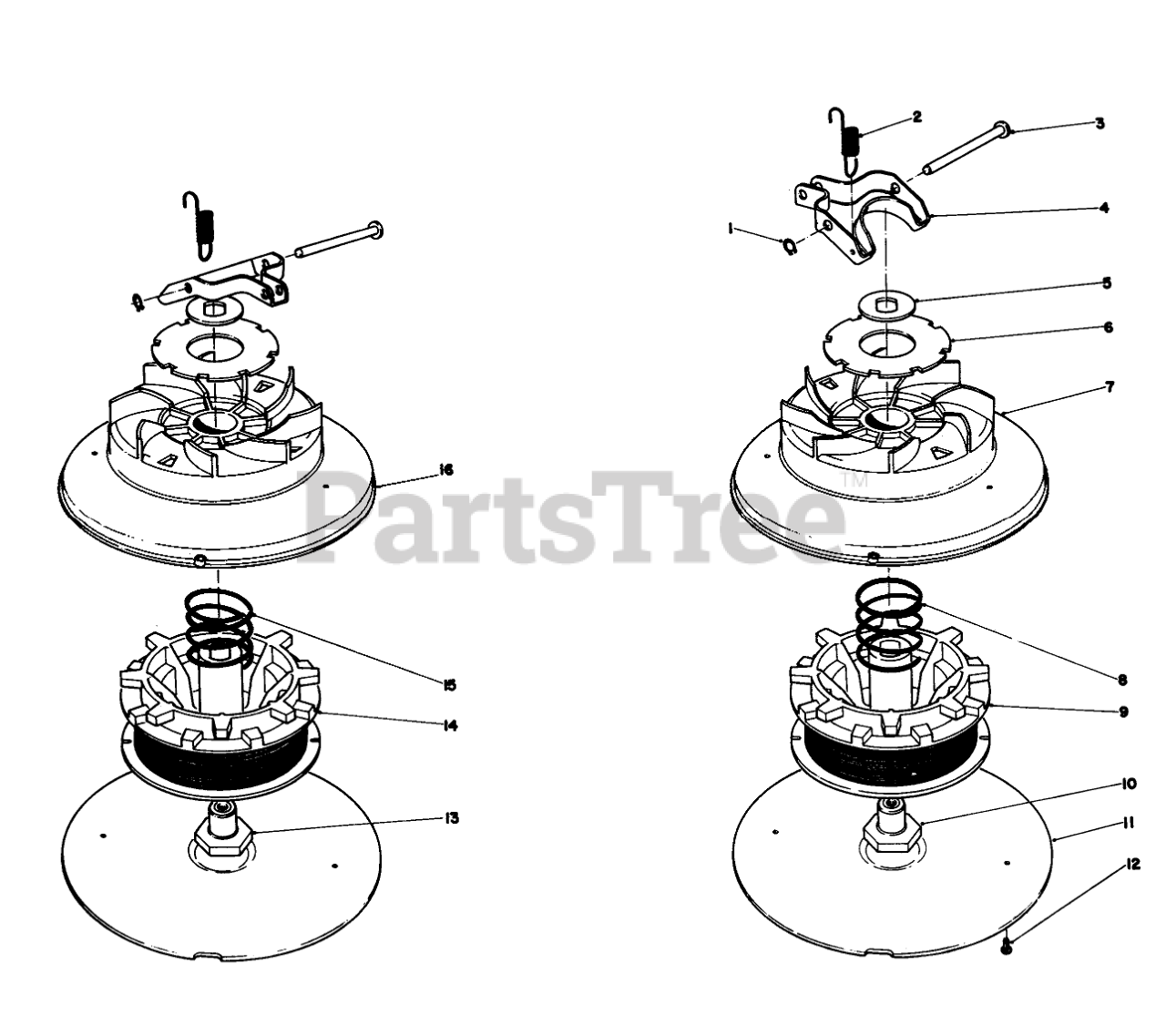

51170 - Toro 20" Walk-Behind Mower, Electric (SN: 000000001 - 000999999) (1980) > Parts Diagrams (3) > SPOOL AND DRUM ASSEMBLY

  • Title
32151-64

1

Retaining Ring

Part# 32151-64

OEM Warranty Repair Part for Toro

Not available

34-1000

2

Spring-Fork

Part# 34-1000

OEM Warranty Repair Part for Toro

Not available

34-1010

3

Pivot Pin

Part# 34-1010

OEM Warranty Repair Part for Toro

Not available

34-0490

4

Indexing Fork

Part# 34-0490

OEM Warranty Repair Part for Toro

Not available

40-9650

5

WASHER

Part# 40-9650

OEM Warranty Repair Part for Toro

Not available

41-9550

6

Thrust Washer

Part# 41-9550

OEM Warranty Repair Part for Toro

Currently unavailable

42-0430

7

Drum L.H. (Incl. Ref. #6)

Part# 42-0430 (Superseded to 43-5730)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $151.52

34-0420

8

COMP SPRING

Part# 34-0420

OEM Warranty Repair Part for Toro

Not available

9

Spool L.H.

Part#

Not available

34-0360

10

LH RET NUT

Part# 34-0360

OEM Warranty Repair Part for Toro

Not available

41-9560

11

DRUM COVER

Part# 41-9560

OEM Warranty Repair Part for Toro

Not available

32104-121

12

Screw

Part# 32104-121 (Superseded to 94-4496)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.11

34-0370

13

Nut Retaining R.H.

Part# 34-0370 (Superseded to 41-9630)

OEM Warranty Repair Part for Toro

Not available

14

Spool R.H.

Part#

Not available

34-0210

15

Spring R.H.

Part# 34-0210

OEM Warranty Repair Part for Toro

Not available

42-0440

16

Drum R.H. (Incl. Ref. #6)

Part# 42-0440 (Superseded to 43-5740)

OEM Warranty Repair Part for Toro

Not available

8-9109

Spool Package (Incl. Ref. # 9 & 14)

Part# 8-9109

Note: Not illustrated

OEM Warranty Repair Part for Toro

Not available
