51181 (PM 300) - Gravely Pro-Master Zero-Turn Mower, 20hp Kohler (SN: 000101 & Above) SULKY FRAME Parts Diagram

Pro-Master Zero-Turn Mower, 20hp Kohler

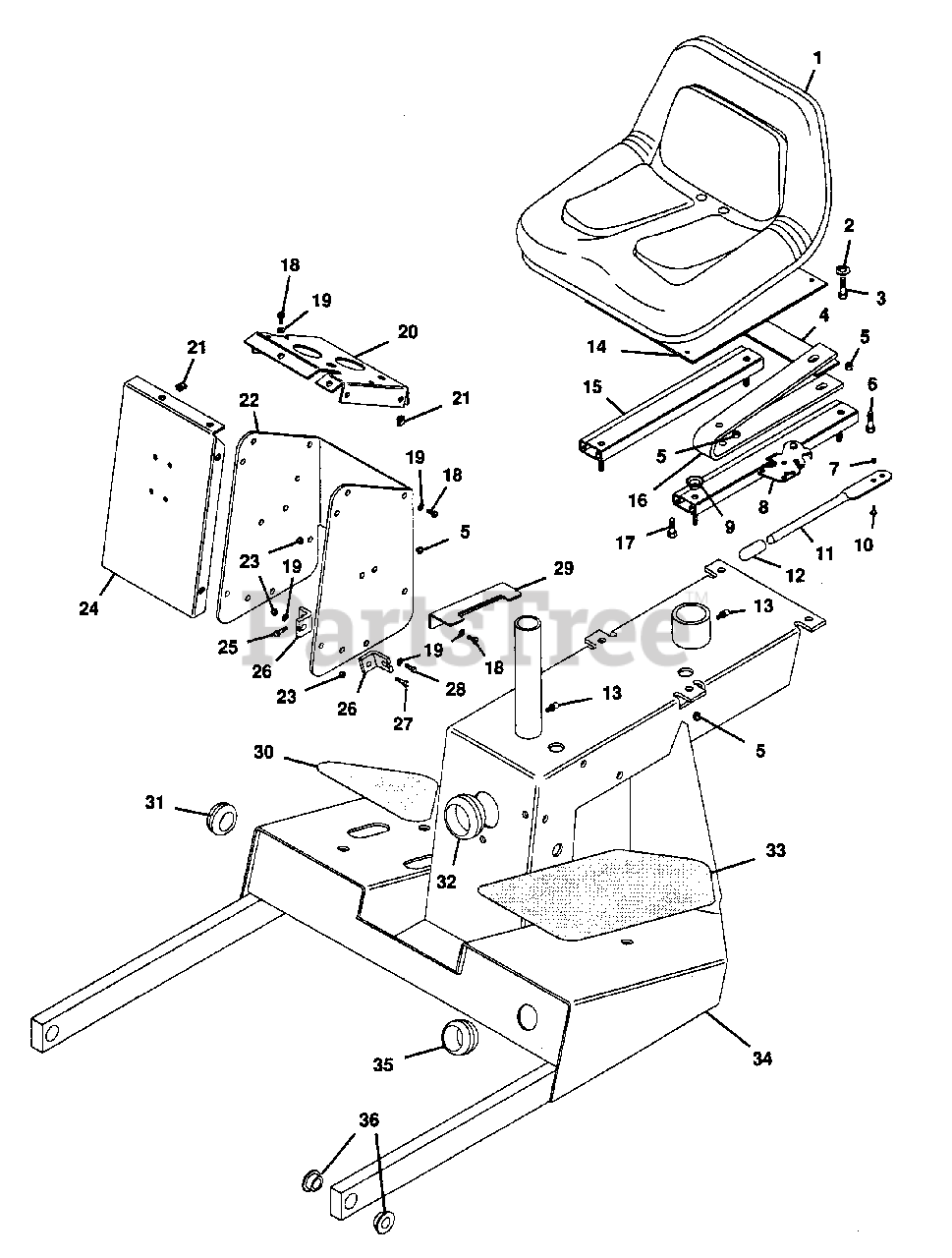

SULKY FRAME Parts Diagram

  • Title

1

Gravely 048918

SEAT KIT W/ SWITCH
(Superseded to 59100200)

$

$

Not available

2

Gravely 120214

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 180079

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 051278

BRKT,SEAT
(Superseded to 09004051)

$

$

Not available

5

Gravely 419455

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

6

Gravely 180082

BLT-HEX .31-18X1.38
(Superseded to 05934500)

$

$

Not available

7

Gravely 190254

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 035641

SEAT SLIDES -(RAME TAK-3010-4)
(Superseded to 03600800)

$

$

Not available

9

Gravely 035670

SEAT SLIDE SPACER
(Superseded to 03418300)

$4.49

$

Usually ships in 4-12 days

0

10

Gravely 159929

SCR-MCH 10-24X.62 P/HD
(Superseded to 06111100)

$1.49

$

In Stock, Qty 10

0

11

Gravely 039063

SEAT SLIDE HANDLE
(Superseded to 03416500)

$

$

Not available

12

Gravely 043192

TIP - BRAKE LOCK LEVER
(Superseded to 07503800)

$1.99

$

In Stock, only 2 left!

0

13

Gravely 411027

FTG,LUBE, .25-28 SELF THREAD
(Superseded to 07012600)

$

$

Not available

14

Gravely 051330

PLT
(Superseded to 09004351)

$

$

Not available

15

Gravely 035642

SEAT SLIDES -(RAME TAK-3010-4)
(Superseded to 03600800)

$

$

Not available

16

Gravely 047528

SPRING, SEAT
(Superseded to 03486851)

$

$

Not available

17

Gravely 180081

BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.99

$

In Stock, Qty 11

0

18

Gravely 160541

SCR-MCH .25-20 PAN HD
(Superseded to 06113500)

$2.99

$

Usually ships in 4-12 days

0

19

Gravely 120392

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 050044

PNL,SILKSCREEN CONTROL
(Superseded to 21304000)

$

$

Not available

21

Gravely 032369

NUT-RTNR .25-20X.56
(Superseded to 07009000)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 047356

SUPPORT, INSTRUMENT PANEL
(Superseded to 09084800)

$51.99

$

Usually ships in 4-12 days

0

23

Gravely 419454

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

24

Gravely 050050

COVER PANEL W/ DECAL
(Superseded to 59000700)

$

$

Not available

25

Gravely 180078

BOLT-HEX.31-18X.875 YWZC GR5
(Superseded to 05901801)

$2.99

$

In Stock, only 2 left!

0

26

Gravely 045383

BRKT,CABLE
(Superseded to 08968400)

$6.49

$

Usually ships in 4-12 days

0

27

Gravely 180021

BLT-HEX .25-20X.875
(Superseded to 05934000)

$2.49

$

Usually ships in 4-12 days

0

28

Gravely 180020

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

29

Gravely 046149

BRAKE STOP W/ DECAL
(Superseded to 59000500)

$

$

Not available

30

Gravely 046237

CVR,FOOTBOARD L.H.
(Superseded to 08984300)

$11.99

$

Usually ships in 4-12 days

0

31

Gravely 046397

GRMT 1.25X1.5X1.81
(Superseded to 07532400)

$

$

Not available

32

Gravely 051360

GRMT (2.50 HOLE, .187 MAT'L)
(Superseded to 07536600)

$

$

Not available

33

Gravely 046238

CVR,FOOTBOARD R.H.
(Superseded to 08901700)

$5.99

$

Usually ships in 4-12 days

0

34

Gravely 050512

WLDMT,REAR FRAME
(Superseded to 08996800)

$

$

Not available

35

Gravely 046396

GRMT 1.50X1.75X2.12
(Superseded to 07532300)

$

$

Not available

36

Gravely 010174

BSHG-FLG .762X1.0X.580X1.48 NY
(Superseded to 05518400)

$5.49

$

In Stock, Qty 15

0

NS

Gravely 044144

KIT,ARM REST G SERIES

$

$

Not available

NS

Gravely 047490

DECAL,18-H
(Superseded to 05214200)

$

$

Not available

NS

Gravely 047491

DECAL, 20-H
(Superseded to 05214300)

$

$

Not available

NS

Gravely 048964

DECAL - SAFETY INSTRUCTION
(Superseded to 07820400)

$

$

Not available
