51231 - Toro 8" String Trimmer, Electric (SN: 089031744 - 089999999) (1998)

8" String Trimmer, Electric

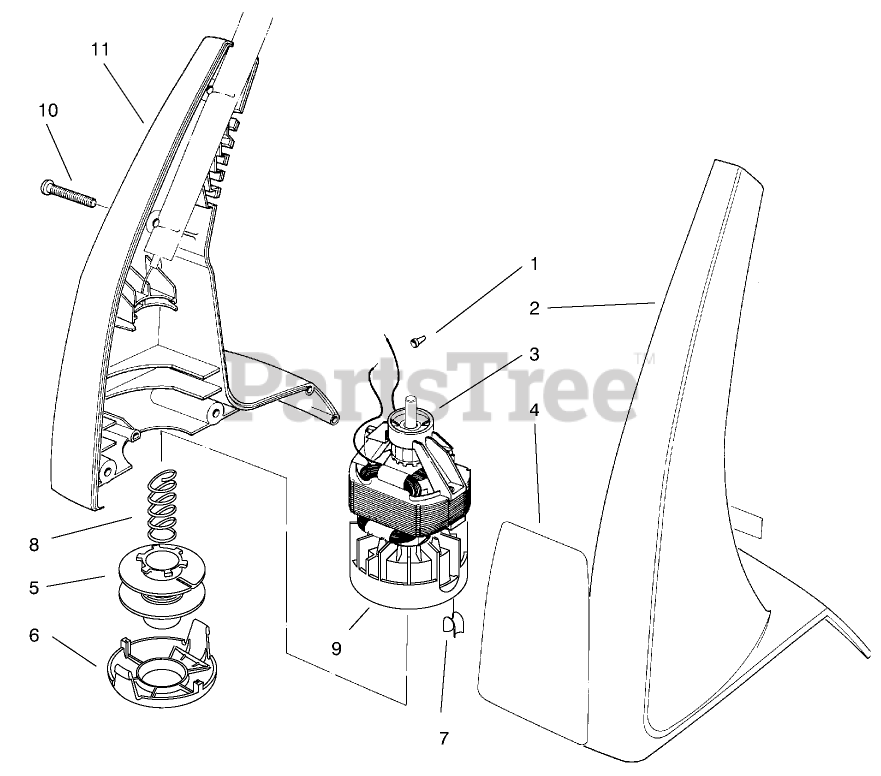

51231 - Toro 8" String Trimmer, Electric (SN: 089031744 - 089999999) (1998) > Parts Diagrams (2) > MOTOR & HOUSING ASSEMBLY

  • Title
218-496

1

CONNECTOR WIRE JOINT

Part# 218-496

OEM Warranty Repair Part for Toro

Not available

98-9260

2

HOUSING - L.H.

Part# 98-9260

OEM Warranty Repair Part for Toro

Not available

98-9272

3

Motor Assembly (Incl. Ref. #7 & 9 )

Part# 98-9272

OEM Warranty Repair Part for Toro

Not available

98-3304

4

DECAL-8" TRIMMER

Part# 98-3304

OEM Warranty Repair Part for Toro

Not available

73-8240

5

SPOOL

Part# 73-8240

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $9.32

73-8250

6

CAP-SMALL

Part# 73-8250

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.95

73-8260

7

EYELET

Part# 73-8260

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.02

73-8270

8

SPRING-COMPRESSION

Part# 73-8270

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.00

9

Drum

Part#

Not available

94-4496

10

SCREW-PPH

Part# 94-4496

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.11

98-9273

11

HOUSING ASM-8"R.H.(SERVICE)

Part# 98-9273

OEM Warranty Repair Part for Toro

Not available

34-3890

30 Ft..050 Dia. Cutting Line

Part# 34-3890 (Superseded to 88011)

Note: Not illustrated

OEM Warranty Repair Part for Toro

Not available

88170

Spool & Line Assembly (Whole Goods)

Part# 88170

Note: Not illustrated

OEM Warranty Repair Part for Toro

Not available
