51235 (910) - Toro String Trimmer, Electric (SN: 008000001 - 008999999) (1988)

String Trimmer, Electric

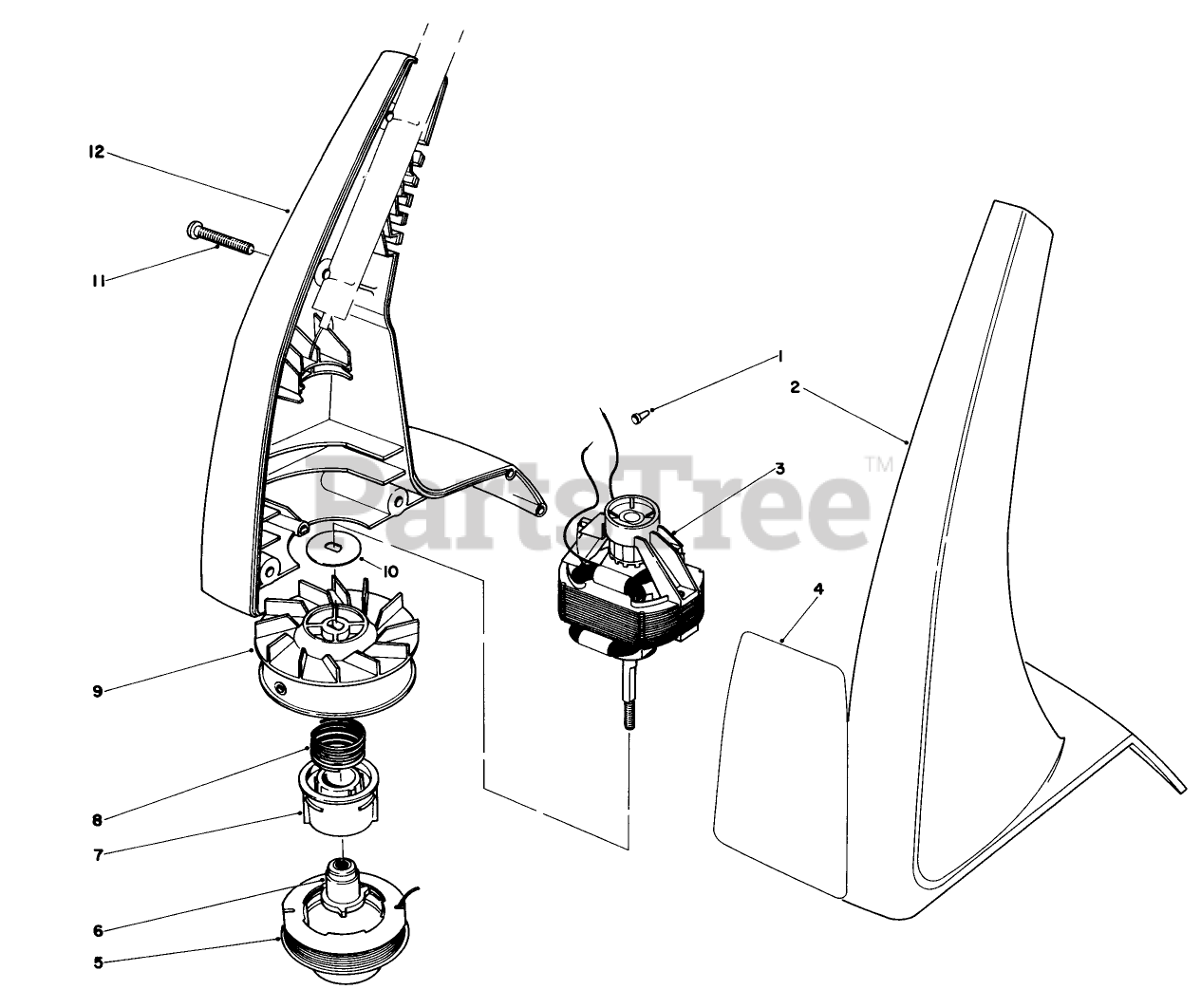

51235 (910) - Toro String Trimmer, Electric (SN: 008000001 - 008999999) (1988) > Parts Diagrams (2) > MOTOR AND HOUSING ASSEMBLY

  • Title
218-496

1

CONNECTOR WIRE JOINT

Part# 218-496

OEM Warranty Repair Part for Toro

Not available

34-9710

2

L.H. HOUSING, 910

Part# 34-9710

OEM Warranty Repair Part for Toro

Not available

34-9500

3

MOTOR, 910 TRIMMER

Part# 34-9500

OEM Warranty Repair Part for Toro

Not available

34-9920

4

910 DECAL

Part# 34-9920

OEM Warranty Repair Part for Toro

Not available

88075

5

Prewound Spool

Part# 88075

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $4.92

34-9870

CAP-SPOOL

Part# 34-9870

Note: Not illustrated

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $9.41

34-3880

Filament Line 30-(.050 Dia.)

Part# 34-3880 (Superseded to 88011)

Note: Not illustrated

OEM Warranty Repair Part for Toro

Not available

34-9770

6

DRIVER

Part# 34-9770

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $10.61

29-8120

7

CORE - SPOOL

Part# 29-8120

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $19.92

34-9860

8

Spring

Part# 34-9860 (Superseded to 29-8230)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.91

34-9850

9

Drum w/Eyelet

Part# 34-9850

OEM Warranty Repair Part for Toro

Not available

34-9790

10

MOTOR WASHER

Part# 34-9790

OEM Warranty Repair Part for Toro

Not available

32104-121

11

Screw

Part# 32104-121 (Superseded to 94-4496)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.11

34-9820

12

Housing-R.H.

Part# 34-9820

OEM Warranty Repair Part for Toro

Not available
