51235 C (910) - Lawn-Boy String Trimmer, Electric (SN: 009000001 - 009999999) (1989) MOTOR AND HOUSING ASSEMBLY Parts Diagram

String Trimmer, Electric

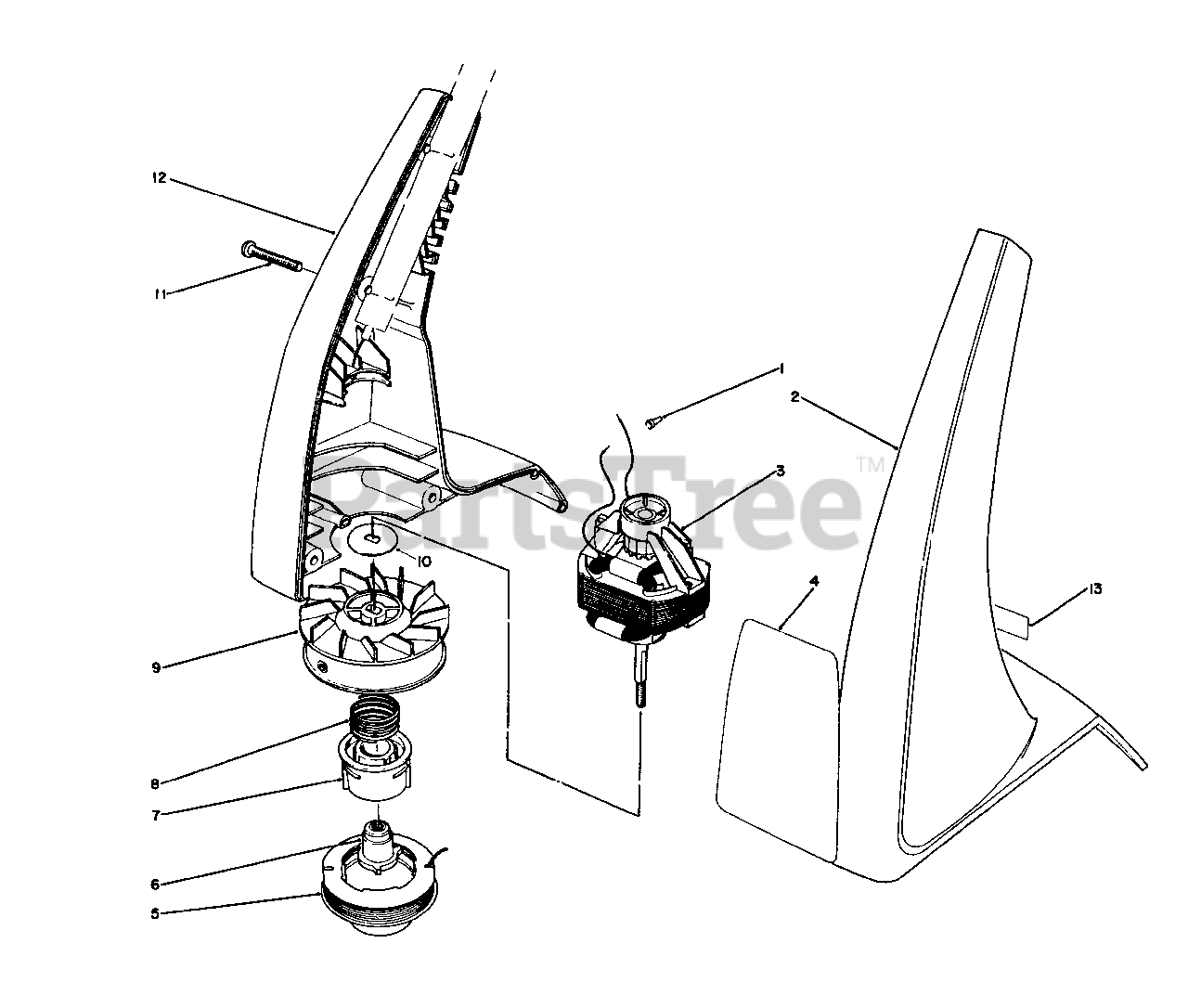

MOTOR AND HOUSING ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 218-496

Connector-Wire

$

$

Not available

2

Lawn-Boy 34-9710

Housing-L.H.

$

$

Not available

3

Lawn-Boy 34-9500

Motor

$

$

Not available

4

Lawn-Boy 73-1190

Decal

$

$

Not available

5

Lawn-Boy 88375

12 Ft. .050 Dia. Cutting Line Prewound on Spool

$

$

Currently unavailable

Lawn-Boy 34-9870

Empty Spool

Note: Not Illustrated

$13.99

$

In Stock, only 1 left!

0

Lawn-Boy 88311

30 Ft. .050 Dia. Cutting Line in Coil

Note: Not Illustrated

$

$

Currently unavailable

6

Lawn-Boy 34-9770

Driver

$15.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 29-8120

Spool Core

$29.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 34-9860

Spring
(Superseded to 29-8230)

$8.99

$

In Stock, only 2 left!

0

9

Lawn-Boy 34-9850

Drum w/Eyelet

$

$

Not available

10

Lawn-Boy 34-9790

Washer-Motor

$

$

Not available

11

Lawn-Boy 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

12

Lawn-Boy 34-9820

Housing-R.H.

$

$

Not available

13

Lawn-Boy 40-2850

Decal-Made In Canada

$

$

Not available
