51235 C (910) - Toro String Trimmer, Electric (SN: 009000001 - 009999999) (1989) HANDLE ASSEMBLY Parts Diagram

String Trimmer, Electric

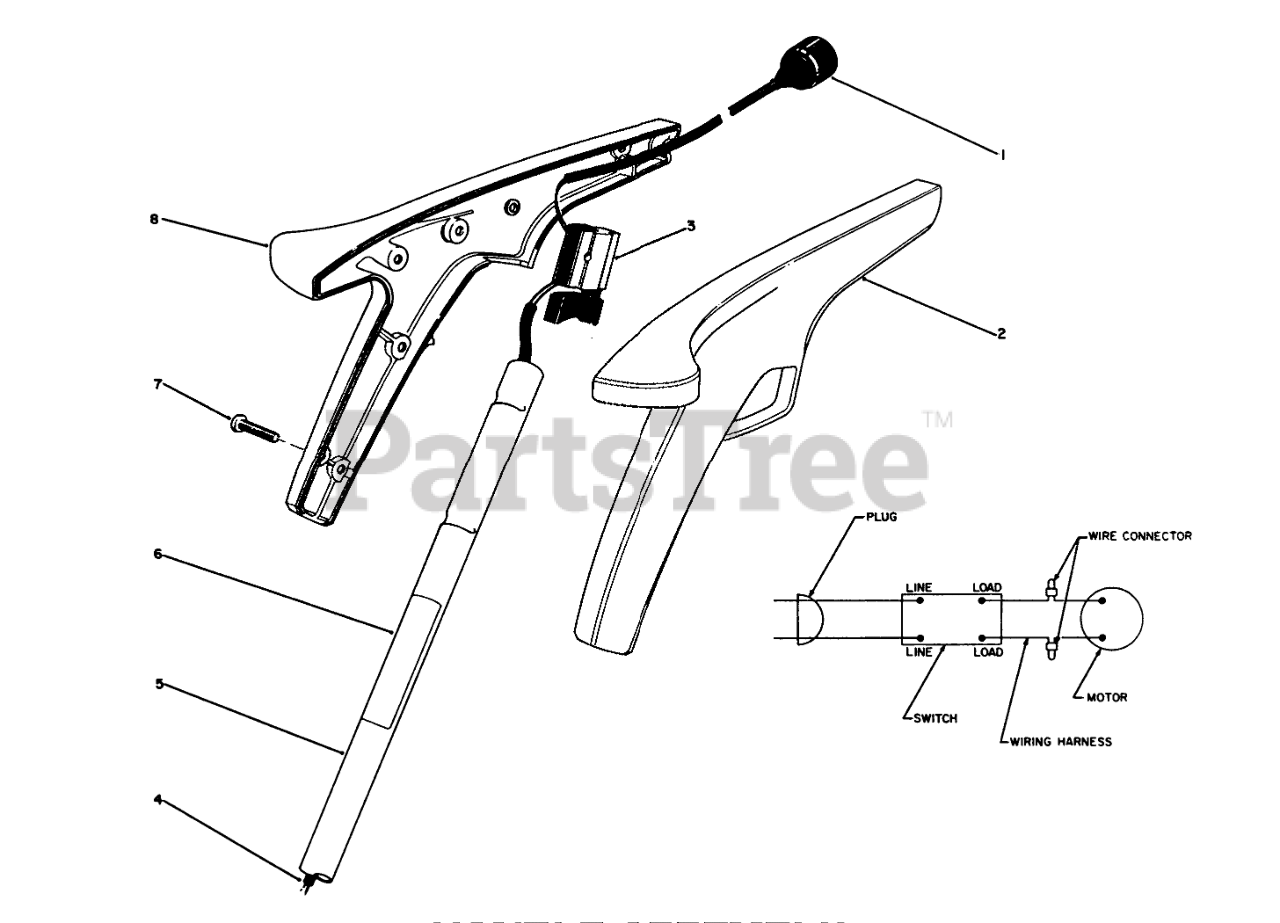

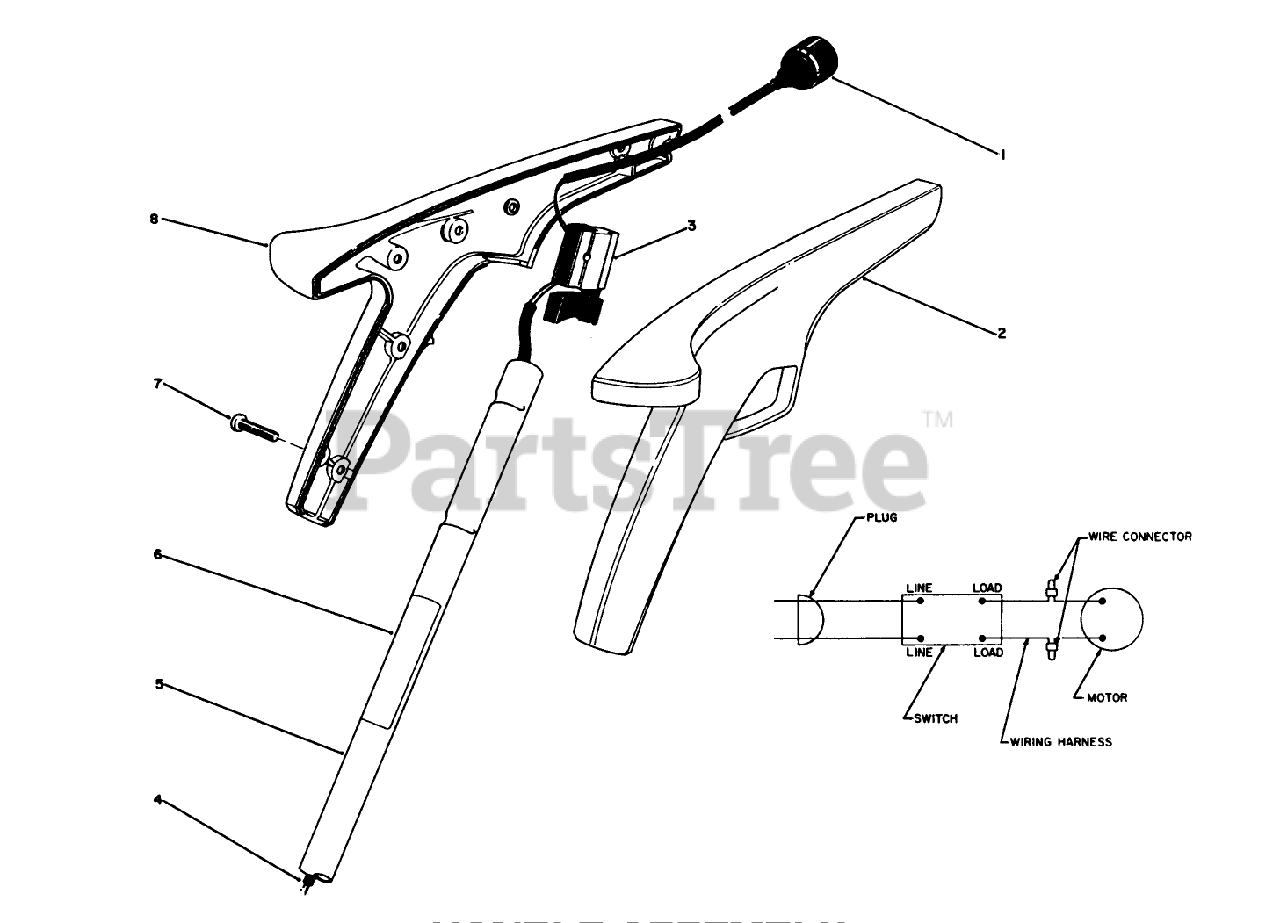

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 46-8851

SUPPLY CORD-CSA

$

$

Not available

2

Toro 61-8120

LH HANDLE GRIP, 910

$

$

Not available

3

Toro 29-7660

SWITCH SINGLE SPEED

$43.99

$

Usually ships in 3-6 days

0

4

Toro 34-9751

WIRE HARNESS

$

$

Not available

5

Toro 61-8920

TUBE EXTENSION

$

$

Not available

6

Toro 34-3270

REP. SERIAL PLT

$

$

Not available

7

Toro 32104-130

#8 X .625" PHILPS PAN H

$1.99

$

Usually ships in 3-6 days

0

8

Toro 61-8110

Grip-R.H.

$

$

Not available
