51249 - Lawn-Boy 25cm String Trimmer, Electric, Canada (SN: 200000001 - 200999999) (2000)

25cm String Trimmer, Electric, Canada

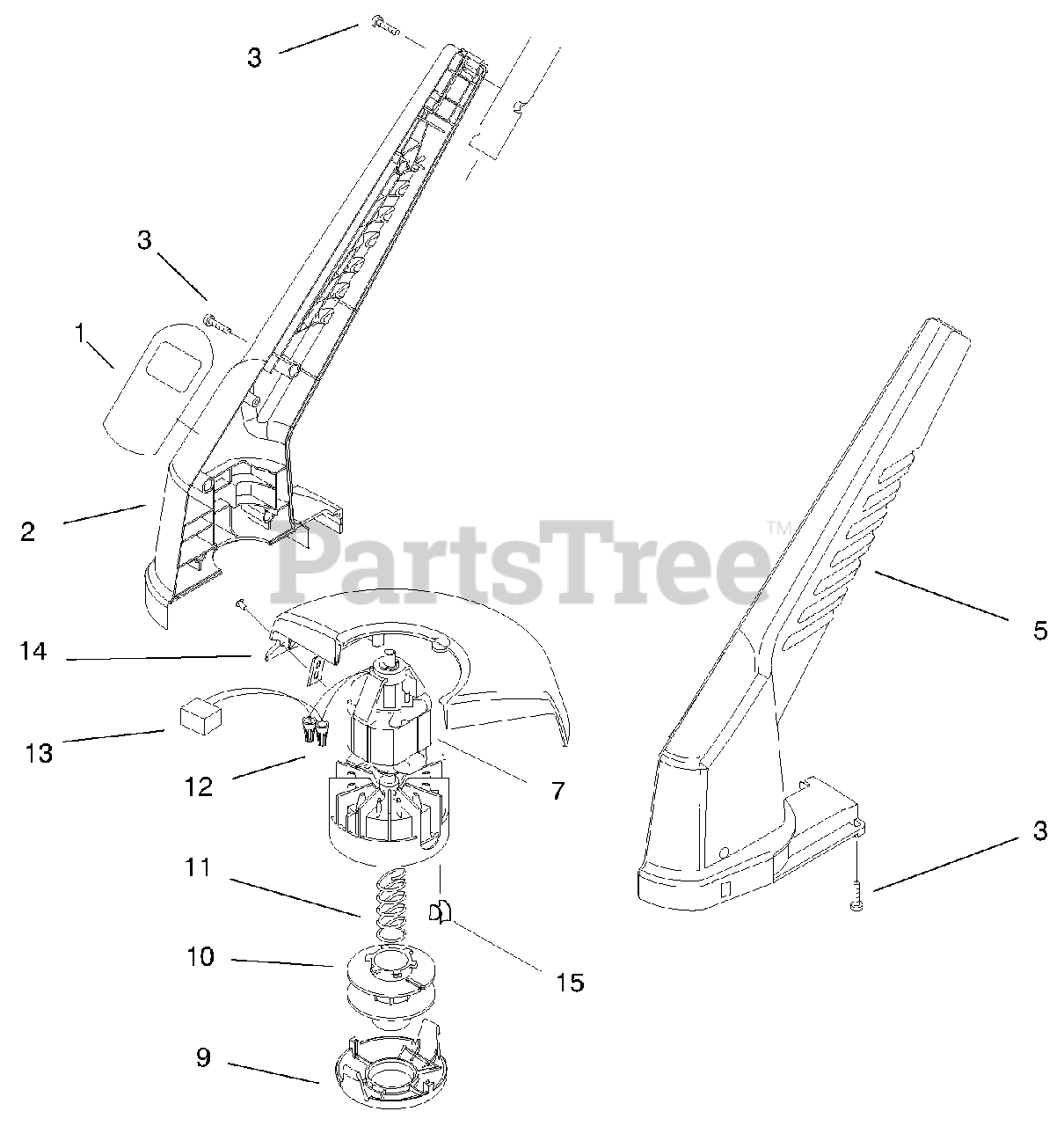

51249 - Lawn-Boy 25cm String Trimmer, Electric, Canada (SN: 200000001 - 200999999) (2000) > Parts Diagrams (2) > MOTOR & HOUSING ASSEMBLY

  • Title
93-4453

1

DECAL 25CM TRIMMER

Part# 93-4453

OEM Warranty Repair Part for Lawn-Boy

Not available

98-1843

2

Housing R.H.

Part# 98-1843 (Superseded to 100-1220)

OEM Warranty Repair Part for Lawn-Boy

Not available

94-4496

3

SCREW-PPH

Part# 94-4496

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 1 business day

Your price: $0.74

98-1845

5

Housing L.H.

Part# 98-1845 (Superseded to 100-1220)

OEM Warranty Repair Part for Lawn-Boy

Not available

93-8709

7

Motor Assembly-Trimmer (Incl. Ref. #15)

Part# 93-8709

OEM Warranty Repair Part for Lawn-Boy

Not available

73-8200

9

CAP

Part# 73-8200

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 1 business day

Your price: $3.95

73-8190

10

SPOOL-LARGE

Part# 73-8190

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 1 business day

Your price: $12.50

73-8220

11

SPRING-COMPRESSION

Part# 73-8220

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 1 business day

Your price: $1.11

73-6570

12

CONNECTOR-NUT, WIRE

Part# 73-6570

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 1 business day

Your price: $0.75

73-9960

13

FILTER - RFI

Part# 73-9960

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 5 to 8 business days

Your price: $9.21

73-9090

14

SHIELD ASM - SERVICE

Part# 73-9090

OEM Warranty Repair Part for Lawn-Boy

Not available

73-8210

15

EYELET

Part# 73-8210

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 1 business day

Your price: $3.60

93-4466

Spool & Line Assembly (Incl. Ref. #10)(Parts)

Part# 93-4466

Note: Not illustrated

OEM Warranty Repair Part for Lawn-Boy

Not available

88176

Spool & Line Assembly (Whole Goods)(Incl. Ref. #10 and 30 ft. of .065 line)

Part# 88176

Note: Not illustrated

Not available
