51250 (1000) - Toro String Trimmer, Electric (SN: 000000001 - 000999999) (1980) HANDLE ASSEMBLY Parts Diagram

String Trimmer, Electric

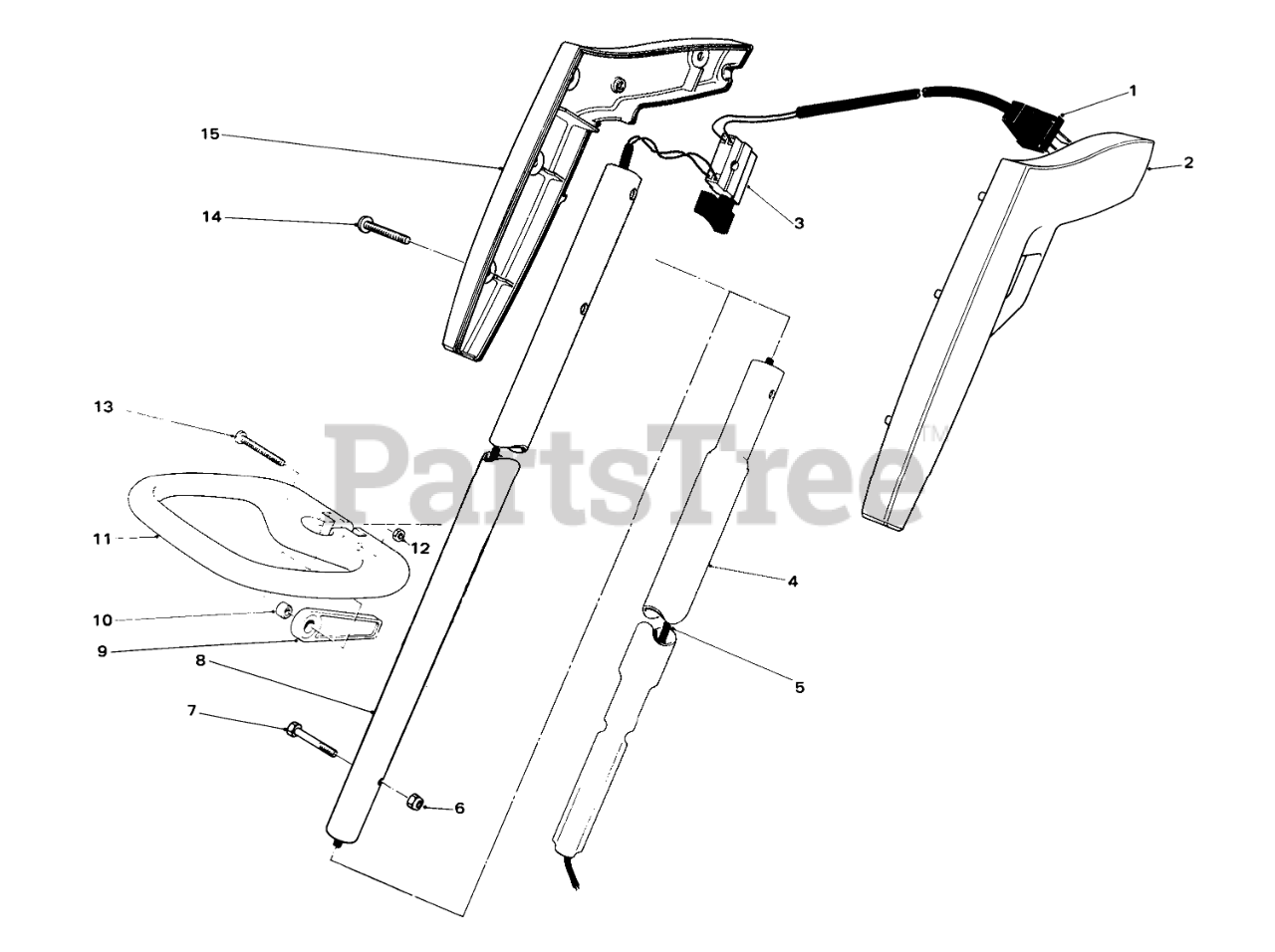

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 33-8570

Power Cord
(Superseded to 46-8851)

$

$

Not available

2

Toro 33-8810

Grip L.H.

$

$

Not available

3

Toro 29-7660

SWITCH SINGLE SPEED

$43.99

$

Usually ships in 3-6 days

0

4

Toro 34-2620

Tube-Lower

$

$

Not available

5

Toro 34-2570

Wire Harness

$

$

Not available

6

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 12

0

7

Toro 33-8950

HEX HD MACHINE SCREW

$

$

Not available

8

Toro 33-8880

Tube-Upper

$

$

Not available

9

Toro 29-7680

Cam Lock

$

$

Not available

10

Toro 29-7690

Spacer

$

$

Not available

11

Toro 34-2600

Support Handle
(Superseded to 61-8902)

$

$

Not available

12

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 10

0

13

Toro 3250-11

Screw

$

$

Not available

14

Toro 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

15

Toro 33-8820

R.H. GRIP

$

$

Not available
