51259 - Lawn-Boy 25cm String Trimmer, Electric, Canada (SN: 079000001 - 079999999) (1997)

25cm String Trimmer, Electric, Canada

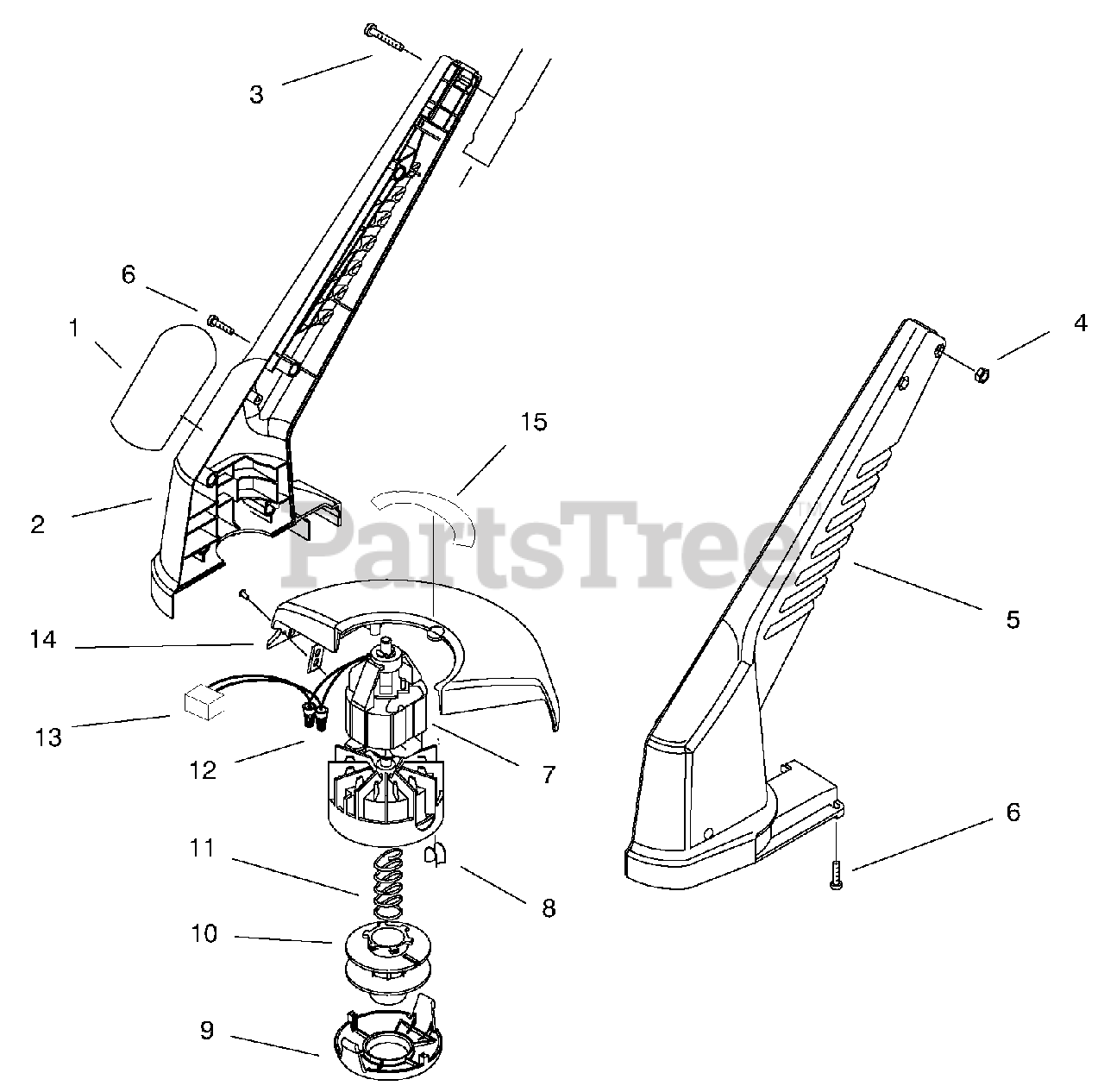

51259 - Lawn-Boy 25cm String Trimmer, Electric, Canada (SN: 079000001 - 079999999) (1997) > Parts Diagrams (2) > MOTOR & HOUSING ASSEMBLY

  • Title
95-5091

1

DECAL-TRIMMER 25CM, AUSTR

Part# 95-5091

OEM Warranty Repair Part for Lawn-Boy

Not available

95-5060

2

HOUSING - RH

Part# 95-5060

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 5 to 8 business days

Your price: $25.28

3250-52

3

SCREW-PPH

Part# 3250-52

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.87

3217-44

4

NUT-HEX

Part# 3217-44

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.92

95-5059

5

HOUSING - LH

Part# 95-5059

OEM Warranty Repair Part for Lawn-Boy

Not available

94-4496

6

SCREW-PPH

Part# 94-4496

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 1 business day

Your price: $0.74

93-8709

7

Motor Assembly-Trimmer (Incl. Ref. #8)

Part# 93-8709

OEM Warranty Repair Part for Lawn-Boy

Not available

73-8210

8

EYELET

Part# 73-8210

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 1 business day

Your price: $3.60

73-8200

9

CAP

Part# 73-8200

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 1 business day

Your price: $3.95

73-8190

10

SPOOL-LARGE

Part# 73-8190

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 1 business day

Your price: $12.50

73-8220

11

SPRING-COMPRESSION

Part# 73-8220

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 1 business day

Your price: $1.11

73-6570

12

CONNECTOR-NUT, WIRE

Part# 73-6570

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 1 business day

Your price: $0.75

73-9960

13

FILTER - RFI

Part# 73-9960

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 5 to 8 business days

Your price: $9.21

73-9090

14

SHIELD ASM - SERVICE

Part# 73-9090

OEM Warranty Repair Part for Lawn-Boy

Not available

95-4446

Spool & Line Assembly (Incl. Ref. #10)(Parts)

Part# 95-4446

Note: Not illustrated

OEM Warranty Repair Part for Lawn-Boy

Not available

88197

Spool & Line Assembly (Whole Goods)(Ryobi Model #165915)

Part# 88197

Note: Not illustrated

Not available

95-5099

15

DECAL-SHIELD,TRIMMER,AUS

Part# 95-5099

OEM Warranty Repair Part for Lawn-Boy

Not available
