51303 - Lawn-Boy 15" String Trimmer, Electric (SN: 099000001 - 099999999) (1999) MOTOR & HOUSING ASSEMBLY Parts Diagram

15" String Trimmer, Electric

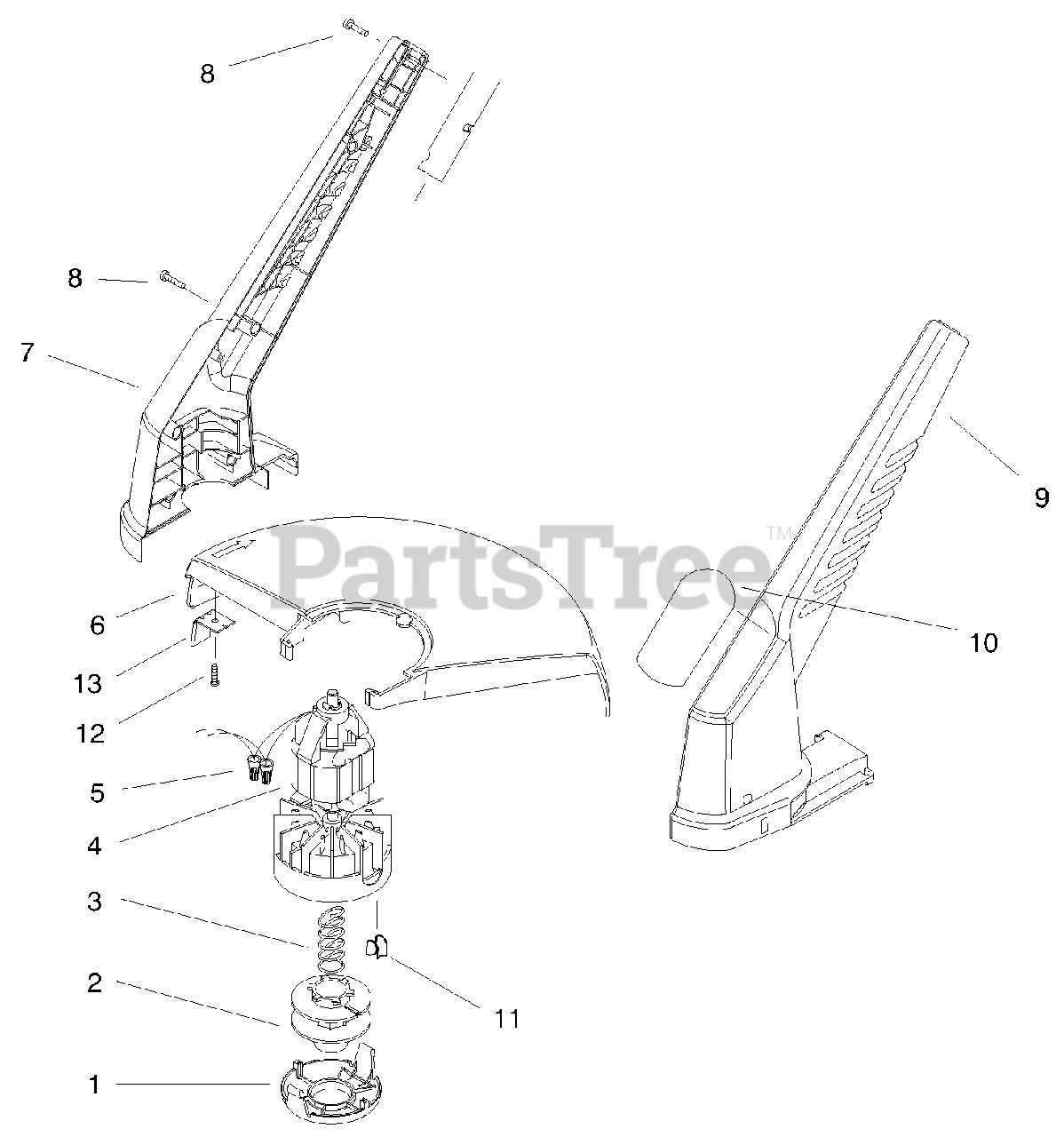

MOTOR & HOUSING ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 73-8200

Cap

$

$

Not available

2

Lawn-Boy 73-8190

Spool

$19.99

$

In Stock, Qty 19

0

3

Lawn-Boy 73-8220

Spring

$1.49

$

In Stock, Qty 20+

0

4

Lawn-Boy 73-9052

Motor Assembly (Incl. Ref. #11)

$186.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 73-6570

Connector-Wire Nut

$1.49

$

In Stock, only 2 left!

0

6

Lawn-Boy 98-9274

Shield Asm.-15" (Incl. Ref. #12 and 13)

$

$

Not available

7

Lawn-Boy 98-1841

Housing R.H.

$

$

Not available

8

Lawn-Boy 94-4496

Screw-Pan Hd.

$1.49

$

In Stock, Qty 20+

0

9

Lawn-Boy 98-1842

Housing L.H.

$

$

Not available

10

Lawn-Boy 98-3307

Decal-15" Trimmer

$

$

Not available

11

Lawn-Boy 73-8210

Eyelet

$5.49

$

In Stock, Qty 8

0

12

Lawn-Boy 94-6961

Screw

$1.49

$

In Stock, only 3 left!

0

13

Lawn-Boy 98-1848

Blade

$

$

Not available

Lawn-Boy 88175

Spool & Line Assembly (Whole Goods)(Incl. Ref. #2 and 30 ft. or .065in. line)

Note: Not Illustrated

$10.38

$

In Stock, only 4 left!

0
