51309 - Toro 10" String Trimmer, Electric (SN: 099000001 - 099999999) (1999) MOTOR & HOUSING ASSEMBLY Parts Diagram

10" String Trimmer, Electric

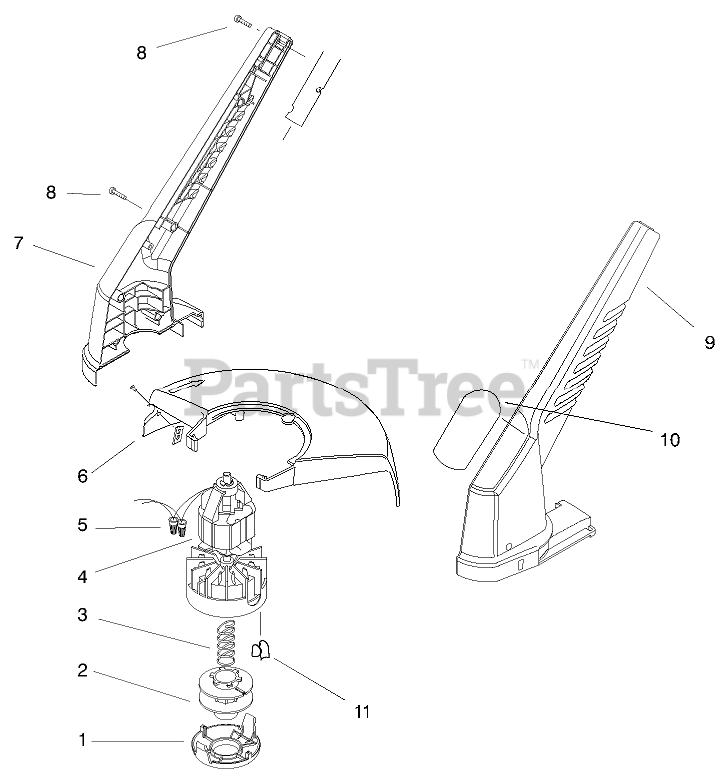

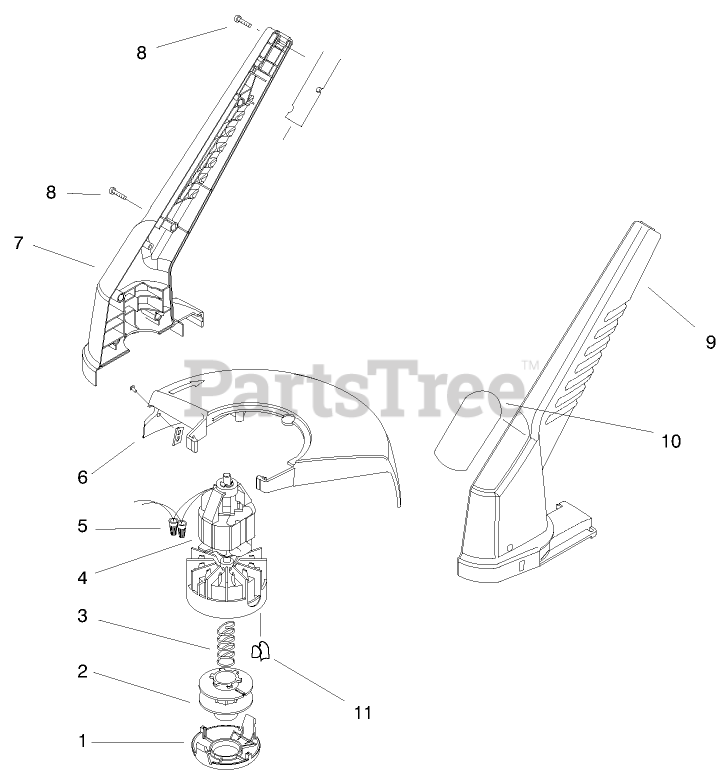

MOTOR & HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 73-8200

CAP

$

$

Not available

2

Toro 73-8190

SPOOL-LARGE

$20.99

$

In Stock, only 2 left!

0

3

Toro 73-8220

SPRING-COMPRESSION

$1.49

$

In Stock, Qty 20+

0

4

Toro 73-9050

Motor Assembly (Includes Ref. #11)

$222.99

$

Usually ships in 3-6 days

0

5

Toro 73-6570

CONNECTOR-NUT, WIRE

$1.49

$

In Stock, only 2 left!

0

6

Toro 98-7182

SHIELD ASSEMBLY-11"
(Superseded to 73-9090)

$

$

Not available

7

Toro 98-1841

HOUSING-RH

$

$

Not available

8

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

9

Toro 98-1842

HOUSING-LH

$

$

Not available

10

Toro 98-9266

DECAL-10" TRIMMER

$

$

Not available

11

Toro 73-8210

EYELET

$5.49

$

In Stock, Qty 8

0

Toro 88175

Spool & Line Assembly (Whole Goods)(Incl. Ref. #2 and 30 ft. of .065 line)

Note: Not illustrated

$24.99

$

In Stock, Qty 20+

0
