51310 (1100) - Toro String Trimmer, Electric (SN: 000000001 - 000999999) (1980)

String Trimmer, Electric

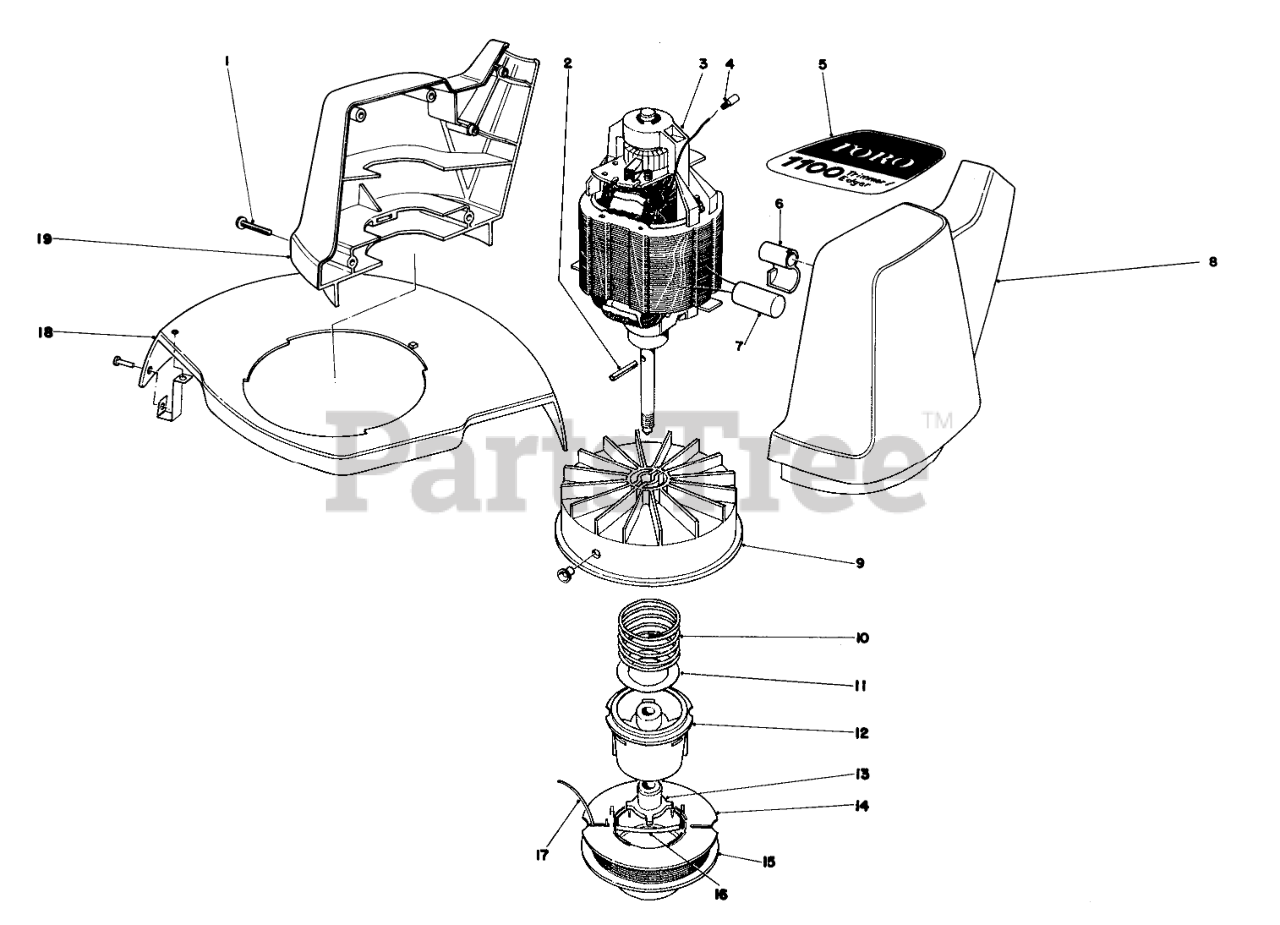

51310 (1100) - Toro String Trimmer, Electric (SN: 000000001 - 000999999) (1980) > Parts Diagrams (2) > MOTOR & HOUSING ASSEMBLY

  • Title
32104120

1

Screws

Part# 32104120

OEM Warranty Repair Part for Toro

Currently unavailable

32121-88

2

COIL PIN

Part# 32121-88

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $5.67

33-7780

3

Motor

Part# 33-7780

OEM Warranty Repair Part for Toro

Not available

218-496

4

CONNECTOR WIRE JOINT

Part# 218-496

OEM Warranty Repair Part for Toro

Not available

33-8230

5

DECAL - TORO 1100

Part# 33-8230

OEM Warranty Repair Part for Toro

Not available

33-7840

6

Clamp-Suppressor

Part# 33-7840

OEM Warranty Repair Part for Toro

Not available

33-7320

7

Suppressor

Part# 33-7320

OEM Warranty Repair Part for Toro

Not available

29-7590

8

Left Motor Housing

Part# 29-7590

OEM Warranty Repair Part for Toro

Not available

33-8970

9

DRUM W/EYELET

Part# 33-8970

OEM Warranty Repair Part for Toro

Not available

29-7130

10

SPRING COMPRESSION

Part# 29-7130

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $6.45

3256-42

11

WASHER-FLAT

Part# 3256-42

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.92

33-6230

12

SPOOL CORE

Part# 33-6230

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $24.62

29-7140

13

Driver

Part# 29-7140 (Superseded to 42-6050)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $15.80

29-7380

14

Empty SPooI

Part# 29-7380 (Superseded to 29-7385)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $6.98

88005

15

Cutting Line (50 .065" Dia.)

Part# 88005

OEM Warranty Repair Part for Toro

Not available

33-8940

16

SADDLE-SPOOL CAP

Part# 33-8940

OEM Warranty Repair Part for Toro

Not available

88003

17

LINE-FILIMENT

Part# 88003

OEM Warranty Repair Part for Toro

Not available

29-7370

18

Shield with Cut Off Blade

Part# 29-7370

OEM Warranty Repair Part for Toro

Not available

29-7600

19

Right Motor Housing

Part# 29-7600

OEM Warranty Repair Part for Toro

Not available
