51315 (1100) - Toro String Trimmer, Electric (SN: 000000001 - 000999999) (1980) HANDLE ASSEMBLY Parts Diagram

String Trimmer, Electric

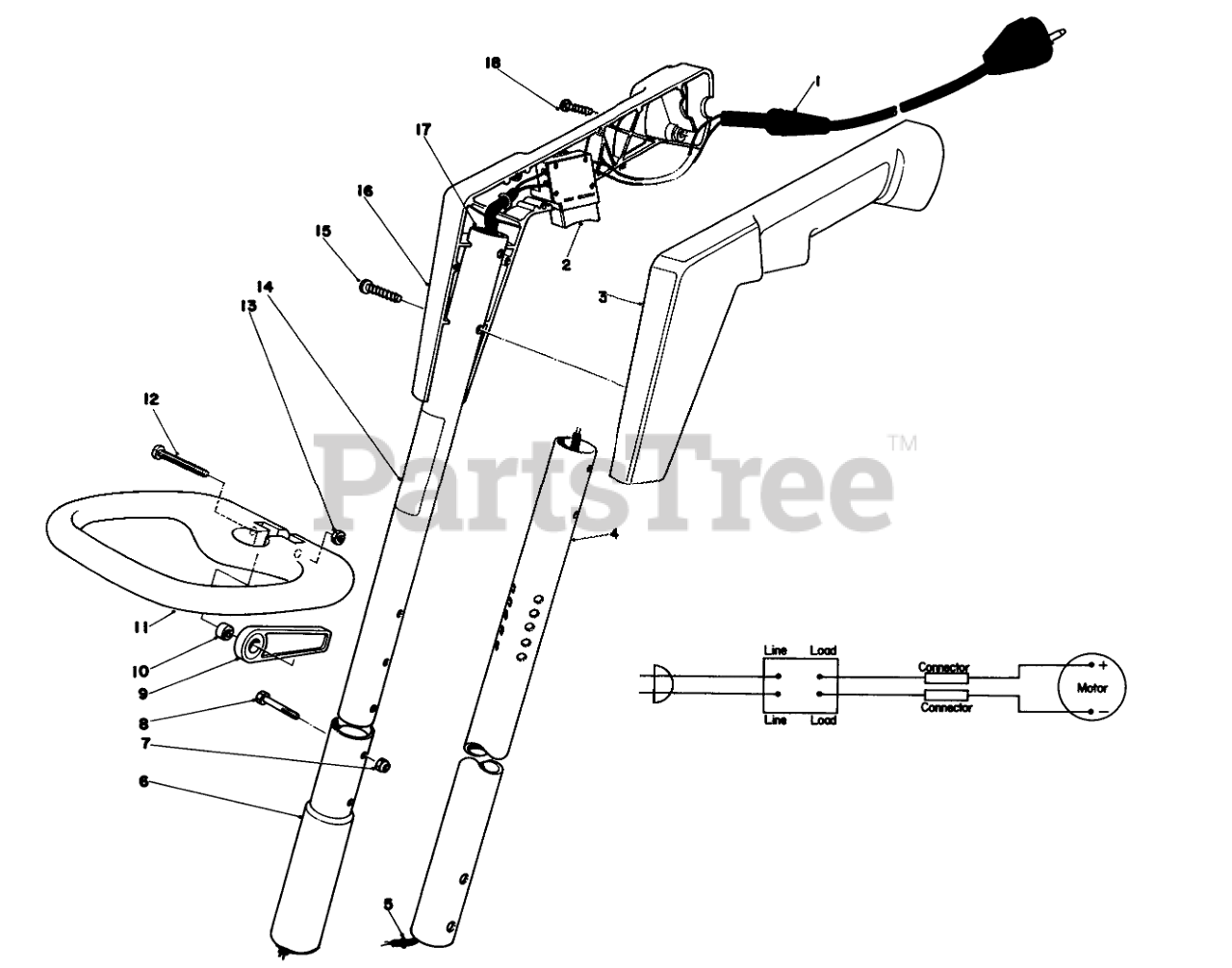

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 33-9300

Wiring Harness-Upper

$

$

Not available

2

Toro 29-7660

SWITCH SINGLE SPEED

$43.99

$

Usually ships in 3-6 days

0

3

Toro 29-7260

Left Hand Grip

$

$

Not available

4

Toro 33-6140

Lower Tubing

$

$

Not available

5

Toro 29-7650

WIRING HARNESS STD

$

$

Not available

6

Toro 33-7120

Rain Shield

$

$

Not available

7

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 12

0

8

Toro 33-7220

Machine Screw

$

$

Not available

9

Toro 29-7680

Cam Lock

$

$

Not available

10

Toro 29-7690

Spacer

$

$

Not available

11

Toro 29-7670

HANDLE ADJUSTABLE

$

$

Not available

12

Toro 3250-11

Screw

$

$

Not available

13

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 10

0

14

Toro 33-9330

Decal-Caution

$

$

Not available

15

Toro 32104-125

Pan Head Thread Forming Screw

$

$

Currently unavailable

16

Toro 29-7250

Right Hand Grip

$

$

Not available

17

Toro 33-9320

Upper Tubing

$

$

Not available

18

Toro 32104-126

Pan Head Thread Forming Screw

$

$

Currently unavailable
