51317 (1100) - Toro String Trimmer, Electric (SN: 001000001 - 001999999) (1981) HANDLE ASSEMBLY Parts Diagram

String Trimmer, Electric

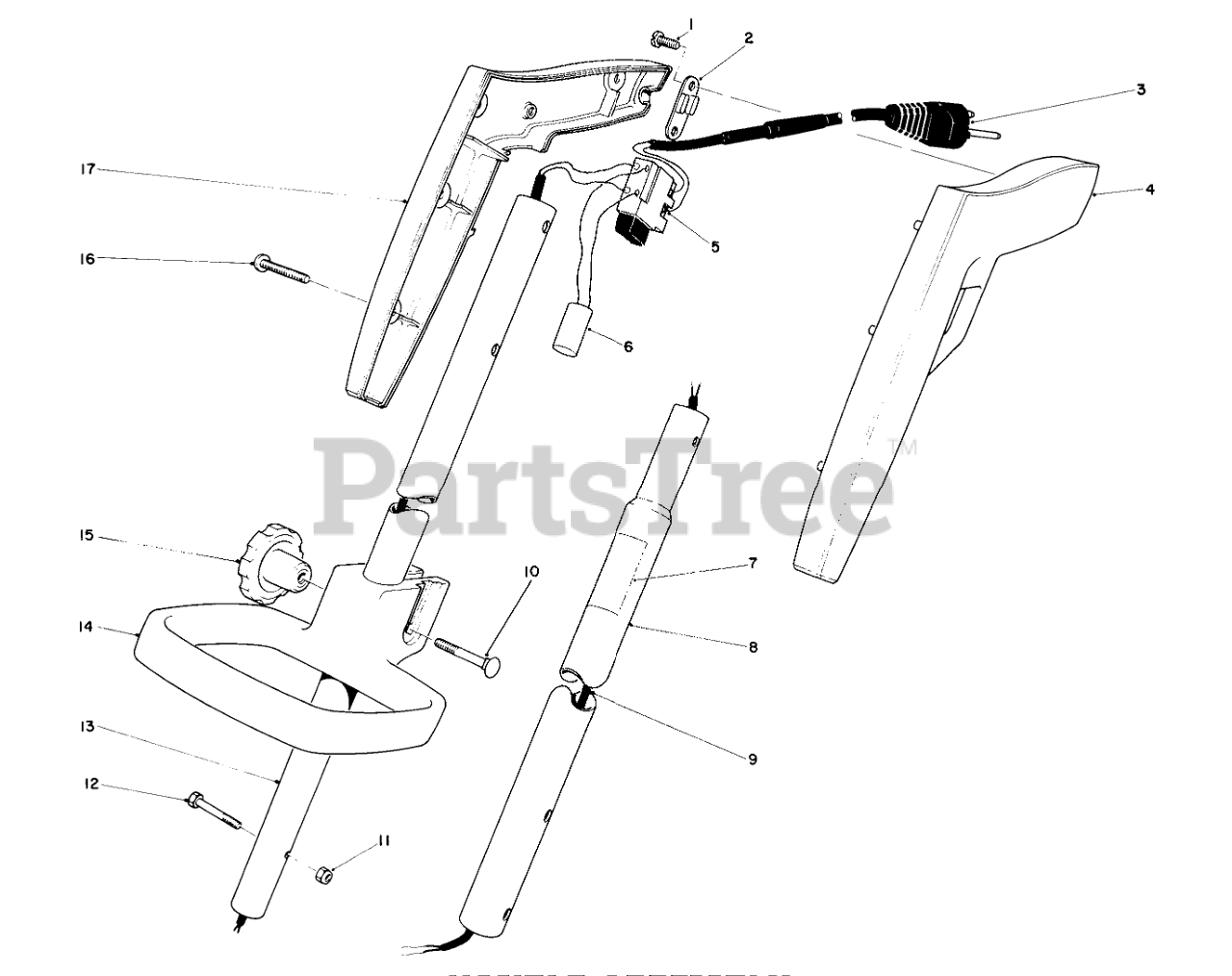

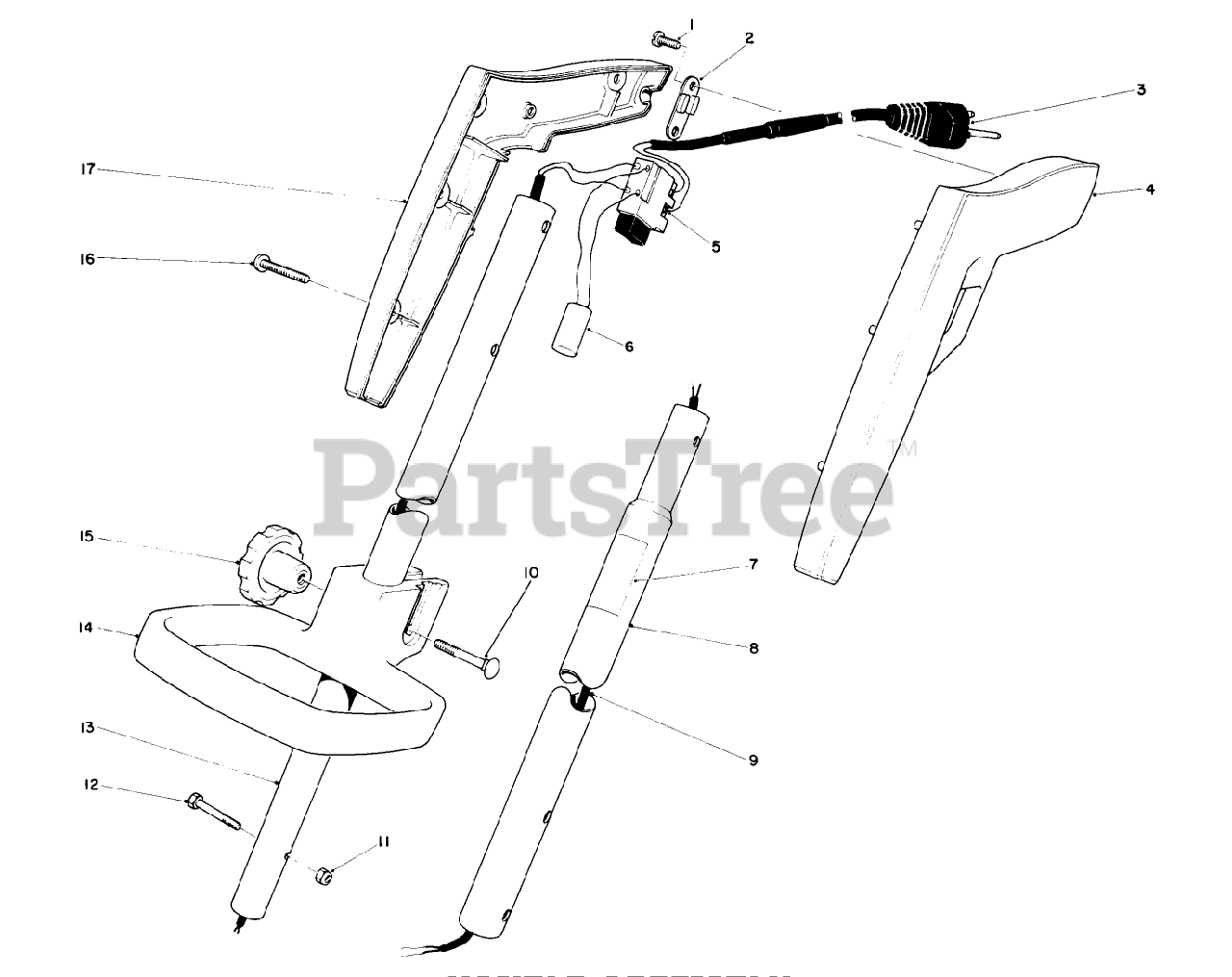

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 32104-118

SCREW-PPH

$1.99

$

Usually ships in 3-6 days

0

2

Toro 33-6850

Clamp

$

$

Not available

3

Toro 34-4690

Power Cord

$

$

Not available

4

Toro 34-4810

Grip-Left Hand

$

$

Not available

5

Toro 34-4660

Switch

$

$

Not available

6

Toro 33-7320

Suppressor

$

$

Not available

7

Toro 34-9040

Caution Decal

$

$

Not available

8

Toro 33-8870

Tube-Lower

$

$

Not available

9

Toro 34-9060

Wiring Harness

$

$

Not available

10

Toro 33-5790

BOLT-CARR

$5.49

$

In Stock, only 2 left!

0

11

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 12

0

12

Toro 33-8950

HEX HD MACHINE SCREW

$

$

Not available

13

Toro 33-8880

Tube-Upper

$

$

Not available

14

Toro 33-8890

ADJUSTABLE HANDLE

$

$

Not available

15

Toro 19-4050

KNOB

$17.99

$

In Stock, Qty 9

0

16

Toro 32104-12

Screw

$

$

Currently unavailable

17

Toro 344820

Grip-Right Hand

$

$

Currently unavailable

Toro 33-8740

Loose Parts

Note: Not illustrated

$

$

Not available
