51318 C (1100) - Toro String Trimmer, Electric (SN: 007000001 - 007999999) (1987) HANDLE ASSEMBLY Parts Diagram

String Trimmer, Electric

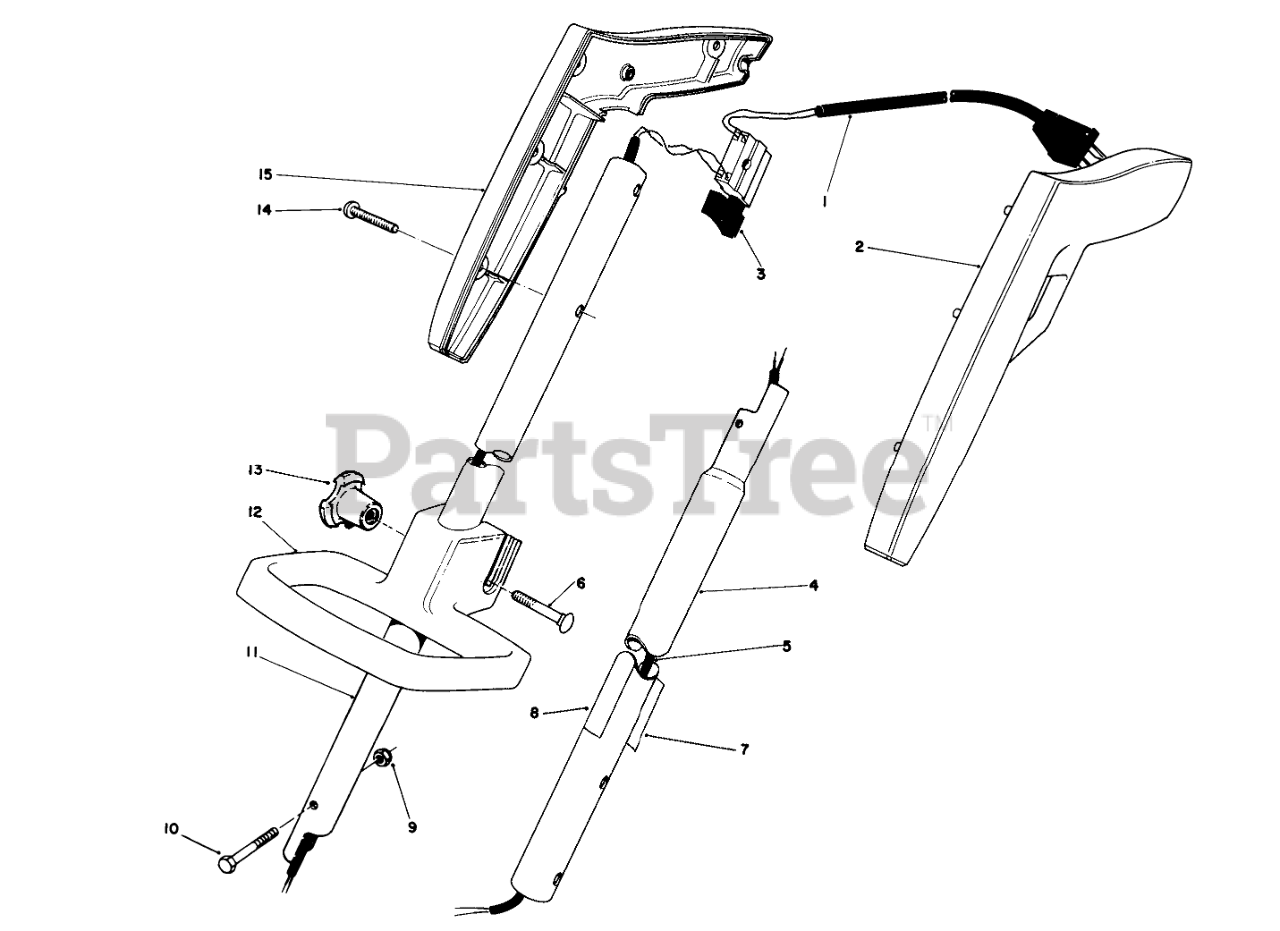

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 33-8570

Power Cord
(Superseded to 46-8851)

$

$

Not available

2

Toro 33-8810

Grip L.H.

$

$

Not available

3

Toro 29-7660

SWITCH SINGLE SPEED

$43.99

$

Usually ships in 3-6 days

0

4

Toro 33-8870

Tube-Lower

$

$

Not available

5

Toro 34-9260

Wiring Harness

$

$

Not available

6

Toro 33-5790

BOLT-CARR

$5.49

$

In Stock, only 2 left!

0

7

Toro 34-3270

REP. SERIAL PLT

$

$

Not available

8

Toro 40-2850

Decal

$

$

Not available

9

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 12

0

10

Toro 33-8950

HEX HD MACHINE SCREW

$

$

Not available

11

Toro 33-8880

Tube-Upper

$

$

Not available

12

Toro 33-8890

ADJUSTABLE HANDLE

$

$

Not available

13

Toro 62-1920

Knob
(Superseded to 73-4740)

$8.49

$

Usually ships in 3-6 days

0

14

Toro 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

15

Toro 33-8820

R.H. GRIP

$

$

Not available
