51324 - Lawn-Boy 12" String Trimmer, Electric (SN: 089000001 - 089999999) (1998) MOTOR & HOUSING ASSEMBLY Parts Diagram
12" String Trimmer, Electric

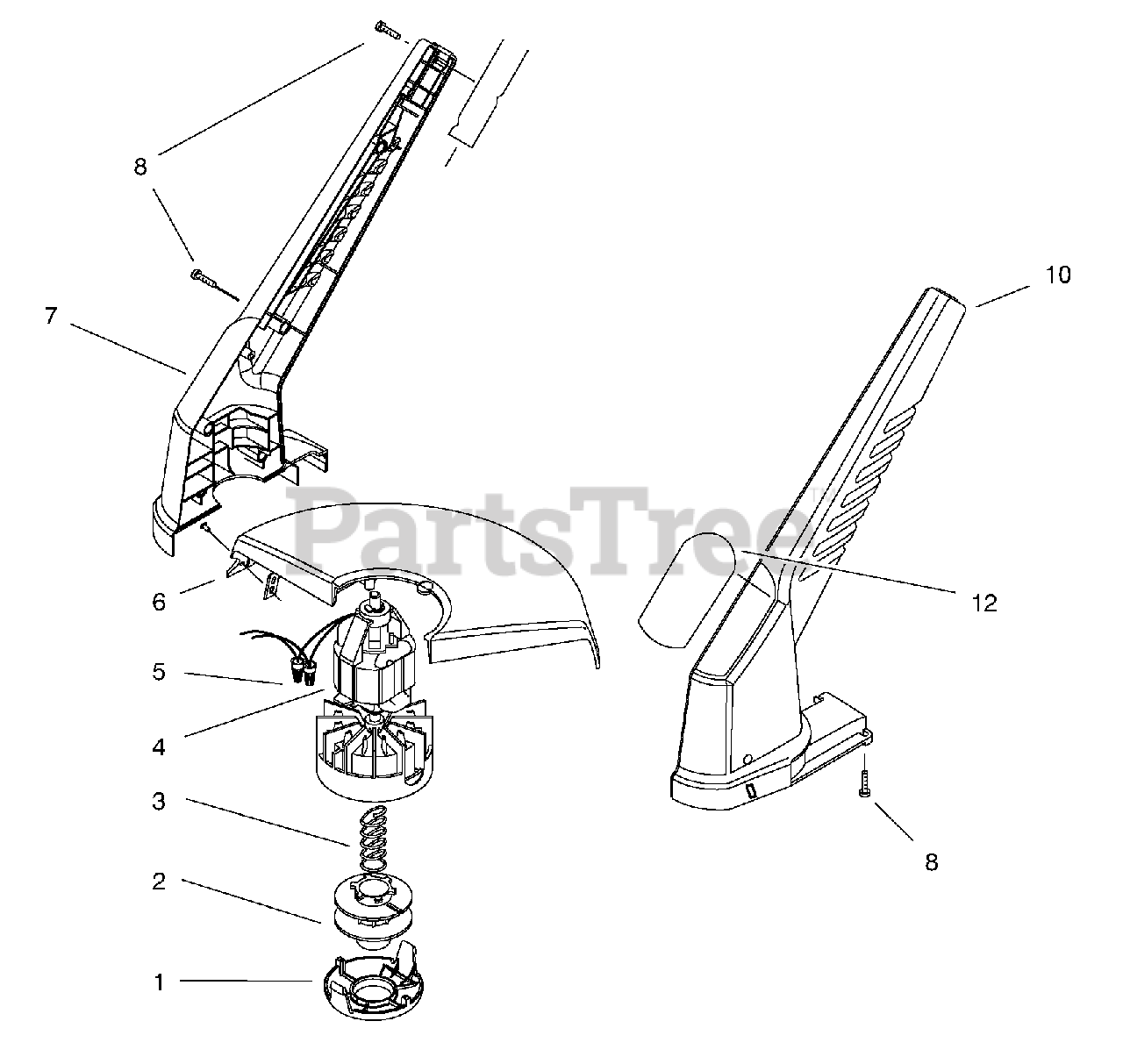

MOTOR & HOUSING ASSEMBLY Parts Diagram
Lawn-Boy 73-8200
Cap
$
$
Not available
Lawn-Boy 73-8190
Spool
$19.99
$
In Stock, Qty 18
Lawn-Boy 73-8220
Spring
$1.49
$
In Stock, Qty 20+
Lawn-Boy 73-9051
Motor Assembly
$
$
Not available
Lawn-Boy 73-6570
Connector-Wire Nut
$1.49
$
In Stock, only 2 left!
Lawn-Boy 73-9091
Shield Asm.
$
$
Not available
Lawn-Boy 98-1841
Housing R.H.
$
$
Not available
Lawn-Boy 94-4496
Screw-Pan Hd. Tapping
$1.49
$
In Stock, Qty 20+
Lawn-Boy 98-1842
Housing L.H.
$
$
Not available
Lawn-Boy 98-3549
Decal-12" Trimmer
$
$
Not available
Lawn-Boy 88175
Spool & Line Assembly (Whole Goods)(Incl. Ref. #2 and 30 ft of .065 line)
Note: Not Illustrated
$10.38
$
In Stock, only 4 left!
