51325 (1100) - Lawn-Boy String Trimmer, Electric (SN: 008000001 - 008999999) (1988) HANDLE ASSEMBLY Parts Diagram

String Trimmer, Electric

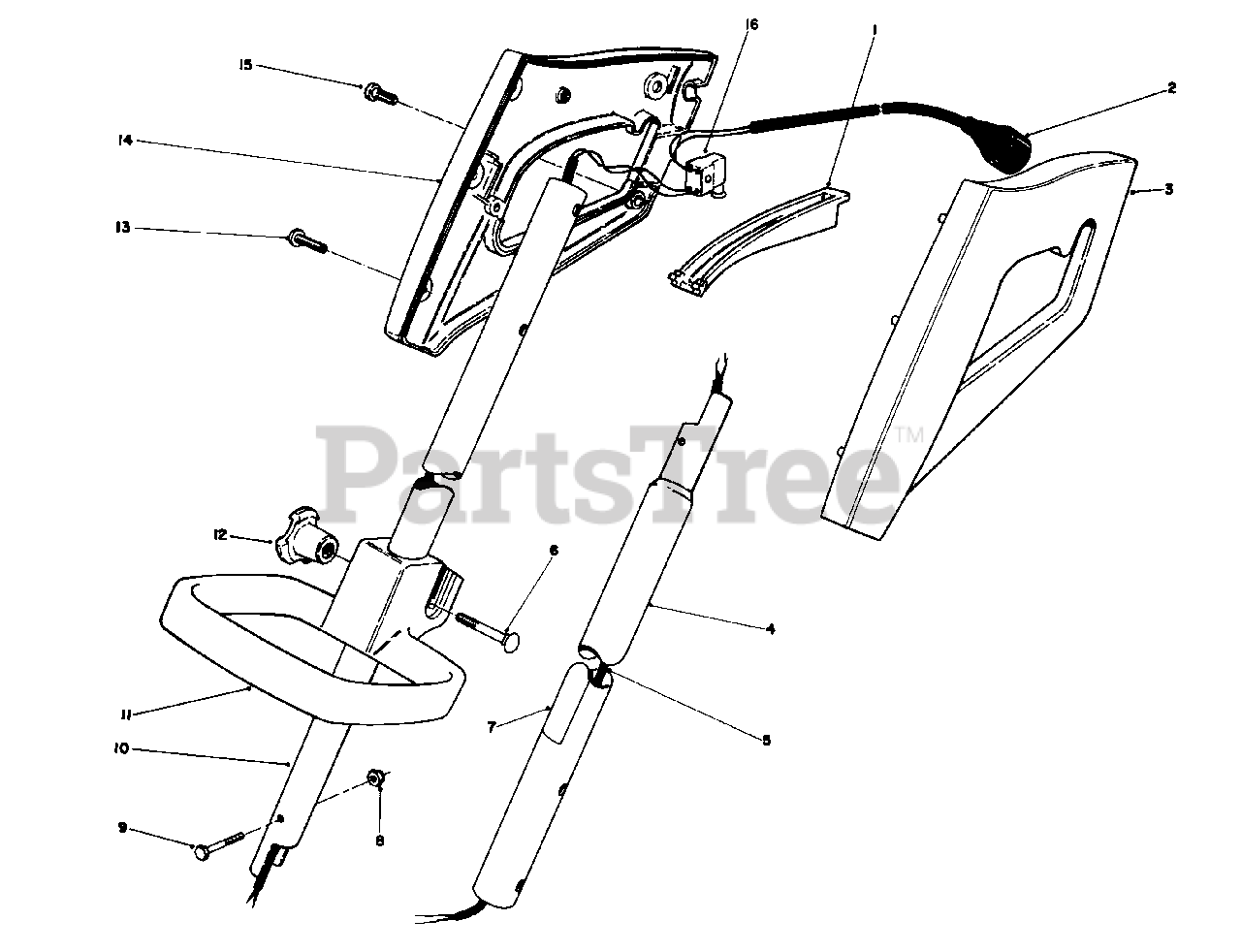

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 64-4540

Bar Switch
(Superseded to 64-4541)

$

$

Not available

2

Lawn-Boy 46-8850

Power Cord
(Superseded to 46-8851)

$

$

Not available

3

Lawn-Boy 64-4530

Grip-Left Handle

$

$

Not available

4

Lawn-Boy 62-1870

Tube-Lower

$

$

Not available

5

Lawn-Boy 62-1813

Wiring Harness

$

$

Not available

6

Lawn-Boy 33-5790

Carriage Bolt

$5.49

$

In Stock, only 2 left!

0

7

Lawn-Boy 34-3270

Decal-Serial No. Replacement

$

$

Not available

8

$1.49

$

In Stock, Qty 18

0

9

Lawn-Boy 33-8950

Machine Screw

$

$

Not available

10

Lawn-Boy 62-1800

Tube-Upper

$

$

Not available

11

Lawn-Boy 61-8900

Adjustable Handle
(Superseded to 61-8902)

$

$

Not available

12

Lawn-Boy 62-1920

Knob
(Superseded to 73-4740)

$8.49

$

Usually ships in 3-6 days

0

13

Lawn-Boy 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

14

Lawn-Boy 64-4520

Grip-Right Handle

$

$

Not available

15

Lawn-Boy 32104-118

Screw-Thread Forming

$1.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 64-4930

Switch-Single Speed
(Superseded to 107-3323)

$16.99

$

In Stock, Qty 9

0
