51325 (1100) - Lawn-Boy String Trimmer, Electric (SN: 009000001 - 009999999) (1989) HANDLE ASSEMBLY Parts Diagram

String Trimmer, Electric

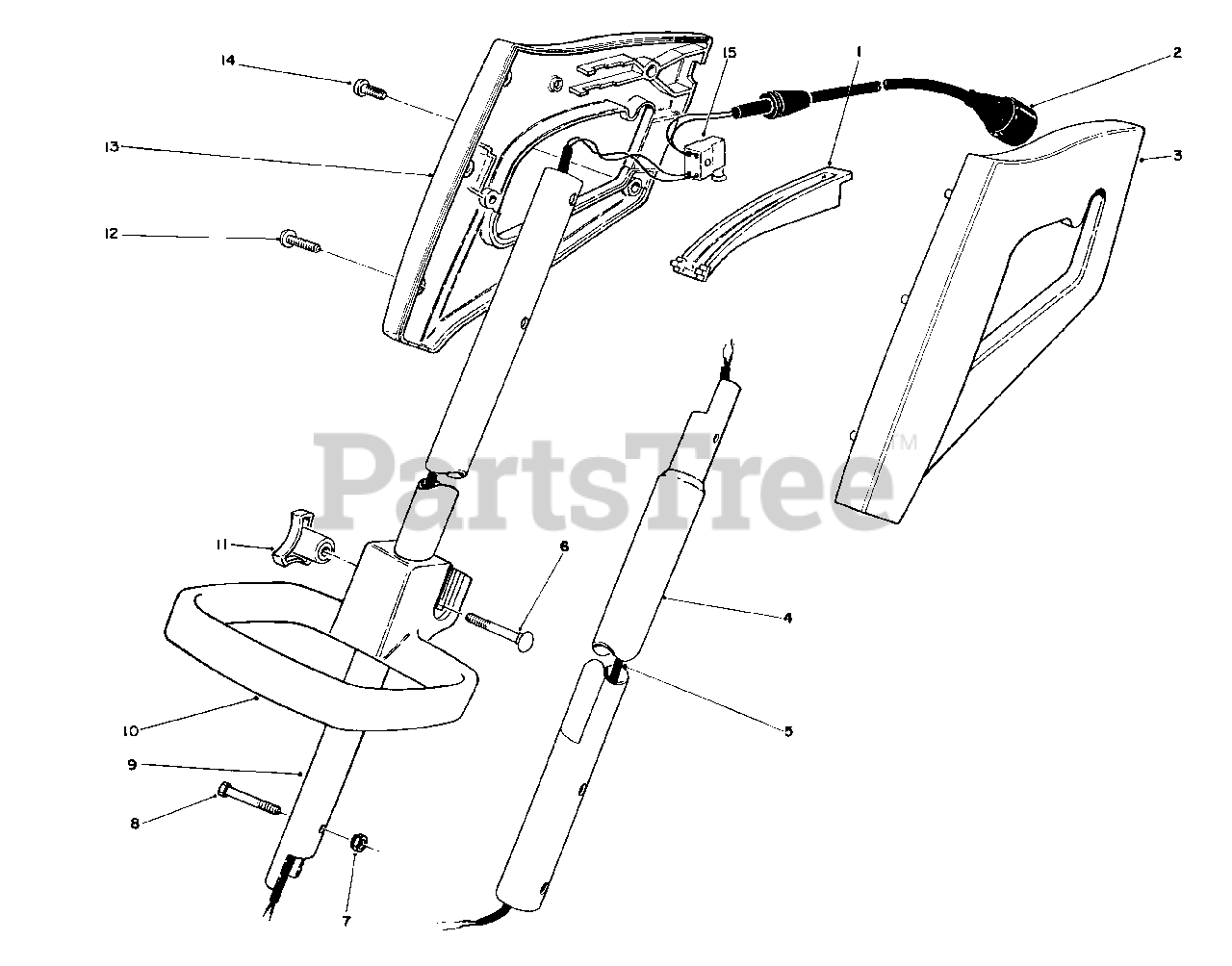

HANDLE ASSEMBLY Parts Diagram

  • Title
1
Usually ships same day

Not available

$

$

2

Lawn-Boy Part# 42-0774

Cord-Power
(Superseded to 42-0776)
Usually ships same day

Not available

$

$

3

Lawn-Boy Part# 73-1121

Grip-Left Handle
Usually ships same day

Not available

$

$

4
Usually ships same day

Not available

$

$

5

Lawn-Boy Part# 62-1813

Wiring Harness
Usually ships same day

Not available

$

$

6

Lawn-Boy Part# 33-5790

Bolt-Carriage
Usually ships in 1 day

$

$3.29

0

Usually ships in 1 day

$

$1.22

0

8

Lawn-Boy Part# 33-8950

Screw-Machine
Usually ships same day

Not available

$

$

9
Usually ships same day

Not available

$

$

10

Lawn-Boy Part# 61-8902

Handle-Adjustable
Usually ships same day

Not available

$

$

Usually ships in 5 to 8 days

$

$6.81

0

12

Lawn-Boy Part# 32104-121

Screw
(Superseded to 94-4496)
Usually ships in 1 day

$

$0.91

0

13

Lawn-Boy Part# 73-1111

Grip-Right Handle
Usually ships same day

Not available

$

$

14

Lawn-Boy Part# 32104-118

Screw-Thread Forming
Usually ships in 5 to 8 days

$

$1.24

0

15

Lawn-Boy Part# 64-4930

Switch-Single Speed
(Superseded to 107-3323)
Usually ships in 1 day

$

$13.22

0

Lawn-Boy Part# 33-8742

Loose Parts (Incl. Ref. #6-8 & 11 page 1 #13 page 2)

Note: Not Illustrated.

Usually ships same day

Not available

$

$
