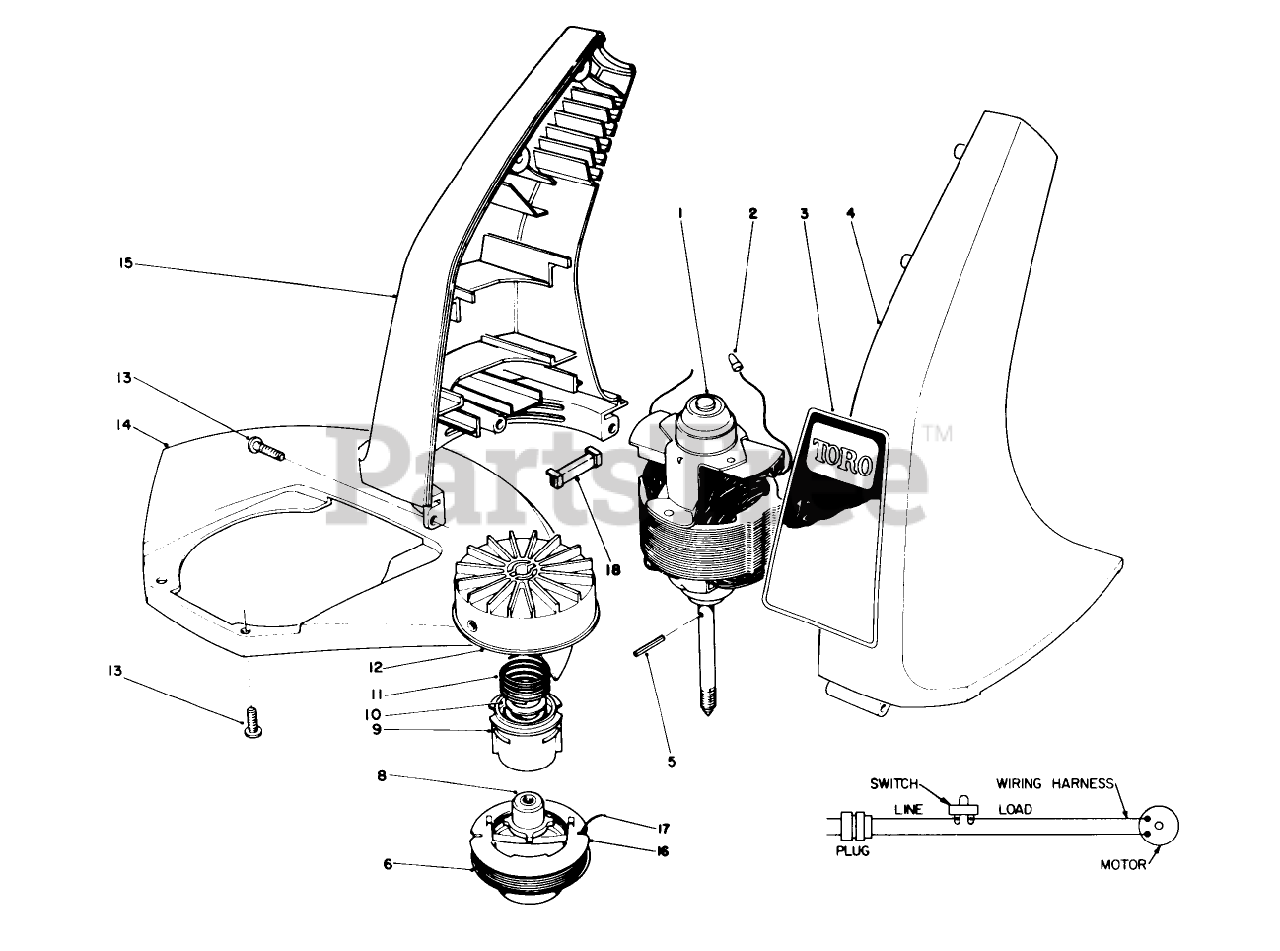

51325 (1100) - Toro String Trimmer, Electric (SN: 020000001 - 029999999) (1992) > Parts Diagrams (2) > MOTOR AND HOUSING ASSEMBLY

Motor

Part# 34-2790

OEM Warranty Repair Part for Toro

CONNECTOR WIRE JOINT

Part# 218-496

OEM Warranty Repair Part for Toro

DECAL, 12" TRIMMER

Part# 73-1170

OEM Warranty Repair Part for Toro

HOUSING,LH,12"/14"TRIMR

Part# 73-5220

OEM Warranty Repair Part for Toro

COIL PIN

Part# 32121-88

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Cutting Line (50 .065" Dia.)

Part# 88005

OEM Warranty Repair Part for Toro

DRIVER

Part# 42-6050

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

SPOOL CORE

Part# 33-6230

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

WASHER-FLAT

Part# 3256-42

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

SPRING COMPRESSION

Part# 29-7130

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

DRUM W/EYELET

Part# 33-8970

OEM Warranty Repair Part for Toro

Screw

Part# 32104-121 (Superseded to 94-4496) 

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

SHIELD ASM-1100 W.H.RED

Part# 33-8832

OEM Warranty Repair Part for Toro

HOUSING,RH,12"/14"TRIMR

Part# 73-5210

OEM Warranty Repair Part for Toro

SPOOL CAP

Part# 29-7385

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

LINE-FILIMENT

Part# 88003

OEM Warranty Repair Part for Toro

INSERT - HOUSING

Part# 73-5120

OEM Warranty Repair Part for Toro
