51349 - Toro 30cm String Trimmer, Electric, Canada (SN: 089000001 - 089999999) (1998) Motor Housing Assembly Parts Diagram

30cm String Trimmer, Electric, Canada

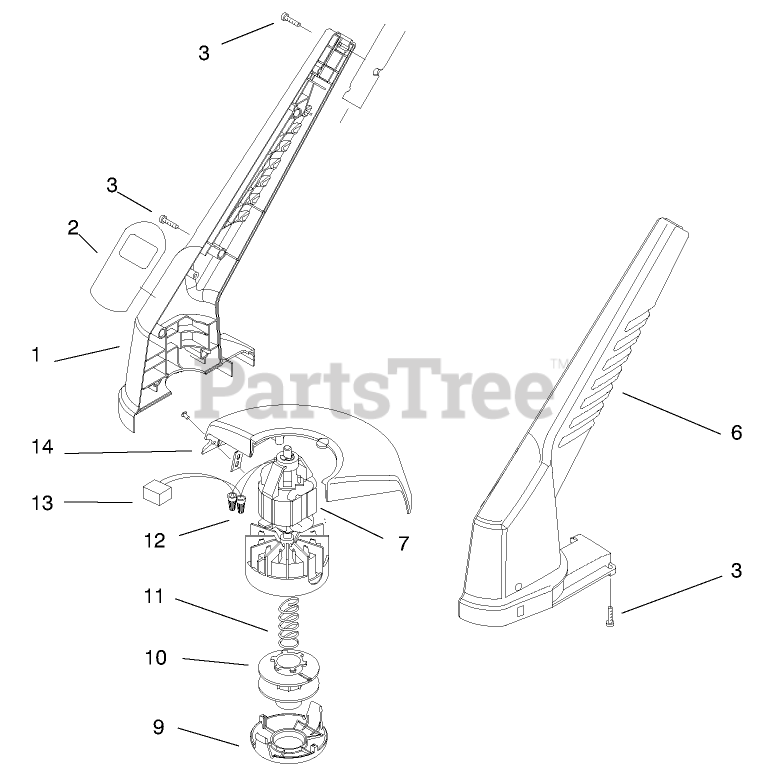

Motor Housing Assembly Parts Diagram

  • Title

1

Toro 98-1843

See Supercession: 100-1220
(Superseded to 100-1220)

$

$

Not available

2

Toro 93-4454

DISCONTINUED

$

$

Not available

3

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

6

Toro 98-1845

See Supercession: 100-1220
(Superseded to 100-1220)

$

$

Not available

7

Toro 93-8709

ASM-DRUM MOTOR (SERVICE)

$

$

Not available

9

Toro 73-8200

CAP

$

$

Not available

10

Toro 73-8490

See Supercession: 88175
(Superseded to 88175)

$24.99

$

In Stock, Qty 20+

0

11

Toro 73-8220

SPRING-COMPRESSION

$1.49

$

In Stock, Qty 20+

0

12

Toro 73-6570

CONNECTOR-NUT, WIRE

$1.49

$

In Stock, only 2 left!

0

13

Toro 73-9960

FILTER - RFI

$

$

Not available

14

Toro 73-9091

DISCONTINUED

$

$

Not available

Toro 93-4466

WHOLEGOODS # 88176 (SUBCONTRACT)

Note: Not illustrated

$

$

Not available

Toro 88176

Spool Line Assembly (Whole Goods)(Incl. Ref. #10 and 30 ft. of .065 line)

Note: Not illustrated

$

$

Currently unavailable
