Lawn-Boy 51350 - Lawn-Boy 14" String Trimmer/Edger, Electric (SN: 200000001 - 200999999) (2000) TRIMMER ASSEMBLY Parts Lookup and Diagrams

Back to Lawn-Boy 51350 - Lawn-Boy 14" String Trimmer/Edger, Electric

Search within parts diagrams

All Diagrams (2) HANDLE ASSEMBLY TRIMMER ASSEMBLY

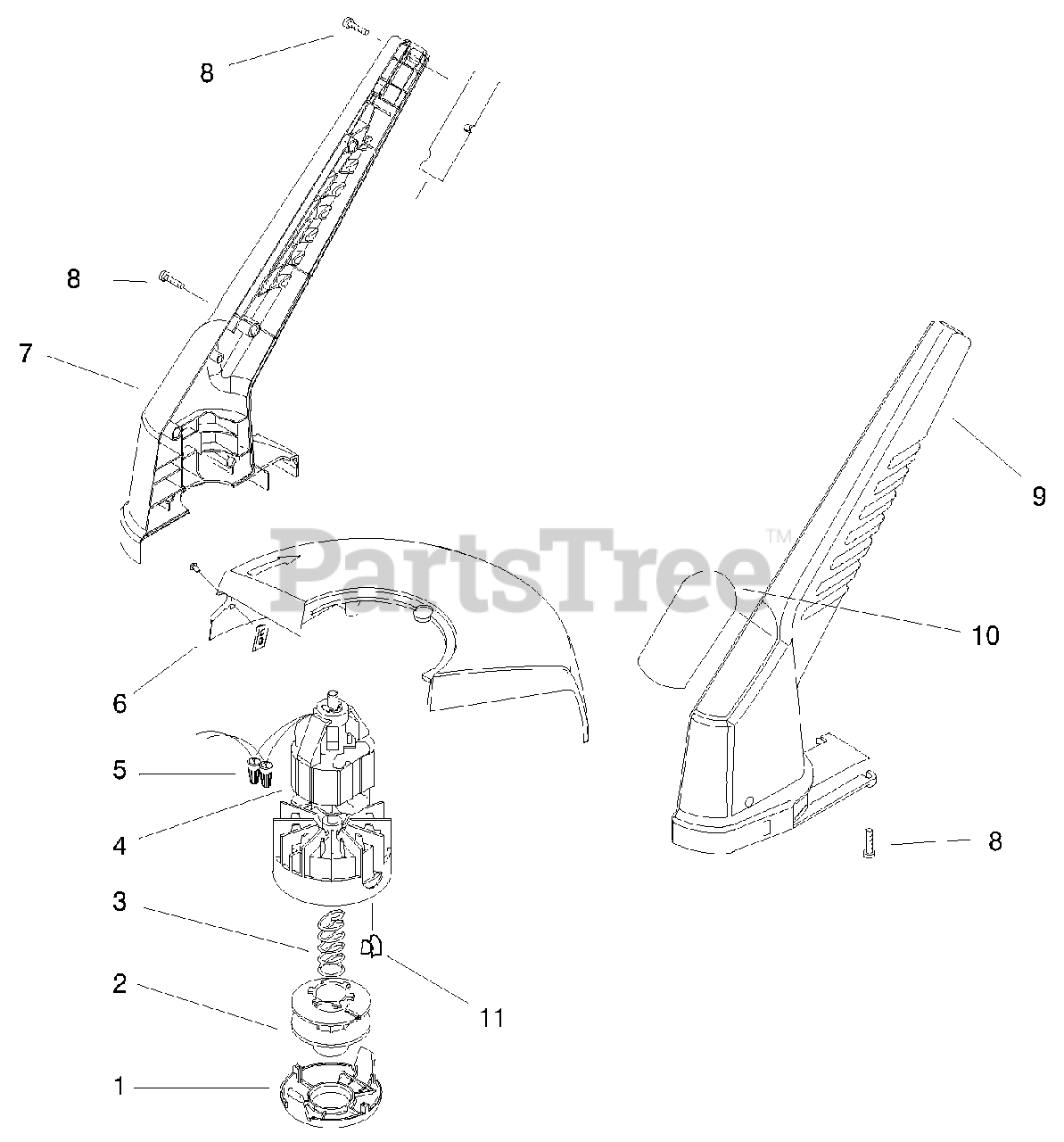

TRIMMER ASSEMBLY Parts

Lawn-Boy 73-8490

Spool with Trimmer Line

Not illustrated

Superseded toLawn-Boy 88175

In Stock, Qty 19

$25.99

Lawn-Boy 73-8200

Spool Retainer Cap

Unavailable

Lawn-Boy 73-8190

Spool, Large

In stock, only 2 left!

$18.99

Lawn-Boy 73-8220

Compression Spring

In stock, 20+ on hand

$1.99

Lawn-Boy 73-9052

ASM-MOTOR,DRUM-SERVICE

Usually ships in 3 - 6 days

$241.99

Lawn-Boy 73-6570

CONNECTOR-NUT, WIRE

Usually ships in 3 - 6 days

$1.49

Lawn-Boy 73-9092

SHIELD ASM - SERVICE

Unavailable

Lawn-Boy 100-1246

HOUSING ASM-TRIMMER(BLACK)

Superseded toLawn-Boy 100-1239

Unavailable

Lawn-Boy 94-4496

Phillips Pan Head Screw

In stock, 20+ on hand

$1.49

Lawn-Boy 100-1245

HOUSING ASM-TRIMMER(BLACK)

Superseded toLawn-Boy 100-1239

Unavailable

Lawn-Boy 100-1249

DECAL-14" TRIM 'N EDGE

Usually ships in 3 - 6 days

$6.99

Lawn-Boy 73-8210

Eyelet

In Stock, Qty 6

$5.49
