51353 - Toro 15" String Trimmer/Edger, Electric (SN: 220000001 - 220999999) (2002) HANDLE ASSEMBLY Parts Diagram

15" String Trimmer/Edger, Electric

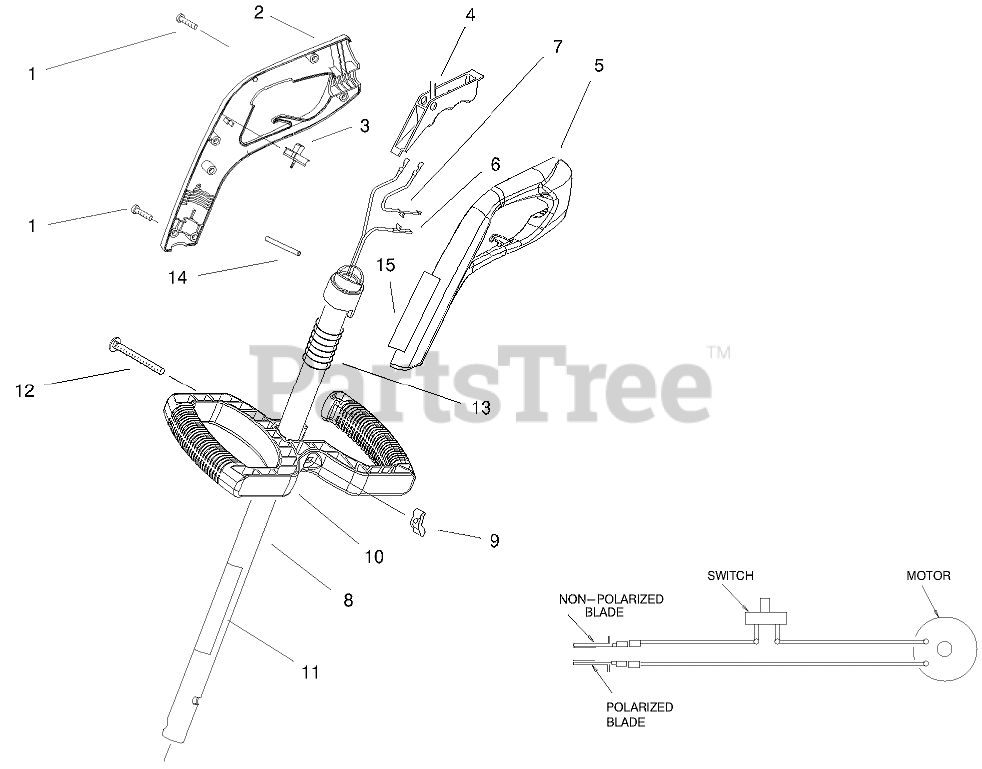

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

2

Toro 100-1229

Handle-RH
(Superseded to 100-1236)

$

$

Not available

3

Toro 73-5600

SWITCH

$

$

Not available

4

Toro 73-8170

TRIGGER

$

$

Not available

5

Toro 100-9787

Handle-LH
(Superseded to 100-1236)

$

$

Not available

6

Toro 100-1237

HARNESS-WIRE

$

$

Not available

7

Toro 100-1240

WIRE ASM-JUMPER
(Superseded to 100-9747)

$

$

Not available

8

Toro 100-1241

TUBE ASSEMBLY

$

$

Not available

9

Toro 32103-30

1/4"-20 STAMP WNG NUT

$1.49

$

In Stock, only 1 left!

0

10

Toro 100-1231

MID-HANDLE

$

$

Not available

11

Toro 98-7184

DECAL-WARNING

$

$

Not available

12

Toro 73-8740

SCREW-CARR.25-20 X 2.50

$2.49

$

Usually ships in 3-6 days

0

13

Toro 100-1242

SPRING-TUBE

$2.93

$

In Stock, only 2 left!

0

14

Toro 100-1243

PIN-HANDLE

$

$

Not available

15

Toro 100-1235

DECAL-INFORMATION

$

$

Not available
