51357 - Lawn-Boy 15" Trim and Edge String Trimmer, Electric (SN: 240000001 - 240999999) (2004) MOTOR AND CUTTING SHIELD ASSEMBLY Parts Diagram
15" Trim and Edge String Trimmer, Electric

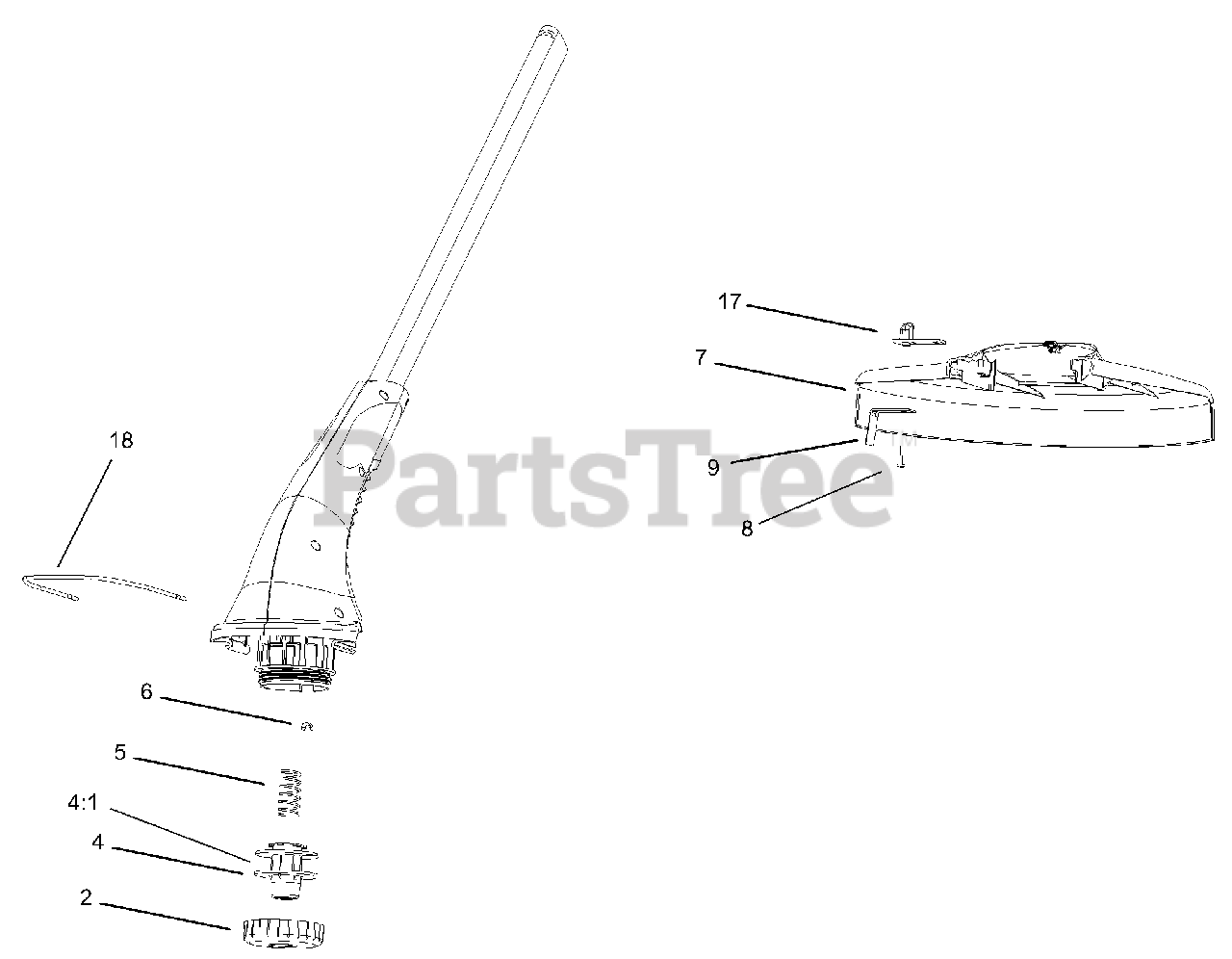

MOTOR AND CUTTING SHIELD ASSEMBLY Parts Diagram
Lawn-Boy 105-9422
Cap-Drum
$9.99
$
In Stock, Qty 8
$10.38
$
In Stock, only 4 left!
Lawn-Boy 73-8190
SPOOL-LARGE
$19.99
$
In Stock, Qty 18
$
$
Not available
Lawn-Boy 105-9423
Spring-Extension
$1.49
$
In Stock, Qty 12
$4.49
$
In Stock, Qty 20+
Lawn-Boy 105-9438
Shield-Variable Cut
$37.99
$
In Stock, only 3 left!
Lawn-Boy 94-4496
SCREW-PPH
$1.49
$
In Stock, Qty 20+
Lawn-Boy 105-9439
Blade-Variable Cut
$2.99
$
In Stock, only 2 left!
Lawn-Boy 105-9440
Slide-Variable Cut
$1.49
$
In Stock, Qty 5
Lawn-Boy 105-9427
Guide-Edge
$10.99
$
In Stock, Qty 20+
