51385 - Gravely GEM Lawn Tractor, 12.5hp Briggs & Stratton, Hydro FRAME Parts Diagram

GEM Lawn Tractor, 12.5hp Briggs & Stratton, Hydro

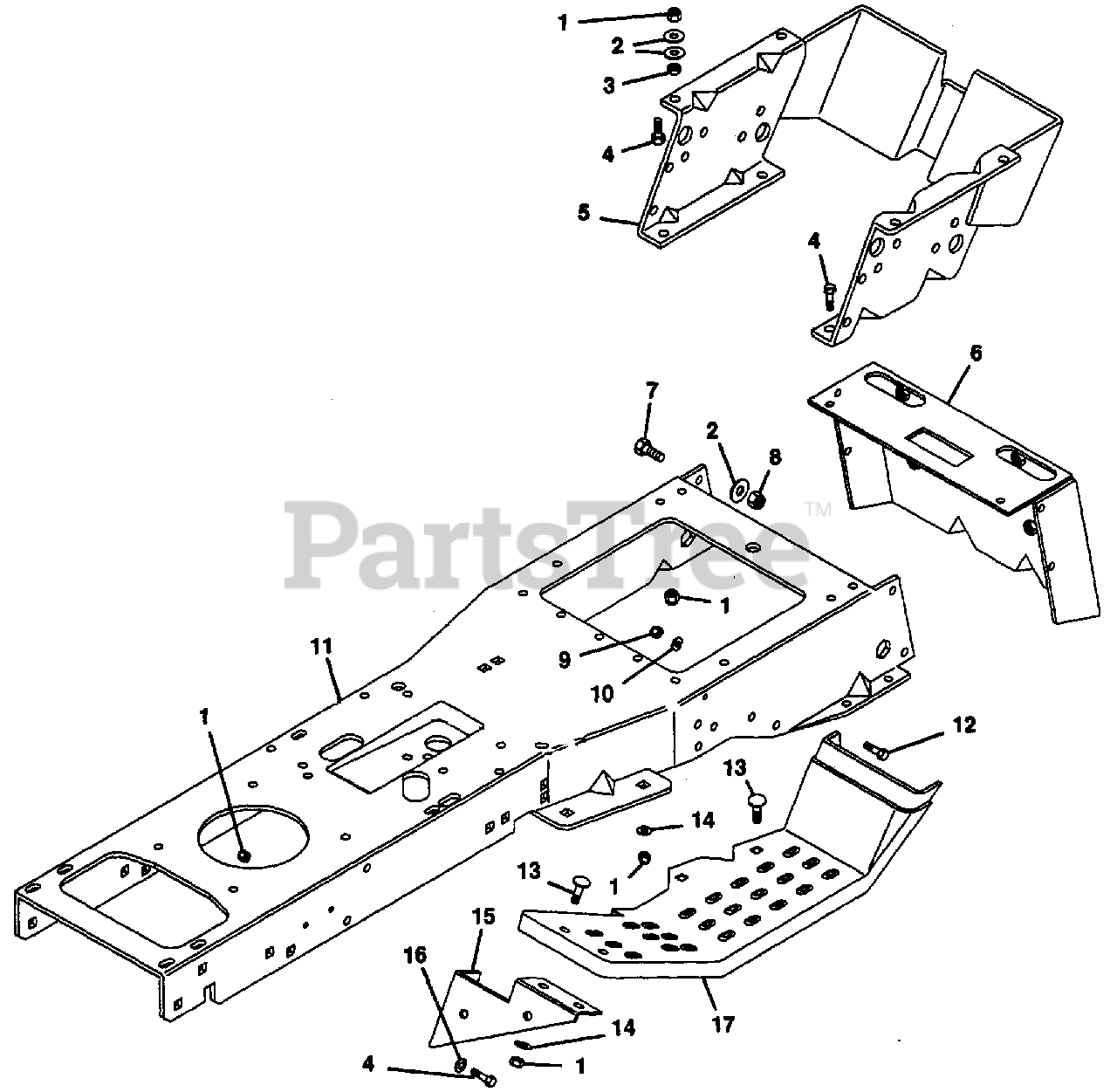

FRAME Parts Diagram

  • Title

1

Gravely 419455

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

2

Gravely 446470

WSHR-FL-STL .375X1.125X.065YWZ
(Superseded to 06401139)

$2.99

$

In Stock, Qty 14

0

3

Gravely 120376

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

4

Gravely 180079

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 050161

DECK SUPPORT
(Superseded to 03448500)

$

$

Not available

6

Gravely 049363

TAILBOARD
(Superseded to 03448900)

$

$

Not available

7

Gravely 180121

BLT-HEX .38-16X.875 GR5 YWZC
(Superseded to 05932600)

$2.99

$

Usually ships in 4-12 days

0

8

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

9

Gravely 419454

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

10

Gravely 120392

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 051387

FRAME
(Superseded to 03345700)

$

$

Not available

12

Gravely 180020

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

13

Gravely 126358

BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 120393

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 050167

L H FOOTREST BRACE
(Superseded to 03473600)

$

$

Not available

15

Gravely 050166

R H FOOTREST BRACE
(Superseded to 03473500)

$

$

Not available

16

Gravely 446354

WSHR-FL-STL .313X.875X.065
(Superseded to 06430700)

$

$

Not available

17

Gravely 050164

FOOTREST

$

$

Not available

17

Gravely 050163

FOOT REST R H
(Superseded to 03408253)

$

$

Not available

NS

Gravely 050680

DECAL - TRANS LOCK OUT
(Superseded to 07768300)

$

$

Not available

NS

Gravely 052625

DECAL - CAUTION
(Superseded to 07820500)

$

$

Not available
