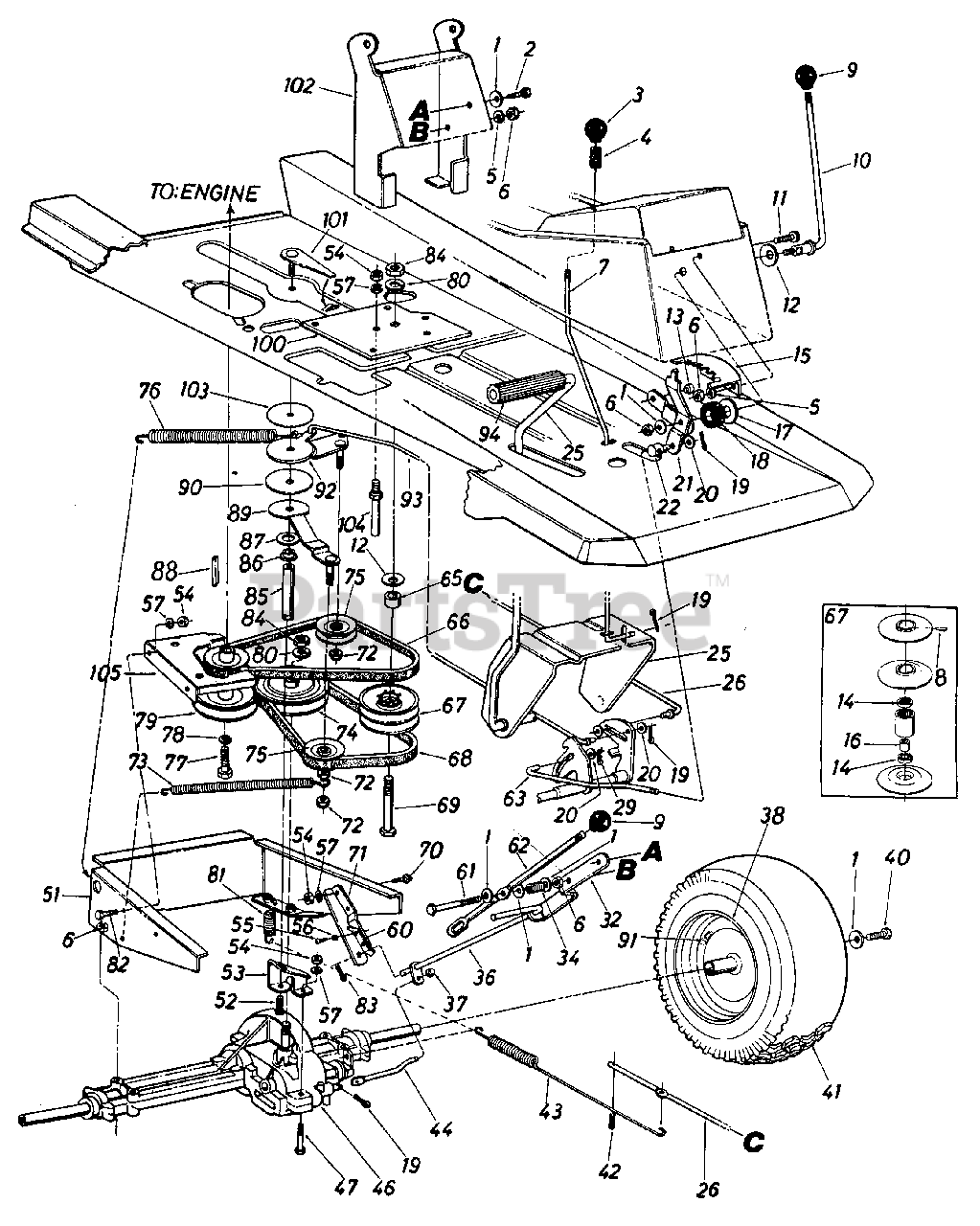

514 (514135) - Cub Cadet Rear-Engine Riding Mower (1985) Parts II Parts Diagram

Rear-Engine Riding Mower

Parts II Parts Diagram

  • Title

1

Cub Cadet 736-0242

WASHER-BELL .337 X .867 X .057

$4.99

$

In Stock, Qty 20+

0

2

Cub Cadet 710-0776

SCREW-HEX WASH HD
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 15

0

3

Cub Cadet 720-0187

KNOB

$10.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 732-0437

SPRING-COMPRESSION

$10.99

$

In Stock, Qty 5

0

5

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

6

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.99

$

In Stock, Qty 20+

0

7

Cub Cadet 747-0450

ROD-BRAKE LOCK

$

$

Not available

8

Cub Cadet 715-0124

PIN-SPRING SPIR 5/32 X .62

$

$

Not available

9

Cub Cadet 720-0165

KNOB-BALL 1-3/8" DIA.
(Superseded to 920-0232)

$11.99

$

In Stock, Qty 6

0

10

Cub Cadet 747-0424

LEVER-SPEED CONTROL

$

$

Not available

11

Cub Cadet 710-0323

SCREW-TRUSS MACH 5/16-18 X .75

$4.99

$

In Stock, only 2 left!

0

12

Cub Cadet 736-0253

WASHER-BELL .505 ID X 1.00 OD

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 731-0493

CAP

$

$

Not available

14

Cub Cadet 741-0139

BEARING-BALL

$

$

Not available

15

Cub Cadet 15581

BRACKET-INDEX

$

$

Not available

16

Cub Cadet 750-0516

SPACER

$

$

Not available

17

Cub Cadet 736-0154

WASHER-SPEC 503 X 1.56 X .036

$

$

Not available

18

Cub Cadet 735-0219

WASHER-RUBBER

$

$

Not available

19

Cub Cadet 714-0115

PIN-COTTER-1/8 DIA X 1.00

$4.49

$

In Stock, only 2 left!

0

20

Cub Cadet 736-0275

WASHER-FL (#46041)

$7.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 15582

BRACKET ASSY-SP CONT

$

$

Currently unavailable

22

Cub Cadet 711-0677

FERRULE
(Superseded to 911-0677)

$18.99

$

In Stock, only 3 left!

0

25

Cub Cadet 15562

PEDAL ASSY-BRAKE

$

$

Not available

26

Cub Cadet 747-0431

ROD-BRAKE

$

$

Not available

29

Cub Cadet 714-0104

PIN-INTERN COT-5/16 DIA

$4.49

$

In Stock, Qty 10

0

32

Cub Cadet 15659

BRACKET-SHIFT LEVER

$

$

Currently unavailable

34

Cub Cadet 732-0369

SPRING
(Superseded to 932-0369)

$10.99

$

In Stock, only 3 left!

0

36

Cub Cadet 15637

LEVER ASSY-SHIFT

$

$

Not available

37

Cub Cadet 726-0106

NUT-PUSH

$4.49

$

Usually ships in 3-6 days

0

38

Cub Cadet 734-0521

WHEEL RIM-RR 6.0 X 4.50

$

$

Not available

40

Cub Cadet 710-0627

SCREW-CAP LOCK 5/16-24 X .75

$4.49

$

In Stock, Qty 16

0

41

Cub Cadet 734-0524

WHEEL ASSY W/TIRE-15.0X6.0 TURF TD

$

$

Not available

Cub Cadet 734-0427

Rear Wheel Tire Only
(Superseded to 734-1731-0901)

$52.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 714-0470

Cotter Pin, 1/8 X 1.25

$4.49

$

In Stock, Qty 5

0

43

Cub Cadet 732-0389

SPRING-EXTENSION

$

$

Not available

44

Cub Cadet 747-0421

ROD-SHIFT

$

$

Currently unavailable

46

Cub Cadet 717-0775

TRANSAXLE-1 SP
(Superseded to 753-0537)

$

$

Not available

47

Cub Cadet 710-0136

SCREW-HEX 1/4-20 X 1.75

$4.49

$

In Stock, Qty 13

0

51

Cub Cadet 15552

SUPPORT ASSY-TRANS

Variations

15552-0637

Cub Cadet 15552-0637

SUPPORT ASSEMBLY-TRANSPOWDER BLK - POWDER BLACK (0637)

$

$

Not available

$

$

52

Cub Cadet 710-0180

SCREW-HEX 3/8-24 X .75

$7.49

$

In Stock, Qty 5

0

53

Cub Cadet 15564

BRACKET-TORQUE ROD

$

$

Not available

54

Cub Cadet 712-0287

NUT-HEX 1/4-20
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

55

Cub Cadet 710-0789

SCREW-C SINK #8X.50

$

$

Currently unavailable

56

Cub Cadet 726-0206

NUT-PUSH

$

$

Currently unavailable

57

Cub Cadet 736-0329

LOCK WASHER 1/4 DIA
(Superseded to 936-0329)

$4.99

$

In Stock, Qty 12

0

60

Cub Cadet 732-0420

SPRING-SWITCH

$

$

Not available

61

Cub Cadet 710-0395

SCREW-HEX 5/16-18 X 2.25

$4.99

$

In Stock, Qty 8

0

62

Cub Cadet 747-0430

KIT-SHIFT LEVER

$

$

Currently unavailable

63

Cub Cadet 747-0451

LINK-SPEED CONTROL

$

$

Not available

65

Cub Cadet 750-0333

SPACER

$20.99

$

Usually ships in 3-6 days

0

66

Cub Cadet 754-0241

BELT-5LX35.25
(Superseded to 954-05040)

$48.99

$

In Stock, Qty 20+

0

67

Cub Cadet 717-0473

PULLEY ASSY-VAR SP

$

$

Not available

68

Cub Cadet 754-0240

BELT-V 5/8 X 38
(Superseded to 954-0240)

$40.99

$

In Stock, only 2 left!

0

69

Cub Cadet 710-0786

SCREW-HEX 1/2-13 X 4.0

$17.99

$

Usually ships in 3-6 days

0

70

Cub Cadet 710-0258

SCREW-HEX 1/4-20 C .62
(Superseded to 710-0751)

$4.49

$

In Stock, Qty 20+

0

71

Cub Cadet 15624

SUPPORT-SHIFT LEVER

$

$

Currently unavailable

72

Cub Cadet 712-0116

NUT-HEX INS L-3/8-24

$4.99

$

In Stock, only 3 left!

0

73

Cub Cadet 732-0308

SPRING-EXTENSION
(Superseded to 732-0308A)

$11.99

$

In Stock, only 1 left!

0

74

Cub Cadet 756-0390

PULLEY

$

$

Not available

75

Cub Cadet 756-0116

PULLEY-V-BELT IDLER
(Superseded to 756-04209)

$23.99

$

In Stock, Qty 20+

0

76

Cub Cadet 732-0436

SPRING-EXTENSION
(Superseded to 932-0556)

$22.99

$

In Stock, only 4 left!

0

77

Cub Cadet 710-0314

SCREW-HEX 7/16-20 X 1.00

$4.99

$

In Stock, Qty 13

0

78

Cub Cadet 736-0171

WASHER-LOCK-7/16

$4.99

$

In Stock, only 4 left!

0

79

Cub Cadet 756-0391

PULLEY

$166.99

$

Usually ships in 3-6 days

0

80

Cub Cadet 736-0921

WASHER-LOCK-1/2

$4.99

$

In Stock, Qty 9

0

81

Cub Cadet 732-0303

SPRING-EXTENSION
(Superseded to 932-0303)

$10.99

$

In Stock, Qty 6

0

82

Cub Cadet 710-0352

SCREW-HEX B-TAP 1/4 X .38

$4.99

$

Usually ships in 3-6 days

0

83

Cub Cadet 714-0111

PIN-COTTER-3/32 DIA X 1.00

$5.49

$

In Stock, Qty 20+

0

84

Cub Cadet 712-0206

NUT-HEX 1/2-13

$4.99

$

In Stock, Qty 20+

0

85

Cub Cadet 711-0676

ROD-TORQUE

$

$

Not available

86

Cub Cadet 748-0294

BEARING-FLANGE

$

$

Not available

87

Cub Cadet 736-0187

WASHER-FL-.640ID X 1.24OD X .06HDN

$4.99

$

In Stock, Qty 20+

0

88

Cub Cadet 714-0114

KEY-SQ 1/4 X 2.00
(Superseded to 914-0114)

$4.49

$

In Stock, only 2 left!

0

89

Cub Cadet 15569

BRACKET ASSY-IDLER
(Superseded to 15569B)

$

$

Not available

90

Cub Cadet 736-0283

WASHER-THRUST

$

$

Not available

91

Cub Cadet 734-0255

VALVE-TUBELESS AIR
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

92

Cub Cadet 15585

BRACKET ASSY-IDLER

$

$

Not available

93

Cub Cadet 747-0422

ROD-CLUTCH

$

$

Not available

94

Cub Cadet 735-0196

PAD-FOOT
(Superseded to 735-0239A)

$12.99

$

In Stock, Qty 9

0

100

Cub Cadet 15588

BRACKET-VAR SP MTG

$

$

Currently unavailable

101

Cub Cadet 15642

BRACKET ASSY

Variations

15642-0637

Cub Cadet 15642-0637

BRACKET AS - POWDER BLACK (0637)

$

$

Not available

$

$

102

Cub Cadet 15605

KIT-SEAT BRKT ASSY

$

$

Not available

103

Cub Cadet 736-0284

WASHER-THRUST .038ID X 3.5 X .015

$

$

Not available

104

Cub Cadet 711-0747

ROD-BELT GUARD

$10.99

$

Usually ships in 3-6 days

0

105

Cub Cadet 15623

GUARD-ENG BELT-UPR

$

$

Not available
