514 RT (1693705) - Simplicity Rear-Tine Tiller, 5hp Shifting Mechanism Group Parts Diagram

Rear-Tine Tiller, 5hp

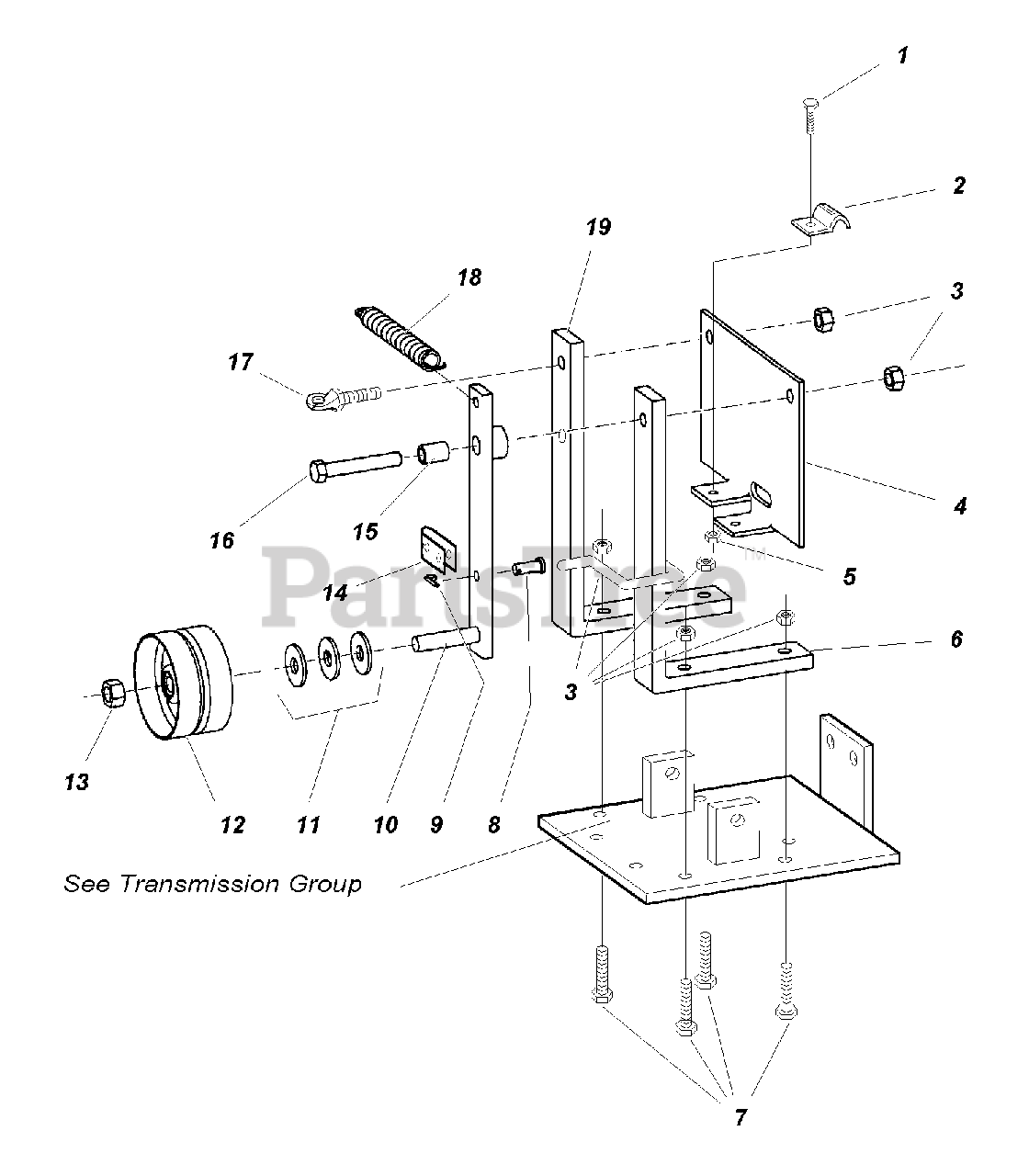

Shifting Mechanism Group Parts Diagram

  • Title

1

Simplicity 1722326SM

CAPSCREW, 5MM x .8 x 16MM

$3.99

$

Usually ships in 2-12 days

0

2

Simplicity 1719063SM

C-CLAMP

$4.49

$

Usually ships in 2-12 days

0

3

Simplicity 1935048SM

NUT, Hex Flange Head, 5/16"-18 TWO, WAY Lock
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

4

Simplicity 1716807SM

BRACKET, Cable Mount

$

$

Not available

5

Simplicity 1716732SM

NUT, Hex Nylok

$2.49

$

Usually ships in 2-12 days

0

6

Simplicity 1721530SM

BRACKET, w/Forward Belt Guide

$

$

Not available

7

Simplicity 1921977SM

CAPSCREW, 5/16"-18 x 11/4" G5
(Superseded to 703570)

$4.99

$

In Stock, Qty 10

0

8

Simplicity 1716702SM

PIN, Link Forward/Reverse

$3.99

$

Usually ships in 2-12 days

0

9

Simplicity 1716703SM

PIN, Cotter

$3.99

$

Usually ships in 2-12 days

0

10

Simplicity 1716804SM

ARM, Forward Idler

$26.99

$

Usually ships in 2-12 days

0

11

Simplicity 1924940SM

WASHER, 3/8"
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

12

Simplicity 1716803SM

PULLEY, Forward Idler

$45.99

$

Usually ships in 2-12 days

0

13

Simplicity 1916950SM

NUT, Hex Head, 3/8"-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 11

0

14

Simplicity 1716728SM

YOKE, Cable

$

$

Not available

15

Simplicity 1716704SM

BUSHING, Pivot 5/16"

$12.99

$

Usually ships in 2-12 days

0

16

Simplicity 1921978SM

CAPSCREW, Hex Head 5/16-18 x 2 G5
(Superseded to 703867)

$4.99

$

In Stock, Qty 6

0

17

Simplicity 1721529SM

BOLT, Washer Head, 5/16"-18 x 1 1/4"

$

$

Not available

18

Simplicity 1716802SM

SPRING, Idler Arm

$11.99

$

Usually ships in 2-12 days

0

19

Simplicity 1716801SM

BAR, Shift Mounting

$9.99

$

Usually ships in 2-12 days

0
