514 RT (1693705) - Simplicity Rear-Tine Tiller, 5hp Transmission Group Parts Diagram

Rear-Tine Tiller, 5hp

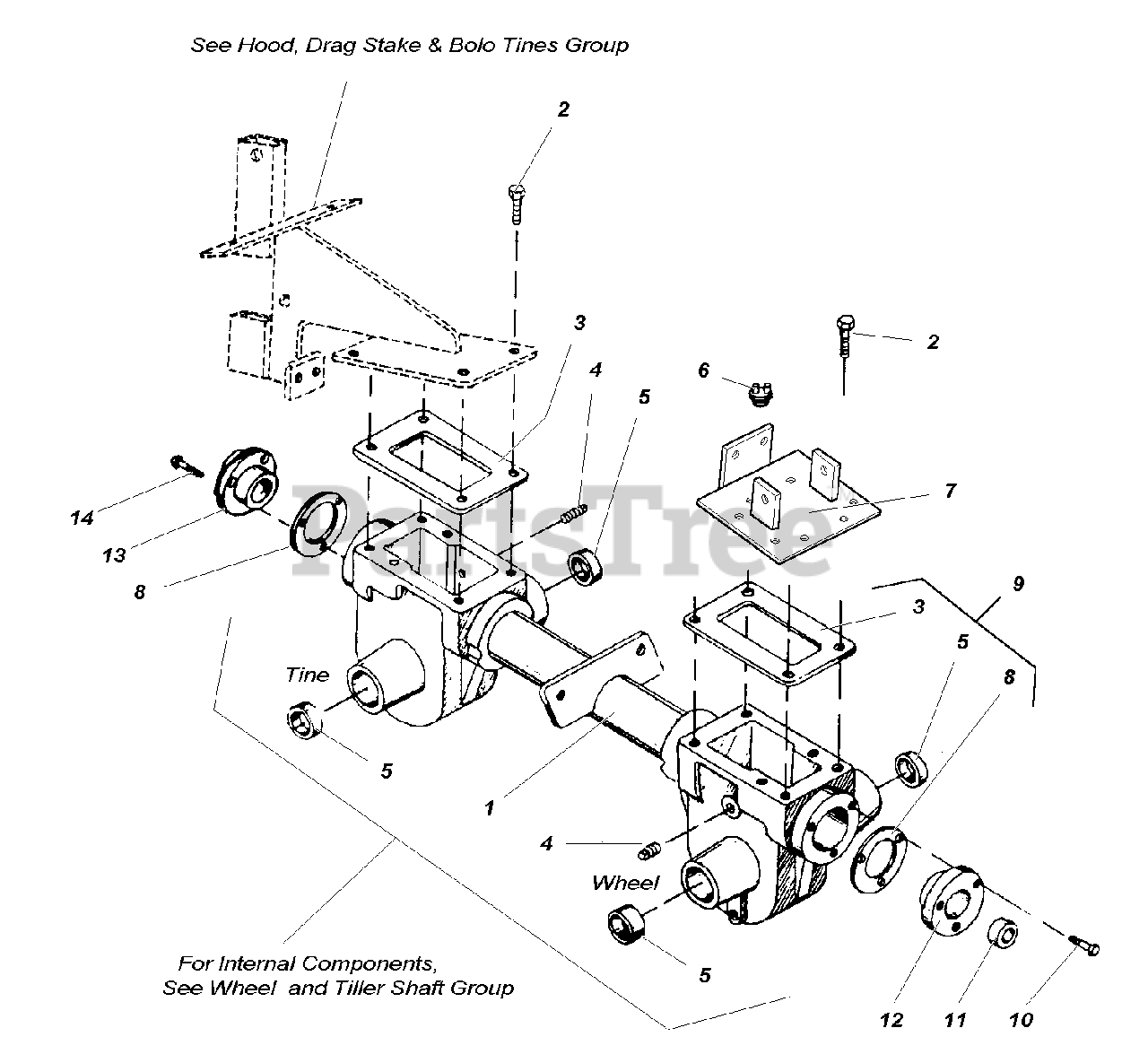

Transmission Group Parts Diagram

  • Title

1

Simplicity 1721505SM

TRANSMISSION ASSEMBLY

$

$

Not available

2

Simplicity 1921332SM

CAPSCREW, Hex Flange Head, 5/16"-18 x 3/4"
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

4

Simplicity 1716790SM

PLUG, Pipe Socket Head 1/4"-18, Oil Check

$

$

Not available

6

Simplicity 1716794SM

PLUG, Oil Fill

$16.99

$

Usually ships in 2-12 days

0

7

Simplicity 1721506SM

COVER, Transmission Wheel Housing

$

$

Not available

9

Simplicity 1716799SM

GASKET KIT, Oil Seal (Includes Ref. Nos. 3, 5 and 8)

$73.99

$

Usually ships in 2-12 days

0

3

Simplicity 1716789SM

GASKET, Housing & Transmission Cover

$15.99

$

In Stock, only 2 left!

0

5

Simplicity 1716791SM

SEAL, Housing

$52.99

$

Usually ships in 2-12 days

0

8

Simplicity 1716792SM

GASKET, Bearing Cap Front, Rear

$15.99

$

Usually ships in 2-12 days

0

10

Simplicity 1716798SM

CAPSCREW, Hex Flange Head, 1/4"-20 x 3/4"
(Superseded to 1935450SM)

$4.49

$

Usually ships in 2-12 days

0

11

Simplicity 1716797SM

SEAL, Oil Drive Shaft

$19.99

$

Usually ships in 2-12 days

0

12

Simplicity 1716796SM

CAP, Front Bearing

$21.99

$

Usually ships in 2-12 days

0

13

Simplicity 1716793SM

CAP, Rear Bearing

$35.99

$

Usually ships in 2-12 days

0

14

Simplicity 1716795SM

CAPSCREW, Hex Flange Head, 1/4"-20 x 7/8"

$3.49

$

Usually ships in 2-12 days

0
