514 RT (1693705) - Simplicity Rear-Tine Tiller, 5hp Wheel & Tiller Shaft Group Parts Diagram

Rear-Tine Tiller, 5hp

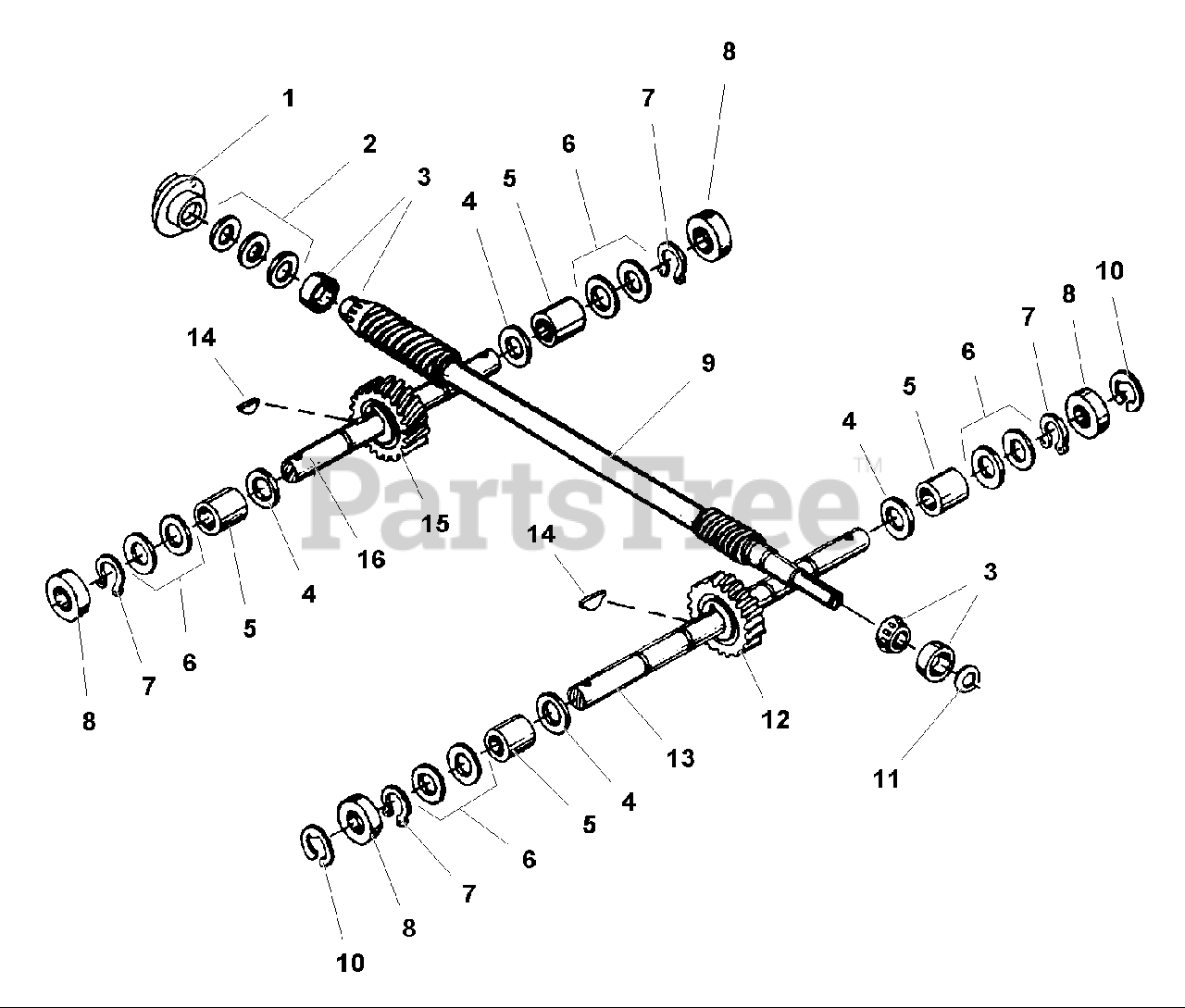

Wheel & Tiller Shaft Group Parts Diagram

  • Title

1

Simplicity 1716793SM

CAP, Rear Bearing

$37.99

$

Usually ships in 2-12 days

0

2

Simplicity 1716825SM

SHIM SET, Rear Bearing Cap
(Superseded to 1739268YP)

$51.99

$

Usually ships in 2-12 days

0

2

Simplicity 1716826SM

SHIM, 0.062 Thickness x 1 3/4" (As Required)

$3.99

$

In Stock, only 1 left!

0

2

Simplicity 1716827SM

SHIM, 0.030 Thickness x 1 3/4" (As Required)

$5.99

$

Usually ships in 2-12 days

0

2

Simplicity 1716828SM

SHIM, 0.015 Thickness x 1 3/4" (As Required)

$3.99

$

Usually ships in 2-12 days

0

2

Simplicity 1716829SM

SHIM, 0.010 Thickness x 1 3/4" (As Required)

$5.49

$

In Stock, only 3 left!

0

3

Simplicity 1716810SM

BEARING, Tappered ( Cone & Race )

$57.99

$

In Stock, only 1 left!

0

4

Simplicity 1716824SM

SPACER, 1" x 1 1/4" x 0.062 Thickness

$5.49

$

Usually ships in 2-12 days

0

5

Simplicity 1716816SM

BUSHING

$17.99

$

In Stock, only 1 left!

0

6

Simplicity 1716815SM

SHIM SET, Axle Spacer
(Superseded to 1739268YP)

$51.99

$

Usually ships in 2-12 days

0

6

Simplicity 1716817SM

SHIM, 0.062 Thickness x 1 3/8"

$5.99

$

Usually ships in 2-12 days

0

6

Simplicity 1716818SM

SHIM, 0.030 Thickness x 1 3/8"

$5.49

$

Usually ships in 2-12 days

0

6

Simplicity 1716819SM

SHIM, 0.015 Thickness x 1 3/8"

$4.99

$

Usually ships in 2-12 days

0

6

Simplicity 1716820SM

SHIM, 0.010 Thickness x 1 3/8"

$4.49

$

In Stock, only 1 left!

0

7

Simplicity 1716830SM

RING, Snap Internal Retainer

$4.49

$

Usually ships in 2-12 days

0

8

Simplicity 1716791SM

SEAL, Housing

$53.99

$

In Stock, only 4 left!

0

9

Simplicity 1716809SM

SHAFT, Main Drive

$296.99

$

Usually ships in 2-12 days

0

10

Simplicity 1716821SM

RING, Snap External Retainer

$6.49

$

Usually ships in 2-12 days

0

11

Simplicity 1716797SM

SEAL, Oil Drive Shaft

$19.99

$

Usually ships in 2-12 days

0

12

Simplicity 1716814SM

GEAR, Worm Wheel Shaft

$187.99

$

Usually ships in 2-12 days

0

13

Snapper 1716812SM

SHAFT ASSEMBLY, Wheel w/Lock Pin 5HP

$

$

Not available

14

Simplicity 1716813SM

KEY, Parrallel Pin

$5.49

$

Usually ships in 2-12 days

0

15

Simplicity 1716823SM

GEAR, Worm Shaft

$222.99

$

Usually ships in 2-12 days

0

16

Simplicity 1716822SM

SHAFT ASSEMBLY

$95.99

$

Usually ships in 2-12 days

0
