51450 - Lawn-Boy 15" String Trimmer, Electric (SN: 790000001 - 799999999) (1997) SHAFT AND HEAD ASSEMBLY Parts Diagram

15" String Trimmer, Electric

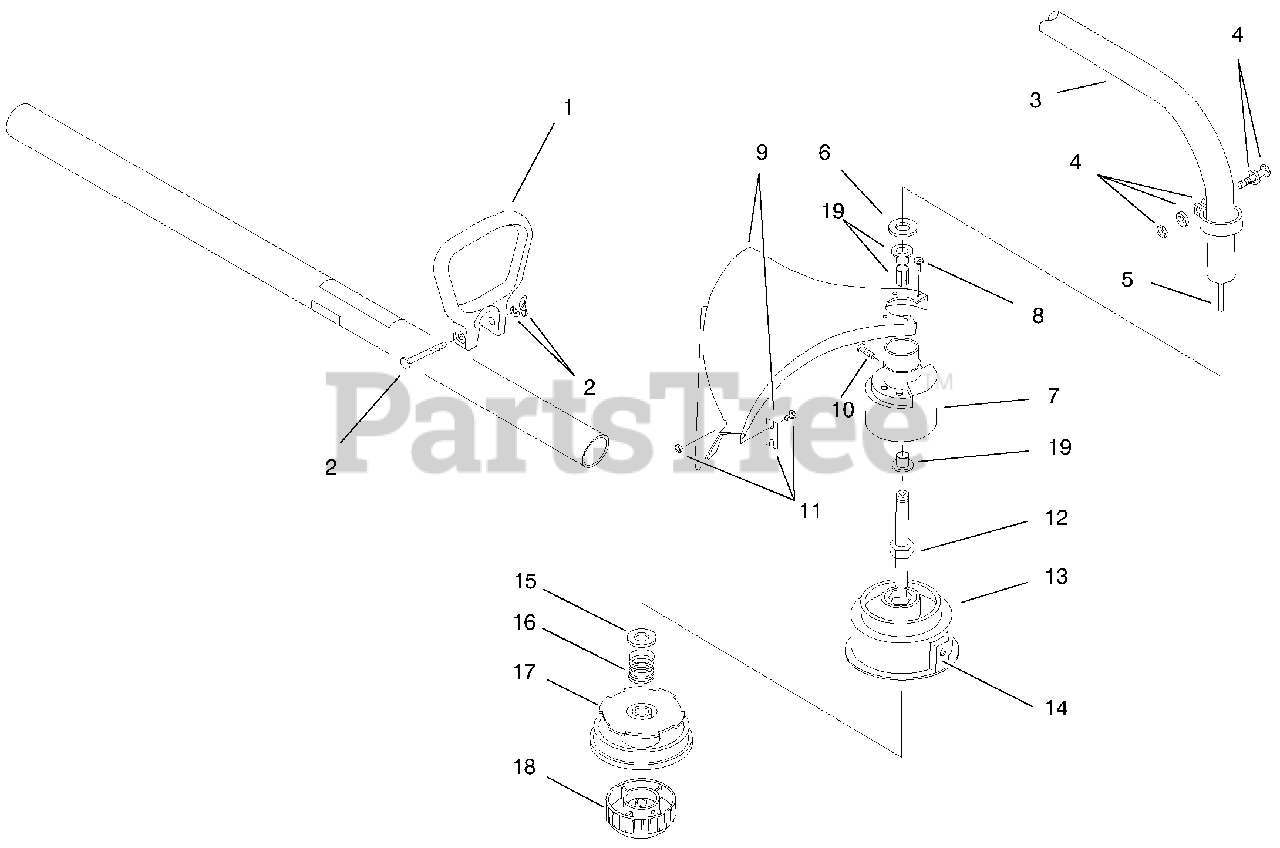

SHAFT AND HEAD ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 145819

D-Handle

$

$

Not available

2

Lawn-Boy 181587

D-Handle Hardware Asm.

$22.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 180560

Drive Shaft Housing Asm.

$

$

Not available

4

Lawn-Boy 153597

Lower Clamp Asm. (Incl. Ref.#10)

$

$

Not available

5

Lawn-Boy 180561

Flexible Drive Shaft

$

$

Not available

6

Lawn-Boy 181560

Palnut

$

$

Not available

7

Lawn-Boy 153312

Bushing Housing Asm. (Incl. Ref.# 19)

$

$

Not available

8

Lawn-Boy 180531

Guard Mounting Screw Asm.

$2.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 683274

Guard & Blade Asm.

$

$

Not available

10

Lawn-Boy 145569

Anti-Rotation Screw

$

$

Not available

11

Lawn-Boy 682061

Blade Asm.

$22.99

$

In Stock, only 1 left!

0

12

Lawn-Boy 153313

Spool Shaft
(Superseded to 181784)

$

$

Not available

13

Lawn-Boy 153619

Outer Spool & Eyelet Asm.

$49.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 145566

Eyelet

$16.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 610660

Retainer (10 Pack)

$4.49

$

In Stock, Qty 19

0

16

Lawn-Boy 610317

Spring

$11.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 610318

Inner Reel

$39.99

$

In Stock, only 1 left!

0

18

Lawn-Boy 153066

Bump Head Knob Asm.

$

$

Not available

19

Bushing Housing Asm. (Not Serviced Separately)

$

$

Not available

Lawn-Boy 610375

Monoflail Cutting Line (50ft.)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 88042

Spool & Line (30ft.) Asm.

Note: Not Illustrated

$

$

Not available
