51452 - Lawn-Boy 37cm String Trimmer, Electric, Canada (SN: 260000001 - 260999999) (2006)

37cm String Trimmer, Electric, Canada

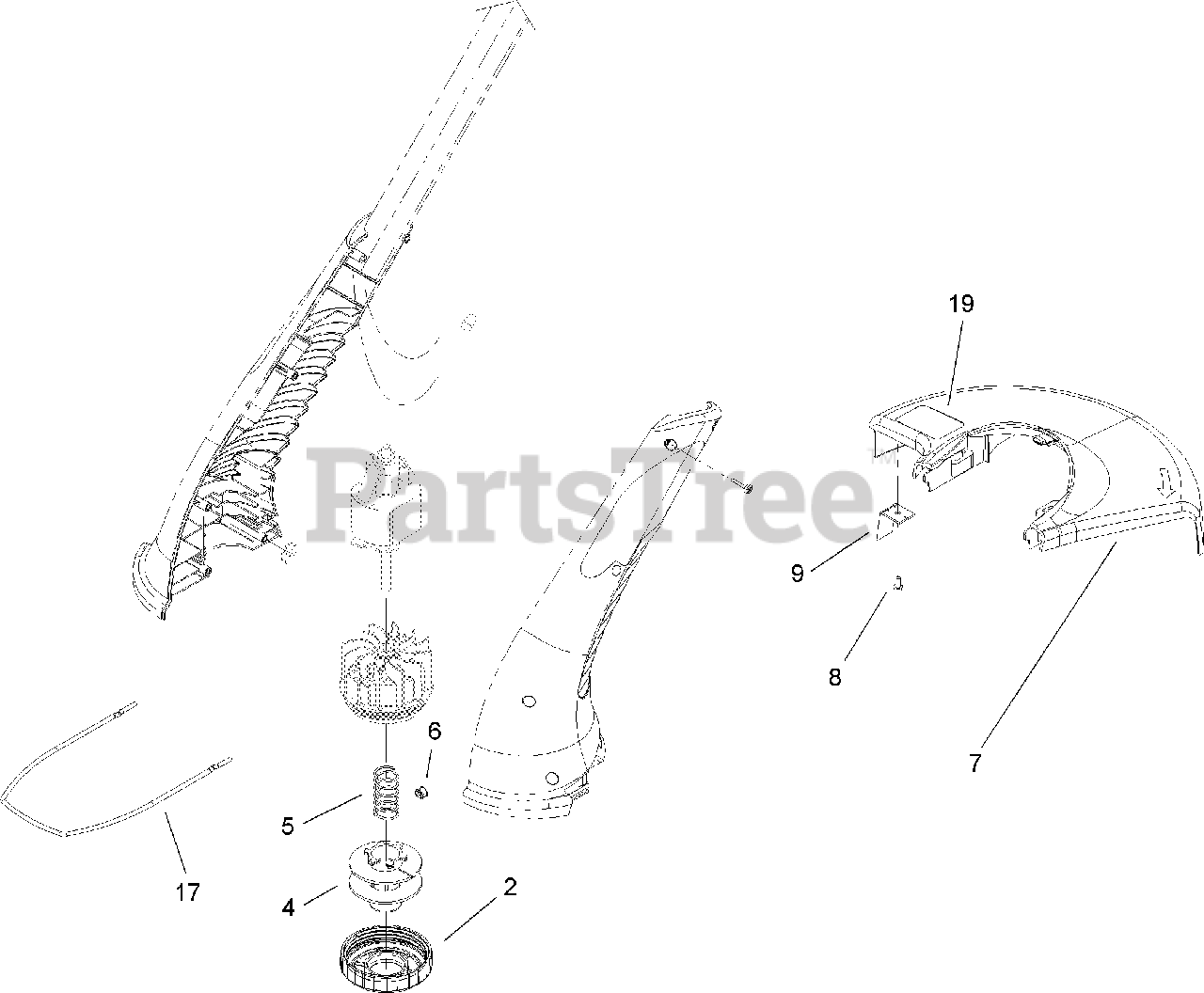

51452 - Lawn-Boy 37cm String Trimmer, Electric, Canada (SN: 260000001 - 260999999) (2006) > Parts Diagrams (2) > SPOOL AND SHIELD ASSEMBLY

  • Title
105-9422

2

Cap-Drum

Part# 105-9422

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 1 business day

Your price: $6.24

88175

4

.065 SPOOL ASM

Part# 88175

Not available

73-8190

4:1

SPOOL-LARGE (Not illustrated)

Part# 73-8190

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 1 business day

Your price: $12.50

88003

4:2

LINE-FILIMENT (Not illustrated)

Part# 88003

Not available

105-9423

5

Spring-Extension

Part# 105-9423

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 1 business day

Your price: $0.77

107-3344

6

EYELET-GUIDE

Part# 107-3344

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 1 business day

Your price: $2.76

105-9438

7

Shield-Variable Cut

Part# 105-9438

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 5 to 8 business days

Your price: $25.00

94-4496

8

SCREW-PPH

Part# 94-4496

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 1 business day

Your price: $0.74

105-9439

9

Blade-Variable Cut

Part# 105-9439

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 1 business day

Your price: $1.97

105-9427

17

Guide-Edge

Part# 105-9427

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 5 to 8 business days

Your price: $7.08

106-6490

19

Decal-Shield, Length

Part# 106-6490

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.38
