51465 - Toro 10" String Trimmer, Cordless (SN: 250000001 - 250999999) (2005) HANDLE AND SPOOL ASSEMBLY Parts Diagram

10" String Trimmer, Cordless

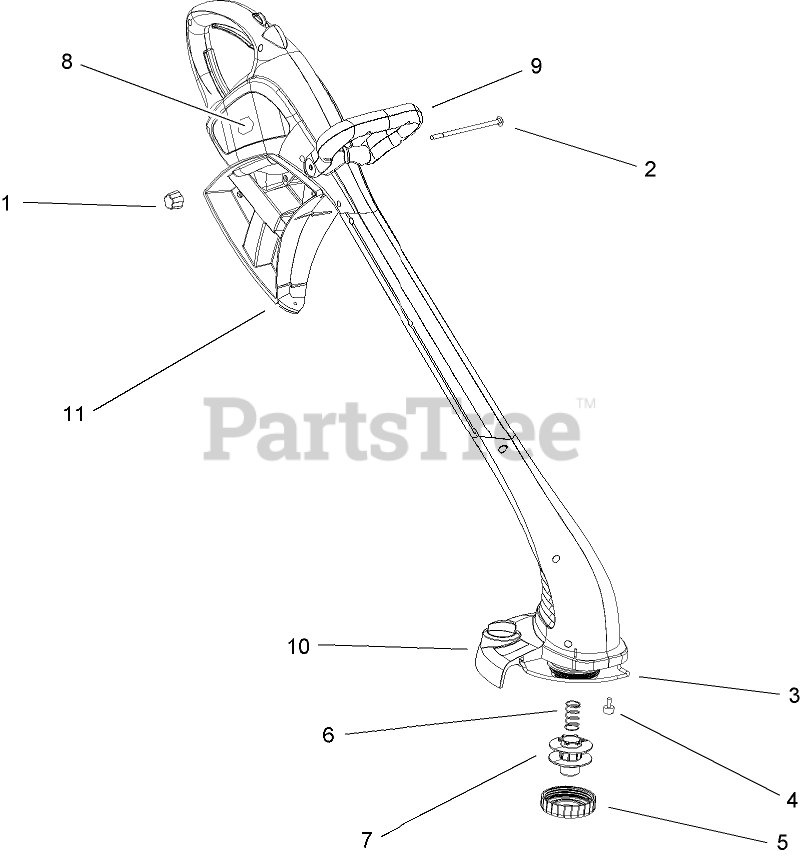

HANDLE AND SPOOL ASSEMBLY Parts Diagram

  • Title

1

Toro 105-3089

Knob-Assist Handle

$9.49

$

In Stock, only 1 left!

0

2

Toro 105-6910

Screw-CARR

$

$

Not available

3

Toro 105-3095

Guide-Edge/Vegetation

$

$

Not available

4

Toro 105-6913

Fastener-Guide, Edge/Vegetation

$

$

Not available

5

Toro 105-6948

Cap-Spool, 10in

$31.99

$

Usually ships in 3-6 days

0

6

Toro 106-1943

Spring-Compression

$

$

Not available

7

Toro 73-8490

.065 SPOOL ASM
(Superseded to 88175)

$24.99

$

In Stock, Qty 20+

0

7:1

Toro 73-8190

SPOOL-LARGE

Note: Not illustrated

$20.99

$

In Stock, Qty 11

0

7:2

Toro 7420625

LINE-FILIMENT
(Superseded to 88003)

Note: Not illustrated

$

$

Not available

8

Toro 106-1916

10in Battery ASM

$

$

Not available

9

Toro 106-1918

10in Assist Handle ASM

$

$

Not available

10

Toro 105-3091

10IN SHIELD ASM (only on: 51465)

$

$

Not available

10

Toro 106-6473

CE SHIELD ASM (only on: 51466)

$

$

Not available

11

Toro 106-1919

WALL MOUNT CHARGER ASM (only on: 51465)

$

$

Not available

11

Toro 106-6474

CE WALL MOUNT CHARGER ASM (only on: 51466)

$

$

Not available

99

Toro 106-1946

Strap-Shoulder

Note: Not illustrated

$

$

Not available
