5151 - Troy-Bilt Pony V Rear-Tine Tiller (SN: Original) Drive Shaft, Input Pinion Shaft & Gear Assemblies Parts Diagram

Pony V Rear-Tine Tiller

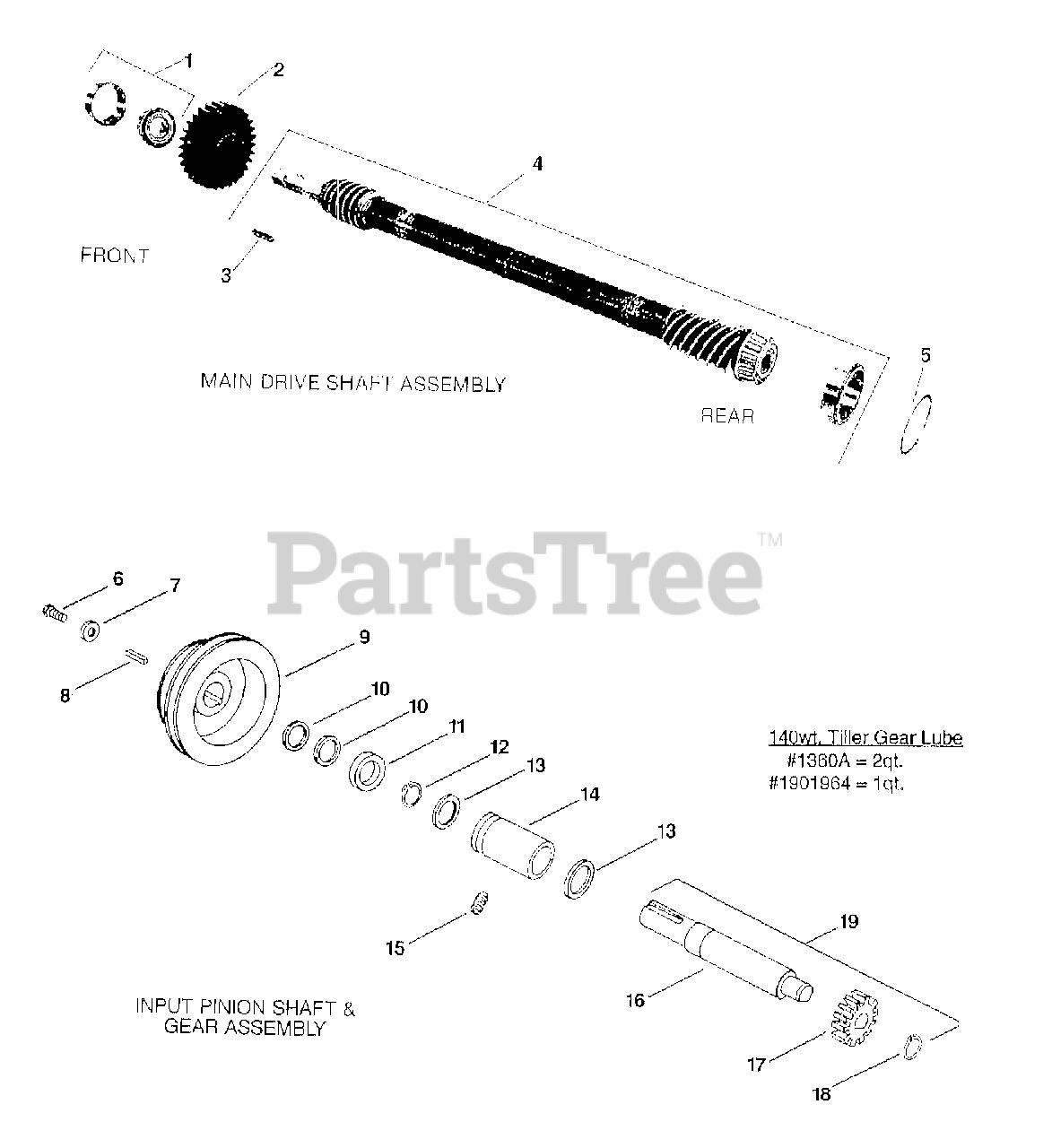

Drive Shaft, Input Pinion Shaft & Gear Assemblies Parts Diagram

  • Title

1

Troy-Bilt 1714

BEARING-tapered roller with race (front of driveshaft)
(Superseded to 941-0107)

$44.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 20718

GEAR-spur, main drive shaft
(Superseded to 717-04690)

$36.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 9301

KEY-3/16" sq. x 1"
(Superseded to GW-9301099)

$3.49

$

In Stock, Qty 16

0

4

Troy-Bilt 10380

DRIVE SHAFT-inertia welded shaft with welded, single-lead hardened steel worm at front to drive the wheel worm gear, and welded six-lead hardened steel worm at rear to drive the tiller gear

Note: (also includes pressed-on #1714 rear roller bearing, race for bearing; and #9301 key)

$

$

Currently unavailable

5

Troy-Bilt 1224-1

SHIM- rear bearing cap, .010" thick
(Superseded to 736-04308)

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 1224-2

SHIM-same as above, but .030" thick
(Superseded to 736-04307)

$4.49

$

In Stock, Qty 19

0

5

Troy-Bilt 1224-3

SHIM- same as above, but .005" thick
(Superseded to 736-04306)

$3.99

$

In Stock, Qty 20+

0

Troy-Bilt 1325C

SHIM SET-
(Superseded to GW-1325C)

Note: includes the following shims: two #1224-1; two #1224-2; one #1224-3

$14.99

$

In Stock, only 4 left!

0

6

Troy-Bilt 9655

BOLT-hex head, 5/16"-24 x 3/4" (Grade 5)
(Superseded to 710-0157)

$3.99

$

In Stock, Qty 16

0

7

Troy-Bilt 9944

WASHER-disc spring (concave surface faces pulley)
(Superseded to 736-04193)

$6.49

$

In Stock, Qty 9

0

8

Troy-Bilt 9301

KEY-3/16" sq. x 1"
(Superseded to GW-9301099)

$3.49

$

In Stock, Qty 16

0

9

Troy-Bilt 20766

PULLEY-transmission drive pulley, 2 grooves

Note: (one for forward speed; one for reverse speed)

$

$

Currently unavailable

10

Troy-Bilt 1440

WASHER-support
(Superseded to 736-04079)

$4.49

$

In Stock, Qty 7

0

11

Troy-Bilt 9600

OIL SEAL-input pinion shaft, front

$

$

Currently unavailable

12

Troy-Bilt 9500

RING -retaining (snap ring), external
(Superseded to 916-0101)

$3.49

$

In Stock, only 2 left!

0

13

Troy-Bilt 9953

WASHER-thrust
(Superseded to GW-9953)

$5.99

$

In Stock, only 2 left!

0

14

Troy-Bilt 9428

BUSHING-
(Superseded to GW-9428)

$34.99

$

In Stock, only 1 left!

0

15

Troy-Bilt 9677

SET SCREW-5/16"-18 x 3/8"
(Superseded to GW-9677)

$3.49

$

In Stock, only 2 left!

0

16

Troy-Bilt 20791

INPUT PINION-steel shaft
(Superseded to 711-05388)

$78.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 20792

GEAR-input pinion
(Superseded to 717-04689)

$21.99

$

In Stock, only 1 left!

0

18

Troy-Bilt 9093

RING-retaining (snap ring), external
(Superseded to GW-9093)

$6.49

$

In Stock, only 3 left!

0

19

Troy-Bilt 20799

PINION ASSEMBLY-
(Superseded to GW-20799)

Note: includes #20791 input pinion shaft, #20792 gear, and #9093 retaining ring

$

$

Not available

$

$

Not available
