5151 - Troy-Bilt Pony V Rear-Tine Tiller (SN: Original) Forward/Reverse Idler Assembly Parts Diagram

Pony V Rear-Tine Tiller

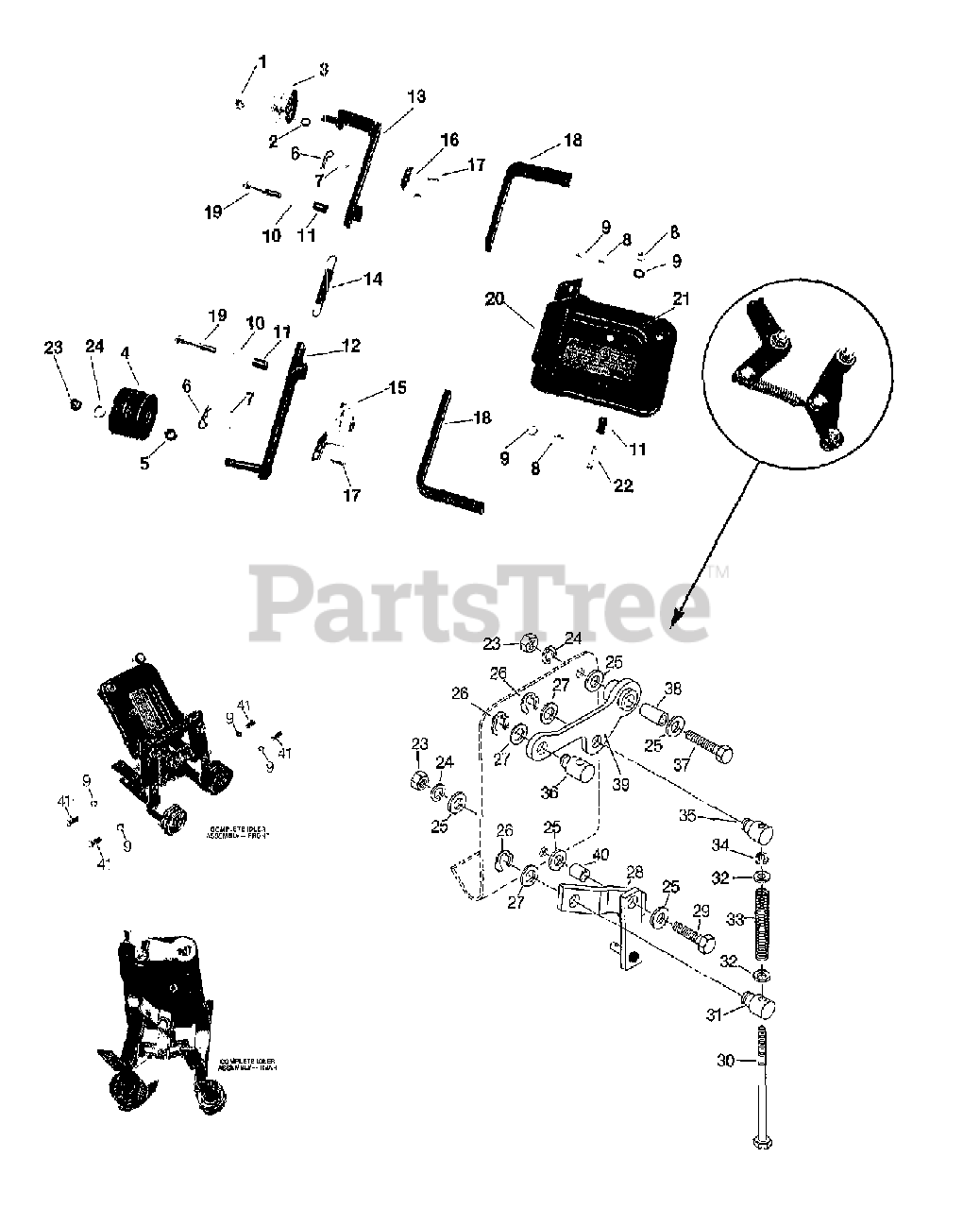

Forward/Reverse Idler Assembly Parts Diagram

  • Title

1

Troy-Bilt 9837

LOCKNUT-hex, 3/8"-16
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 20513

BUSHING-reverse idler pulley

$

$

Currently unavailable

3

Troy-Bilt 9460

PULLEY- Idler, reverse tiller direction

$

$

Currently unavailable

4

Troy-Bilt 9090

PULLEY-idler, forward tiller direction
(Superseded to 756-04170)

$33.99

$

In Stock, Qty 9

0

5

MTD 9091

SPACER

$

$

Not available

6

Troy-Bilt 9338

HITCH PIN
(Superseded to 714-04048)

$7.49

$

In Stock, only 3 left!

0

7

Troy-Bilt 9900

WASHER -plain, 1/4"

$

$

Currently unavailable

8

Troy-Bilt 9801

NUT-hex, 5/16"-18

$

$

Currently unavailable

9

Troy-Bilt 9912

LOCKWASHER-5/16"

$

$

Currently unavailable

10

MTD 20545

WASHER-plain, 5/16"

$

$

Not available

11

MTD 9479

PIVOT BUSHING

$

$

Not available

12

Troy-Bilt 20657

IDLER ARM-left, forward tiller direction

$

$

Currently unavailable

13

Troy-Bilt 20656

IDLER ARM-right, reverse tiller direction

$

$

Currently unavailable

14

Troy-Bilt 1492

SPRING
(Superseded to GW-1492099)

$9.99

$

In Stock, Qty 10

0

15

MTD 20517-01

FORWARD LINK

$

$

Not available

16

Troy-Bilt 20517-02

REVERSE LINK

$

$

Currently unavailable

17

MTD 9340

PIN

$

$

Not available

18

MTD 20751

MOUNTING BAR

$

$

Not available

19

Troy-Bilt 9741

BOLT- idler arm, 5/16-18 x 2"(Grade 5)
(Superseded to 710-3103)

$4.49

$

In Stock, Qty 17

0

20

Troy-Bilt 20622

SHIFTING BASE

Note: (incl. #50112 Warning Decal)

$

$

Currently unavailable

21

Troy-Bilt 50112

DECAL-safety (warning instructions on belts/pulleys)

$

$

Currently unavailable

22

Troy-Bilt 9574

BOLT- hex head, 5/16"-18 x 1 1/4"

$

$

Currently unavailable

23

Troy-Bilt 9802

NUT- hex, 3/8"-16

$

$

Currently unavailable

24

Troy-Bilt 9913

LOCKWASHER-3/8"

$

$

Currently unavailable

25

Troy-Bilt 20553

SPACER - bushing
(Superseded to GW-20553)

$

$

Not available

26

Troy-Bilt 9515

RETAINING RING

$

$

Currently unavailable

27

Troy-Bilt 20546

WASHER-pivot
(Superseded to GW-20546)

$

$

Not available

28

Troy-Bilt 20680

BELLCRANK

$

$

Currently unavailable

29

Troy-Bilt 9712

BOLT- hex head, 3/8"-16 x 1 1/4"

$

$

Currently unavailable

30

Troy-Bilt 20552

ADJUSTMENT BOLT

$

$

Currently unavailable

31

Troy-Bilt 20504

PIVOT-lower

$

$

Currently unavailable

32

Troy-Bilt 20554

WASHER-(between lower pivot and spring, and between spring and retaining ring)

$

$

Currently unavailable

33

Troy-Bilt 20544

SPRING

$

$

Currently unavailable

34

Troy-Bilt 9514

RETAINING RING
(Superseded to GW-9514)

$6.49

$

In Stock, only 2 left!

0

35

Troy-Bilt 20505

PIVOT-upper

$

$

Currently unavailable

36

MTD 20506

PIVOT-

Note: for forward/reverse lever

$

$

Not available

37

MTD 9558

BOLT-hex head, 3/8"-16 x 1 1/2"

$

$

Not available

38

Troy-Bilt 9060

BUSHING -rod crank

$

$

Currently unavailable

39

Troy-Bilt 20719

ROD CRANK

$

$

Currently unavailable

40

Troy-Bilt 20532

BUSHING- bellcrank
(Superseded to GW-20532)

$7.99

$

Usually ships in 3-6 days

0

41

Troy-Bilt 9704

BOLT-hex head, 5/16"-18 x 1"

$

$

Currently unavailable
