5151 - Troy-Bilt Pony V Rear-Tine Tiller (SN: Original) Handlebars & Mounting Bracket - & Control Levers Parts Diagram

Pony V Rear-Tine Tiller

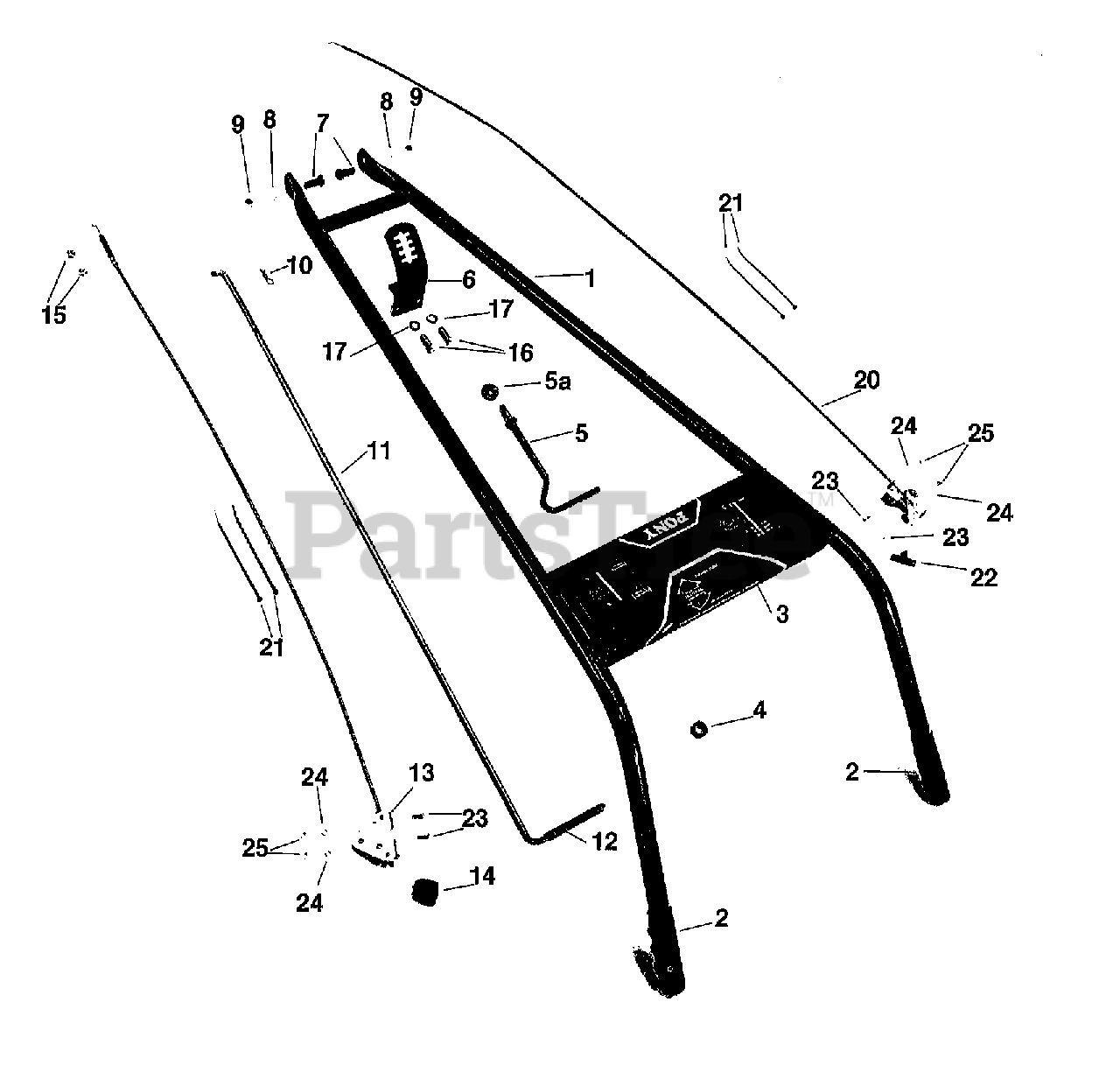

Handlebars & Mounting Bracket - & Control Levers Parts Diagram

  • Title

1

Troy-Bilt 20736

HANDLEBARS-

Note: (incl. Index No.'s 2, 3, 4, 5, 5A)

$

$

Currently unavailable

2

Troy-Bilt 9117

GRIP-handlebars

$

$

Currently unavailable

3

Troy-Bilt 20734

DECAL- for operator control panel

$

$

Currently unavailable

4

Troy-Bilt 9211

GROMMET- plastic (part of operator control panel)

$

$

Currently unavailable

5

MTD 20703

STUD-regulates handlebar height adjustment

$

$

Not available

5A

Troy-Bilt 9955

WASHER- keyed,
(Superseded to 736-04445)

Note: used with stud above

$3.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 20753

BRACKET- handlebar height adjustment

$

$

Currently unavailable

7

Troy-Bilt 9711

BOLT-hex head, 3/8"-16 x 1", Grade 5

Note: (to attach handlebars to tabs on transmission top cover)

$

$

Currently unavailable

8

Troy-Bilt 9904

WASHER -plain(flat), 3/8",S.A.E.(handlebar attachment)
(Superseded to 736-3050)

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 9837

LOCKNUT-hex, 3/8"-16 (handlebar attachment)
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 9338

HITCH PIN-(connects Forward-Neutral-Reverse Lever to the shift mechanism)
(Superseded to 714-04048)

$7.49

$

In Stock, only 3 left!

0

11

Troy-Bilt 20786

FORWARD-NEUTRAL-REVERSE LEVER -complete

Note: (incl. grip, #9198)

$

$

Currently unavailable

12

Troy-Bilt 9198

GRIP-Forward-Neutral-Reverse Lever

$

$

Currently unavailable

13

Troy-Bilt 10357

WHEEL DRIVE CONTROL & CABLE ASSY -

Note: complete, including Index No.'s 14, 15, 21, 23, 24,25

$

$

Currently unavailable

14

Troy-Bilt 9057

KNOB -Wheel Drive Control Lever
(Superseded to GW-9057)

$7.99

$

In Stock, only 1 left!

0

15

Troy-Bilt 9826

NUT-hex, 5/16"-24, wheel drive cable adjustment

$

$

Currently unavailable

16

Troy-Bilt 9709

BOLT-hex head, 3/8"-16 x 3/4"

Note: (to attach handlebar height adjustment bracket to transmission top cover)

$

$

Currently unavailable

17

Troy-Bilt 9913

LOCKWASHER-3/8"

Note: (to attach handlebar height adjustment bracket to transmission top cover)

$

$

Currently unavailable

20

Troy-Bilt 9191

THROTTLE CONTROL & CABLE-complete,

Note: including Index 22 (Index No.'s 23, 24, & 25 not included)

$

$

Currently unavailable

21

Troy-Bilt 9202

TIES-plastic (to secure cables to handlebars)
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0

22

Troy-Bilt 9212

KNOB- throttle control lever
(Superseded to 731-0108)

$8.99

$

In Stock, Qty 9

0

23

Troy-Bilt 9722

SCREW-round head, No. 10-32 x 1/2"

$

$

Currently unavailable

24

Troy-Bilt 9909

LOCKWASHER-No.10

$

$

Currently unavailable

25

Troy-Bilt 9809

NUT-hex, No. 10-32

$

$

Currently unavailable
