515157 - Ariens Steering Control Kit Mini- Zoom Steering Kit Parts Diagram

Steering Control Kit

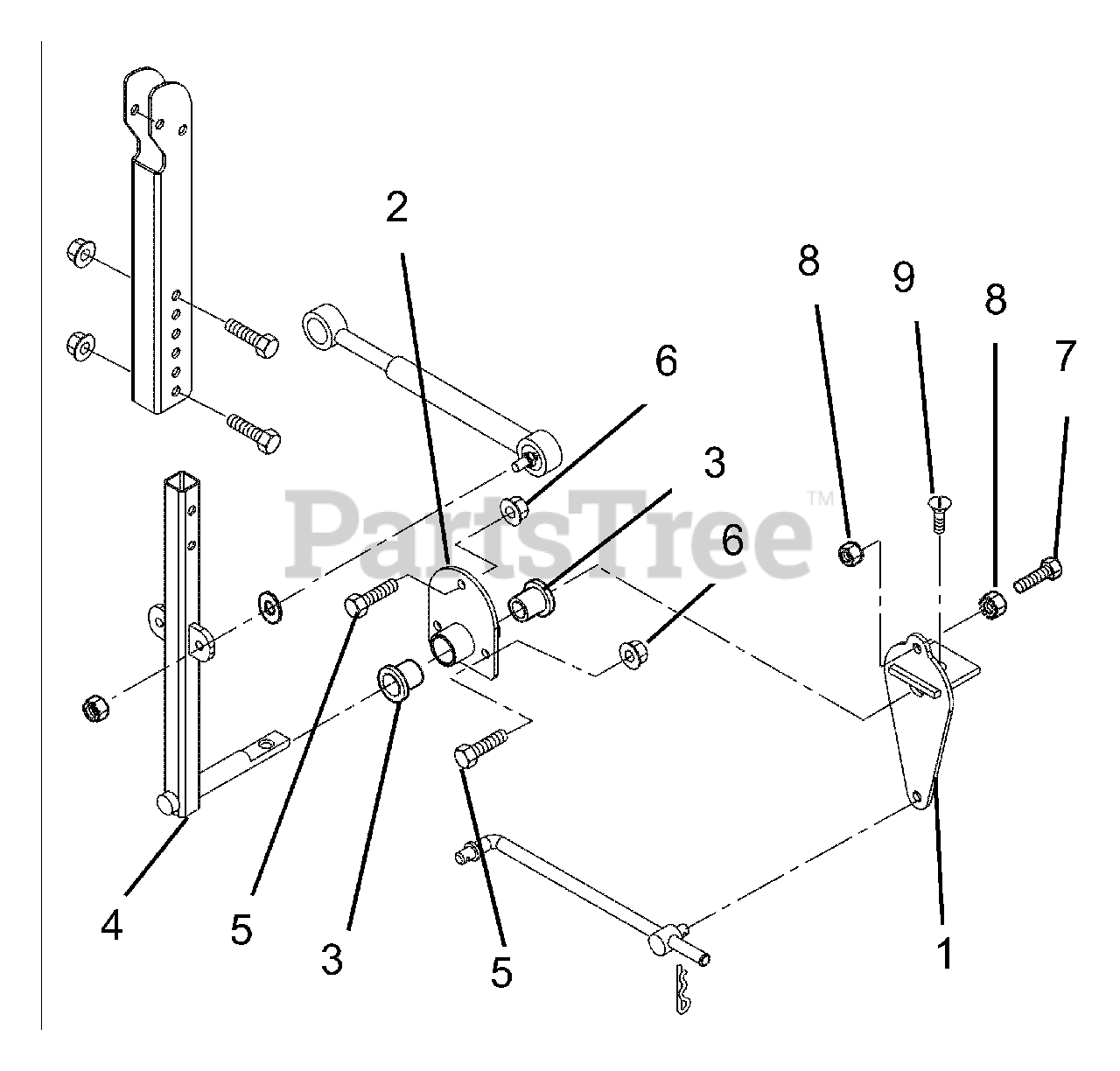

Mini- Zoom Steering Kit Parts Diagram

  • Title

1

Ariens 00436851

WMT, CONTROL LINK

$

$

Not available

2

Ariens 00437851

WMT, STEERING BUSHING

$

$

Not available

3

Ariens 01591100

BUSHING-1"X.75"X1"

$9.99

$

Usually ships in 4-12 days

0

4

Ariens 00437051

WMT, CONTROL ARM

$

$

Not available

5

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 16

0

6

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 05958300

BLT-HEX .38-16X3.00 GR5 FTH YZ
(Superseded to 05901815)

$3.49

$

In Stock, only 1 left!

0

8

Ariens 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 05900018

BOLT, 3/8-16X1 FSHCS PLN

$

$

Not available
