51539 (600) - Toro Air Rake Blower (SN: 099000001 - 099999999) (1999) BLOWER ASSEMBLY Parts Diagram

Air Rake Blower

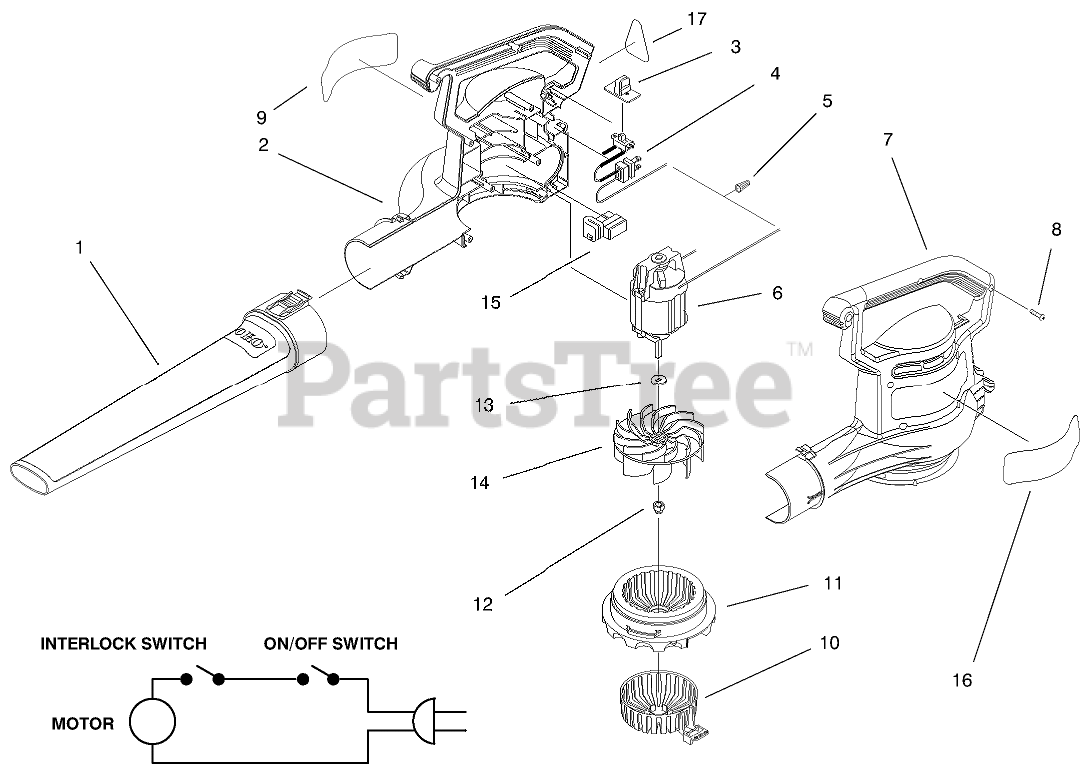

BLOWER ASSEMBLY Parts Diagram

  • Title

1

Toro 93-0571

TUBE - BLOWER SHORT

$

$

Not available

2

Toro 93-0562

HOUSING, RH (RED)

$61.99

$

Usually ships in 3-6 days

0

3

Toro 93-0565

COVER-SWITCH

$

$

Not available

4

Toro 93-0578

HARNESS ASSEMBLY

$

$

Not available

5

Toro 73-6570

CONNECTOR-NUT, WIRE

$1.49

$

In Stock, only 2 left!

0

6

Toro 93-0577

MOTOR, ES-40, MID-BLOWER

$

$

Not available

7

Toro 93-0560

HOUSING, LH (RED)

$61.99

$

Usually ships in 3-6 days

0

8

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

9

Toro 93-0589

DECAL, LOGO, AIR RAKE

$

$

Not available

10

Toro 93-0570

CHOKE - AIR, GREY

$

$

Not available

11

Toro 93-0569

COVER - INLET, W/HOLE

$9.99

$

In Stock, only 1 left!

0

12

Toro 73-5380

NUT-HEX
(Superseded to 114-9015)

$2.99

$

In Stock, Qty 20+

0

13

Toro 93-0585

WASHER

$1.49

$

In Stock, Qty 8

0

14

Toro 93-0564

IMPELLER, BLOWER

$

$

Not available

15

Toro 93-0567

SWITCH, INTERLOCK

$

$

Not available

16

Toro 93-7697

Decal-Warning

$

$

Currently unavailable

17

Toro 95-5106

DECAL - INFORMATION

$

$

Not available

Toro 51541

Vacuum Bag Kit (Optional)

Note: Order from Whole Goods

$

$

Currently unavailable

Toro 51541

Vacuum Bag Kit (Optional)

Note: Not illustrated

$

$

Currently unavailable
