51555 (710) - Lawn-Boy String Trimmer, Electric (SN: 008000001 - 008999999) (1988) MOTOR HOUSING ASSEMBLY Parts Diagram

String Trimmer, Electric

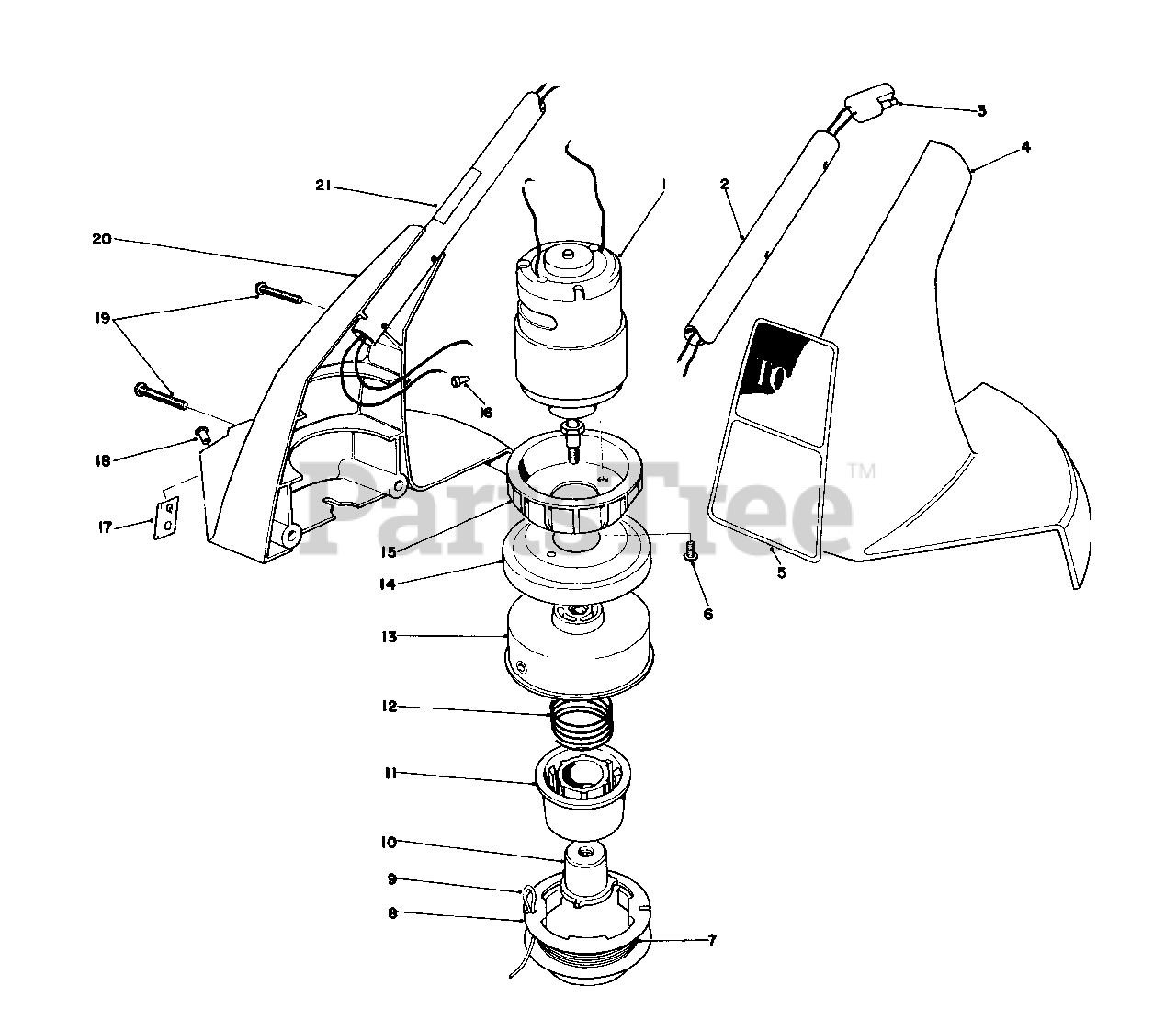

MOTOR HOUSING ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 62-3170

Motor

$

$

Not available

2

Lawn-Boy 33-6660

Tube

$

$

Not available

3

Lawn-Boy 33-6720

Lower Wiring Harness

$

$

Not available

4

Lawn-Boy 33-6560

Left Hand Housing

$

$

Not available

5

Lawn-Boy 64-2380

Decal-CL-710
(Superseded to 73-1200)

$

$

Not available

6

Lawn-Boy 64-6470

Screw

$

$

Not available

7

Lawn-Boy 88075

12 ft. .050 dia. Cutting Line Prewound on Spool

$4.92

$

In Stock, Qty 6

0

8

Lawn-Boy 34-9870

Empty Spool

$13.99

$

In Stock, only 1 left!

0

9

Lawn-Boy 88011

30 ft. of .050 dia. Cutting Line in Coil

$

$

Not available

10

Lawn-Boy 33-9720

Driver

$

$

Not available

11

Lawn-Boy 29-8120

Core

$29.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 34-9860

Spring
(Superseded to 29-8230)

$8.99

$

In Stock, only 2 left!

0

13

Lawn-Boy 33-9760

Drum w/Eyelet

$

$

Not available

14

Lawn-Boy 33-9730

Drum Cup

$

$

Not available

15

Lawn-Boy 33-9740

Heat Sink Casting

$

$

Not available

16

Lawn-Boy 218-511

Wire Connector

$

$

Not available

17

Knife Blade

$

$

Not available

18

Rivet

$

$

Not available

19

Lawn-Boy 32104-123

Screw

$

$

Not available

20

Lawn-Boy 33-6760

R.H. Motor Housing (Incl. Ref. #17 & 18)

$

$

Not available

21

Lawn-Boy 34-3270

Decal-Serial Replacement

$

$

Not available

Lawn-Boy 34-1160

Loose Parts

Note: Not Illustrated.

$

$

Not available
