51556 - Lawn-Boy 7" String Trimmer, Cordless (SN: 049000001 - 049999999) (1994) MOTOR HOUSING ASSEMBLY Parts Diagram

7" String Trimmer, Cordless

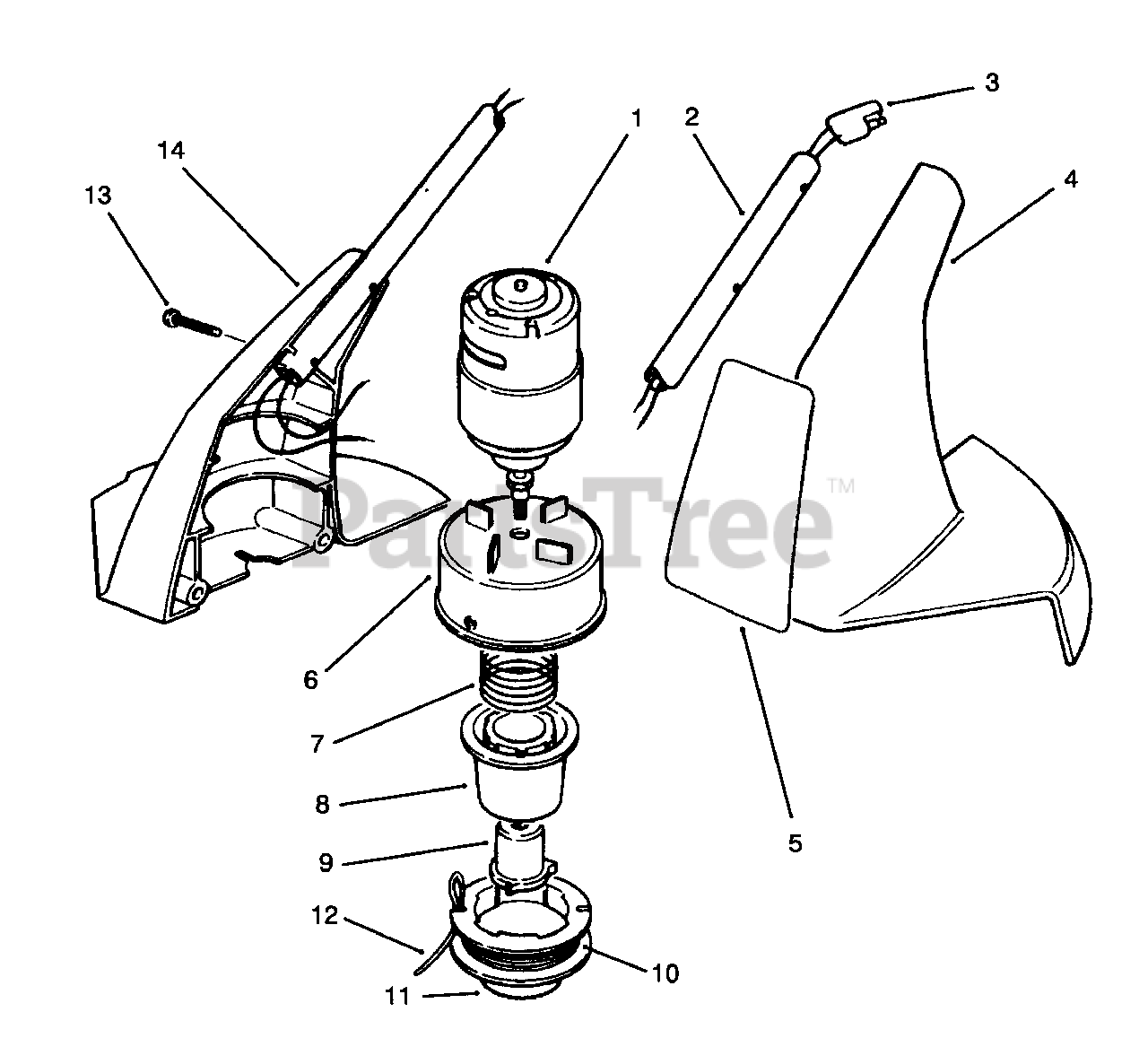

MOTOR HOUSING ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 62-3172

Motor
(Superseded to 73-6770)

$

$

Not available

2

Lawn-Boy 73-5350

Extension-Handle

$

$

Not available

3

Lawn-Boy 73-5540

Wiring Harness-Lower

$

$

Not available

4

Lawn-Boy 73-6750

Housing-Motor L.H.

$

$

Not available

5

Lawn-Boy 73-9190

Decal-7"

$3.49

$

Usually ships in 3-6 days

0

6

Lawn-Boy 73-5280

Drum w/Eyelet

$

$

Not available

7

Lawn-Boy 29-8230

Spring

$10.99

$

In Stock, only 2 left!

0

8

Lawn-Boy 29-8120

Core

$37.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 33-9720

Driver

$

$

Not available

10

Lawn-Boy 34-9830

Line-Cutting 12'.050 Dia. Prewound Spool(Incl. Ref. #11)
(Superseded to 88075)

$20.99

$

In Stock, only 3 left!

0

Lawn-Boy 88075

Line-Cutting 12'.050 Dia. Prewound Spool(Whole Goods)

Note: Not Illustrated

$20.99

$

In Stock, only 3 left!

0

11

Lawn-Boy 34-9870

Spool-Empty

$18.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 34-3880

Line-Cutting 30'.050 Dia. in Coil
(Superseded to 88011)

$

$

Not available

Lawn-Boy 88011

Line-Cutting 30.050 Dia. in Coil (Whole Goods)

Note: Not Illustrated

$

$

Not available

13

Lawn-Boy 32104-123

Screw

$

$

Not available

14

Lawn-Boy 33-6764

Housing-Motor R.H.

$

$

Not available
