51556 - Toro 7" String Trimmer, Cordless (SN: 220000001 - 220999999) (2002) TRIMMER ASSEMBLY Parts Diagram

7" String Trimmer, Cordless

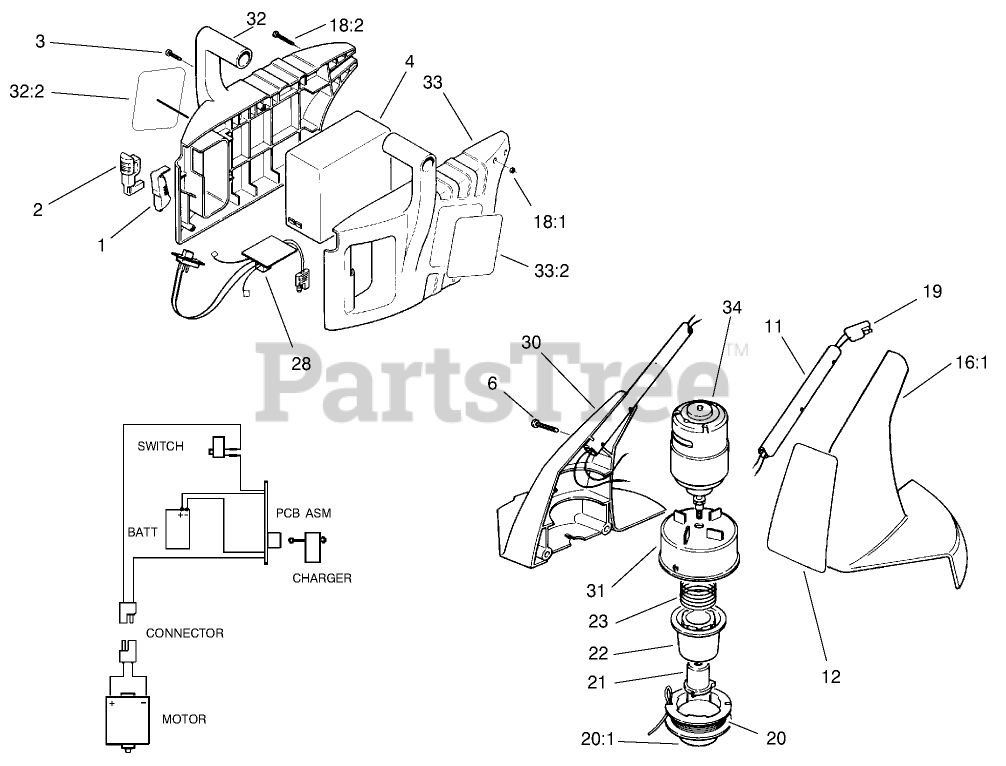

TRIMMER ASSEMBLY Parts Diagram

  • Title

1

Toro 100-9744

TRIGGER

$

$

Not available

2

Toro 100-9745

LOCK-TRIGGER

$

$

Not available

3

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

4

Toro 33-6650

BATTERY

$

$

Not available

6

Toro 32104-123

SCREW-PLASTITE

$

$

Not available

11

Toro 73-5350

HANDLE-EXTENSION

$31.99

$

Usually ships in 3-6 days

0

12

Toro 100-9740

DECAL-HOUSING

$4.99

$

Usually ships in 3-6 days

0

16:1

Toro 100-9732

HOUSING-LH
(Superseded to 100-9730)

$

$

Not available

18:1

Toro 3217-44

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

18:2

Toro 3250-47

SCREW-PPH

$

$

Not available

18

Toro 100-1209

Loose Parts Bag

Note: Not illustrated

$

$

Not available

19

Toro 73-5540

WIRING HARNESS-LOWER

$

$

Not available

20

Toro 34-9830

Spool-Prewound
(Superseded to 88075)

$4.92

$

In Stock, Qty 6

0

20:1

Toro 34-9870

CAP-SPOOL

$13.99

$

In Stock, only 1 left!

0

21

Toro 33-9720

DRIVER

$

$

Not available

22

Toro 29-8120

CORE - SPOOL

$29.99

$

Usually ships in 3-6 days

0

23

Toro 29-8230

SPRING-COMPRESSION

$8.99

$

In Stock, only 2 left!

0

28

Toro 94-4358

PCB ASM

$35.99

$

Usually ships in 3-6 days

0

29

Toro 73-5410

Charger-Battery
(Superseded to 104-2542)

Note: Not illustrated

$36.99

$

Usually ships in 3-6 days

0

30

Toro 100-9739

HOUSING ASM-RH

$

$

Not available

31

Toro 73-5280

DRUM ASM-4 BLADE

$26.99

$

Usually ships in 3-6 days

0

32

Toro 100-9741

BATTERY CASE ASM-LH

$

$

Not available

32:2

Toro 100-9738

DECAL-WARNING

$

$

Not available

33

Toro 100-9742

BATTERY CASE ASM-RH

$

$

Not available

33:2

Toro 100-9737

DECAL-BATTERY CASE

$

$

Not available

34

Toro 62-3172

MOTOR ASM
(Superseded to 73-6770)

$

$

Not available
